Tru-Test SRS2 Service Manual

XRS2 and SRS2 EID Stick Reader
Issue 5, 03/2018
44
4 Ensure that the wire loom has been tucked behind retention ribs.

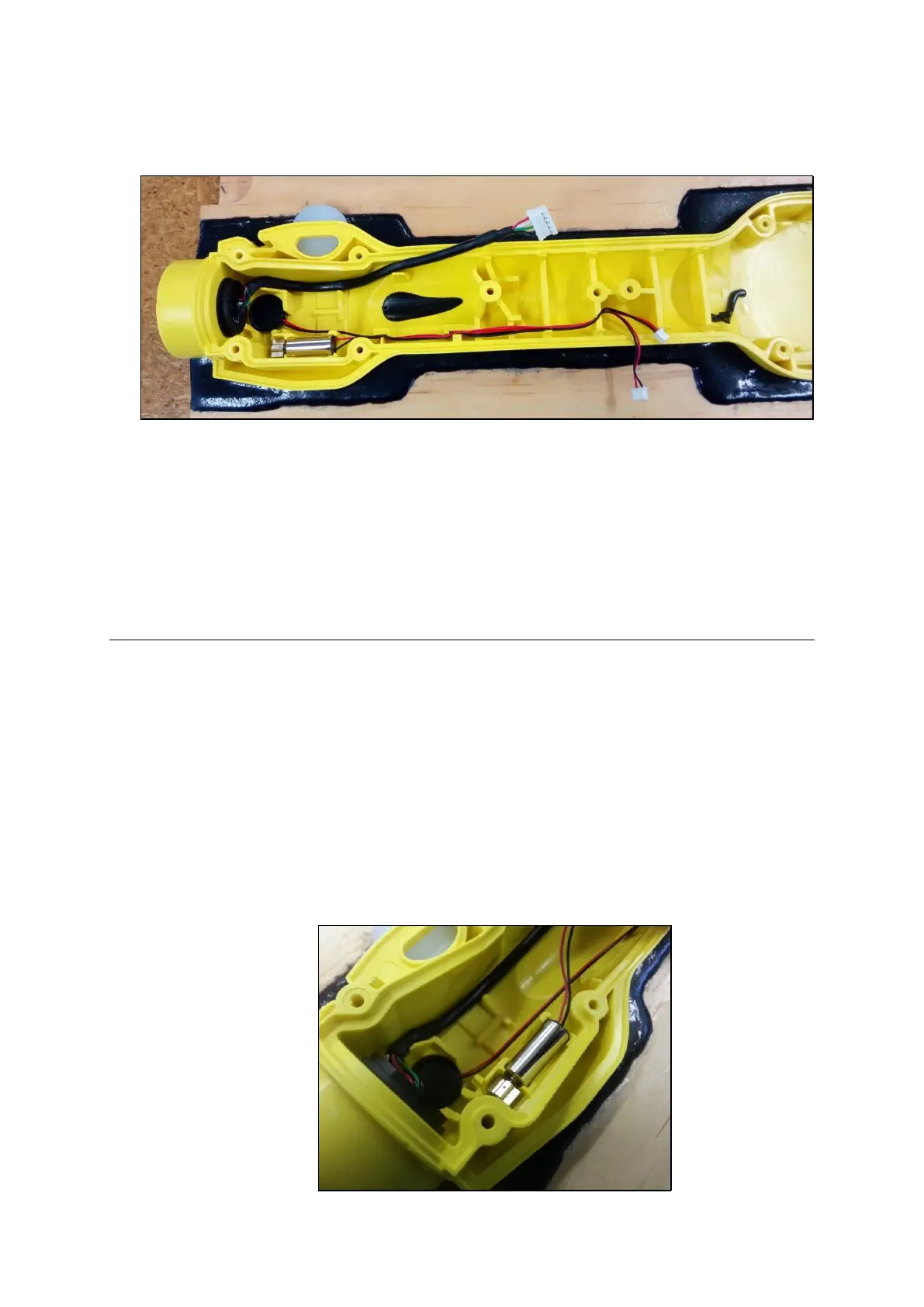

Wire looms tucked behind retention tabs:
5 R
efit the counterweight.
6 Refit the main battery. See page 36.
7 Refit the antenna assembly. See page 36.
8 Close the case. See page 31.
Replacing the vibration motor
To replace the vibration motor:
1 Open the case. See page 30.
2 Remove the antenna assembly. See page 36.
3 Remove the main module. See page 37.
4 Remove the main battery, see page 36.
5 Remove the counterweight.
6 Fit vibration motor into the allocated area.
Vibration motor placement:
