17
Checks
– Check the installation, wiring and connections for damage
at regular intervals. The drive assemblies must be able to
move freely and be returned automatically to the safe idle
position when they are disengaged. If this is not the case,
check the drive assemblies for dirt or corrosion on their
guides and clean them if necessary to ensure they can
move properly.
– After a prolonged period of non-use (e.g. overwintering),
check that all motors respond correctly to commands from
the remote control.
– At least every 2 years, an expert must check the
Mover®XT L for rust, check that detachable parts are firmly
attached and check that all safety-related parts are in good
working order.
Emergency disengagement
If the caravan battery is discharged to the extent that electri-
cal disengagement no longer works, or if a defect is present,
disengagement can also be performed manually.

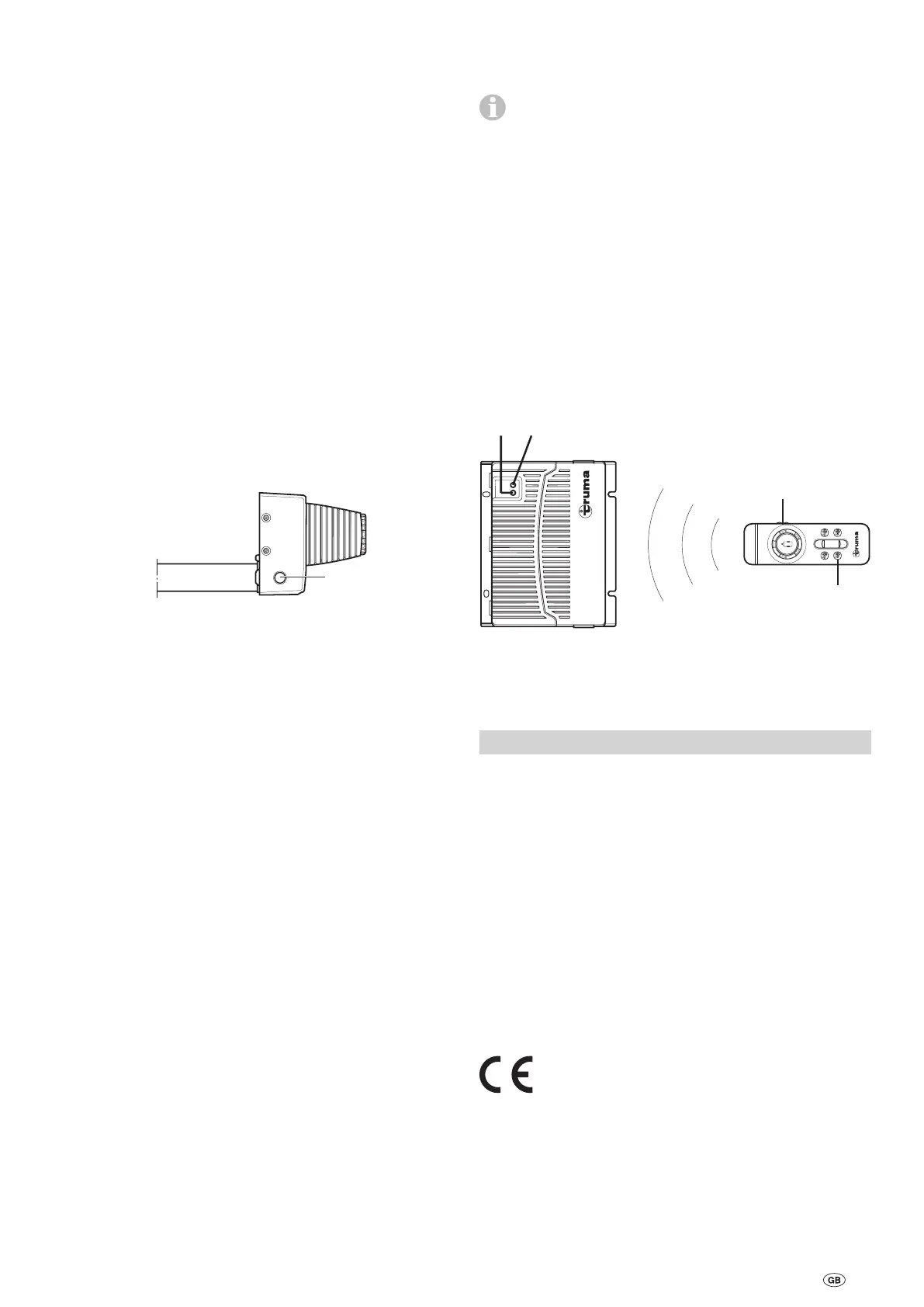

Prise out the plastic cap (m) at the rear end of the cover using a
screwdriver. Attach socket wrench (WAF 7 – included in scope
of delivery) to hex bolt and disengage drive assembly by rotat-
ing anticlockwise. Repeat procedure at opposite side.
m
Fig. 4
Once the battery has been charged, the rollers can be
engaged electrically again.
Troubleshooting
Check that the batteries in the remote handset are in immacu-
late condition!
Check whether the caravan plug has been plugged into the
safety socket!
Check whether the caravan battery is in immaculate condition
and is fully charged! Please note that battery performance can
deteriorate considerably at cold ambient temperatures.
Check that the fuse in the battery connector cable is in order.
If the fuse is defective, check the connector cable for possible
short circuits.
In the event of a system error (remote control LED 3 illuminates
in red) apply the handbrake, switch the remote control off, and
switch it back on again after 2 seconds!
Perform a reset with the handbrake applied, which takes ap-
prox. 10 seconds (briefly disconnect battery or disconnect and
reconnect safety plug)!
If these actions do not remedy the problem, please contact
Truma Service.
Tuning the electronic control unit to the radio
remote control
The remote control and the control unit are tuned to
each other in the factory.
If the control unit or the remote control is replaced, they must
be tuned to each other again in accordance with the instruc-
tions below.
Check that installation has been carried out in accordance
with the installation instructions, and make sure that the drive
rollers are not engaged. Check that the battery is properly
connected and in good condition, and that the control unit is
being supplied with 12 V. Make sure that the caravan connec-
tor is plugged into the safety socket.
Switch off remote control.
Press and hold the reset button (k) on the control unit
(redLED – j – flashes slowly), and after approx. 5 sec the
LED(j) flashes rapidly. Then release the reset button and
within 10sec press and hold button (c) – Engage – on the re-
mote control and switch on the remote control using the slide
switch (a). Release button (c).
c
a
Fig. 5
The remote control and the control unit are now tuned to each
other. Once tuning is complete, the red LED (j) comes on and
stays on.
Technical data
Operating voltage
12 V DC
Power consumption
on average approx. 28 A up to a maximum of 150 A
Quiescent current consumption
< 80 mA (with plug inserted)
< 150 µA (with plug removed)
Radio frequency
Class 2, 868 MHz
Speed
approximately 17 cm per second
(depending on weight and incline)
Weight
approx. 28 kg
Positive line fuse
150 A
Mover®XT L range of use
single-axle caravans with a gross weight of up to 1500 kg
Right reserved to make technical changes!
