TSC ME240 User Manual

70
5.3 Using Ethernet interface to setup Ethernet interface
1. Connect the computer and the printer to the LAN.
2. Turn on the printer power.

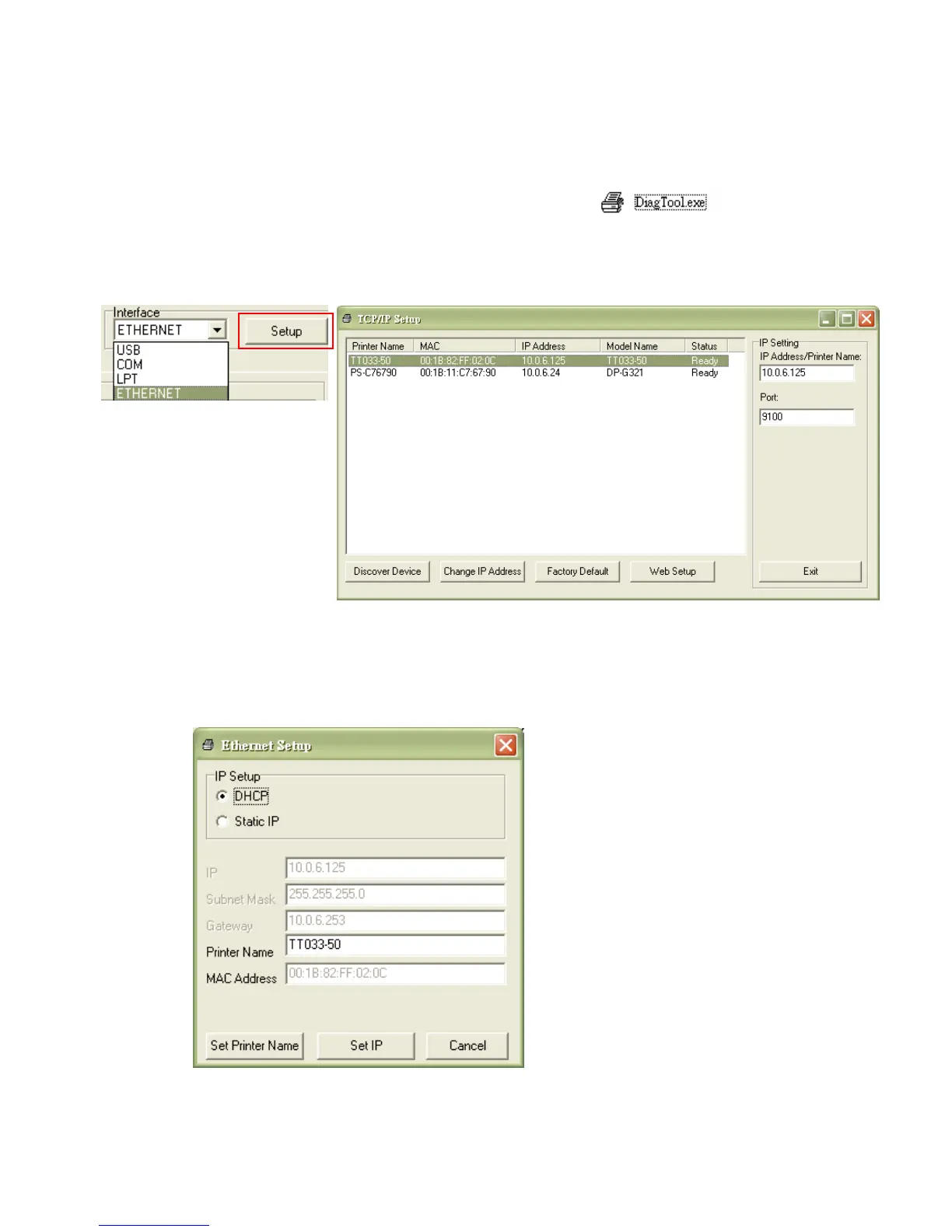

3. Start the Diagnostic Utility by double clicks on the icon.
Note: This utility works with printer firmware V6.00 and later versions.
4. Select “Ethernet” as the interface then click on the “Setup” button to setup the IP address,
subnet mask and gateway for the on board Ethernet.
5. Click the “Discover Device” button to explore the printers that exist on the network.
6. Select the printer in the left side of listed printers, the correspondent IP address will be
shown in the right side “IP address/Printer Name” field.
7. Click “Change IP Address” to configure the IP address obtained by DHCP or static.

TSC ME240 Specifications

General

Resolution	203 dpi / 300 dpi
Operating Temperature	5°C to 40°C (41°F to 104°F)
Print Method	Thermal Transfer & Direct Thermal
Interface	USB
Power Supply	AC 100-240V, 50/60Hz
Humidity	20% to 85% RH (non-condensing)
