10
TTP-244M Pro/244ME Pro
TTP-342M Pro/342ME Pro
Bar Code Printer Service Manual
1.6 Various Sensors and Switches

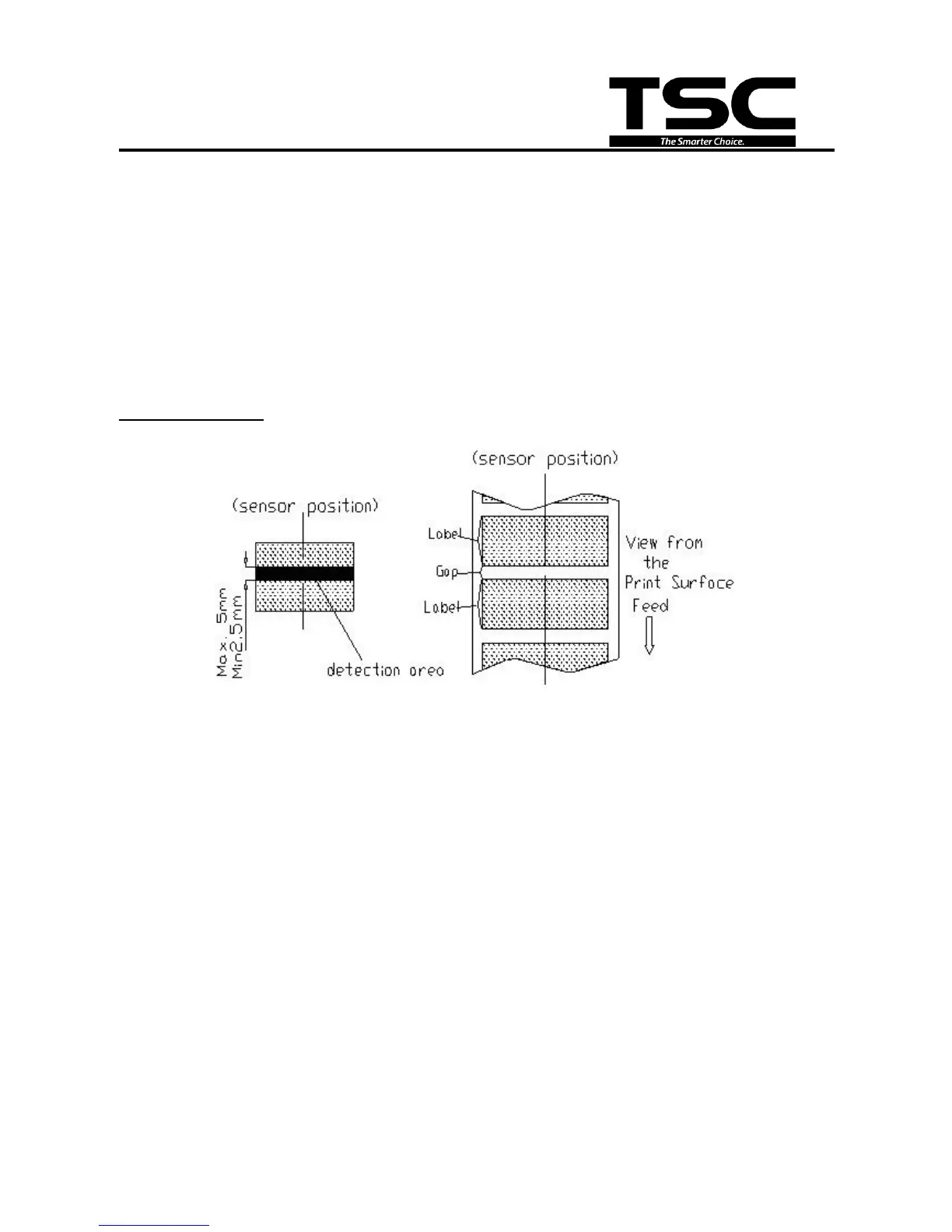

1. Feed Gap Sensor
The feed gap sensor detects the label/ticket gap to locate the position. The
sensor is set to detect gaps along the center line of the label/ticket roll width
across the length of the media.
In case of Label
