TSC TTP-244M Pro Service Manual

31
TTP-244M Pro/244ME Pro
TTP-342M Pro/342ME Pro
Bar Code Printer Service Manual
8. Tidy the cable so as not to interfere with the ribbon.
9. Assemble the detached parts in reverse order of the steps above.
Note:
Connector lock is to face up
Do not touch printhead elements
Do not tear printhead apart
4.3-2 Replacement of Printhead (For KYOCERA )

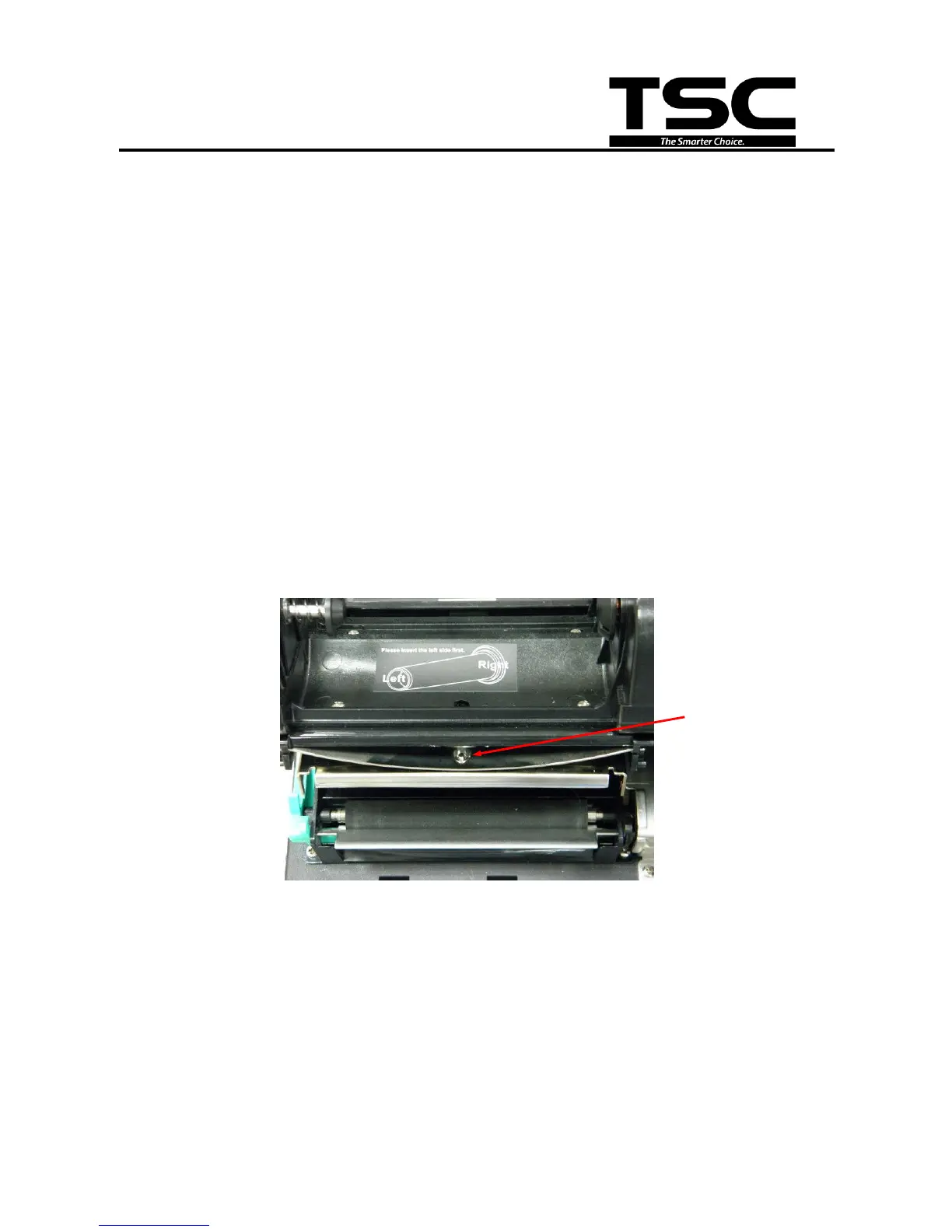

1. Remove the e-ring at the mechanism.
E-ring
