TSC TTP-244M Pro Service Manual

28
TTP-244M Pro/244ME Pro
TTP-342M Pro/342ME Pro
Bar Code Printer Service Manual
4.2 The peel-off module sensor installation (Option)
1. Turn off the printer power.
2. Open the top cover.
3. Disconnect the gap sensor power connector below the carriage, detach the
front panel.
4. Loosen the screws on the front panel and take it off.

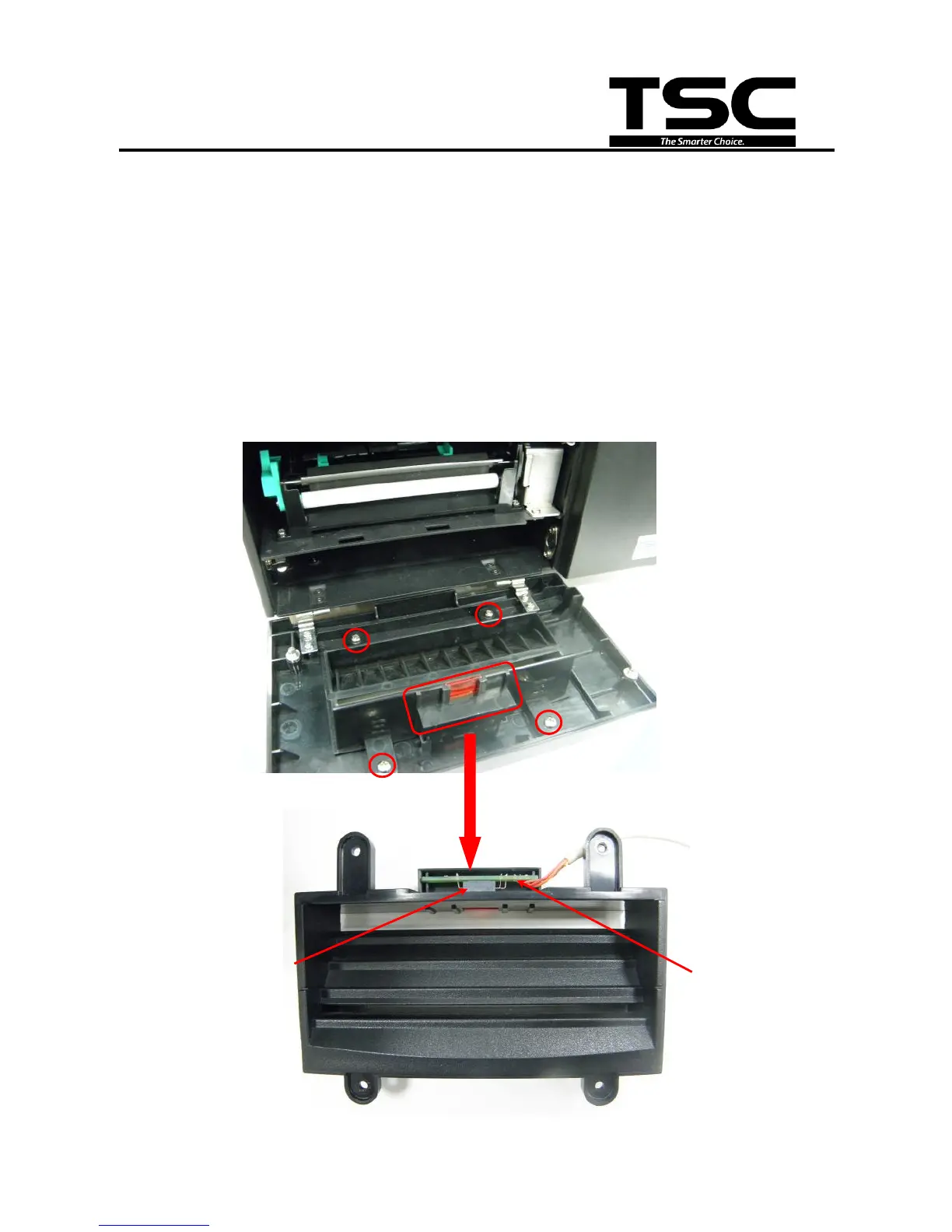

Peel-off sensor
assembly
The peel-off sensor
launcher and receiver
