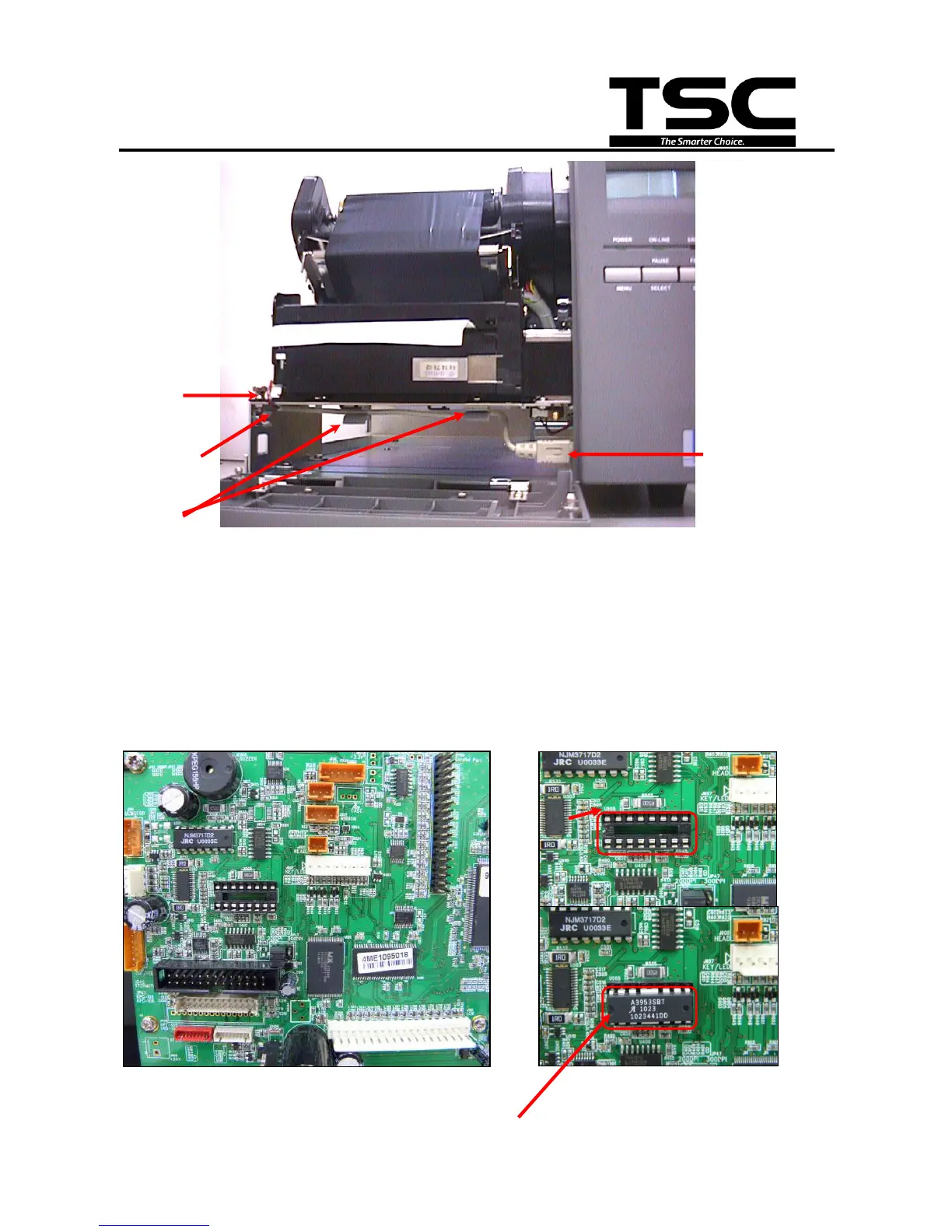

7. Refer to section 3.3 to disconnect all connectors on the mainboard.
8. Install the cutter driver IC which is attached to the package of cutter module
at U505 on the main board.
9. Assemble the parts in the reverse order of that of disassembling.
Screw
Power
Connector
Power Cord
Cord Clips
The hole must be at the
left side.
