TTP-244M Pro/244ME Pro
TTP-342M Pro/342ME Pro
Bar Code Printer Service Manual
4.9 Platen Replacement

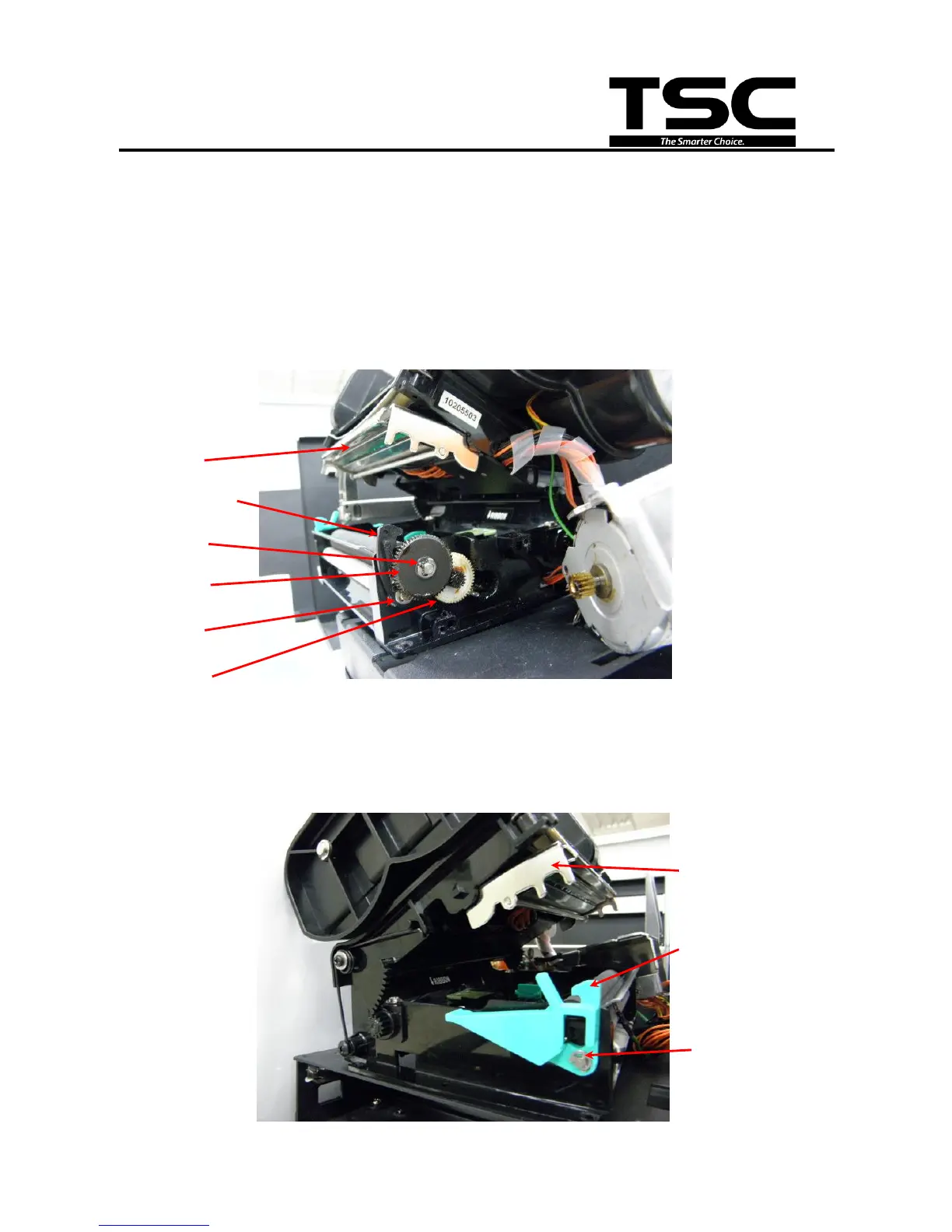

1. Follow the instructions in Section 4.4 to remove the stepping motor.
2. Loosen the E-ring 1 to remove the 2 gears.
3. Lossen the E-ring 2 to remove the release lever arm.
4. Remove the E-ring and the mechanism release lever on the left side of the
mechanism.
Printhead
Release lever arm
Gear 1
Gear 2
E-ring 1
E-ring 2
Mechanism
Release Lever
E-ring
Printhead Bracket
