TSC TTP-244M Pro Service Manual

43
TTP-244M Pro/244ME Pro
TTP-342M Pro/342ME Pro
Bar Code Printer Service Manual

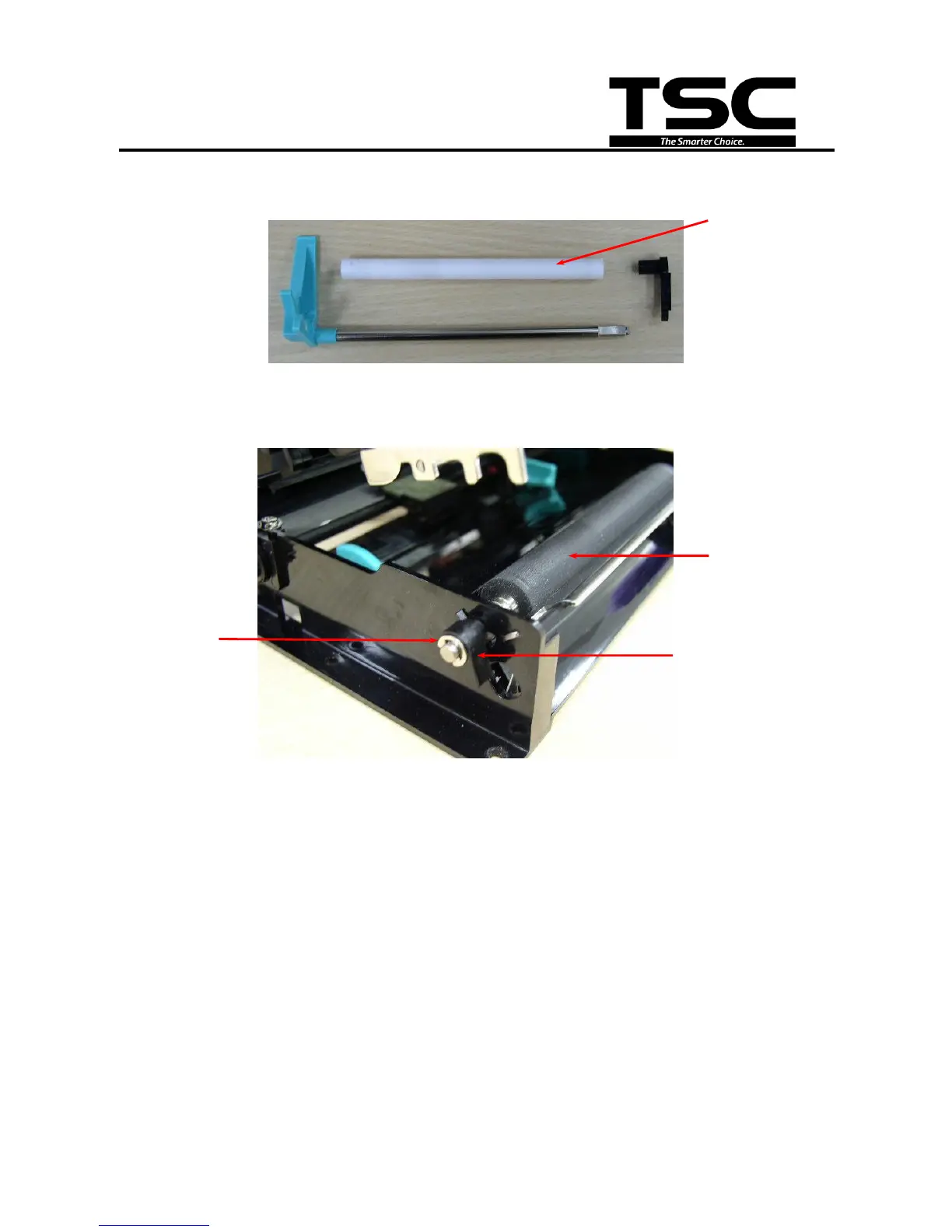

5. Remove the teflon and stripper rod.
6. Remove the E-ring, the right side and left side platen bushes.
7. Move the platen to the right of the mechanism.
8. Replace the platen and reassemble the removed parts in the reverse order
of removal.
Teflon Tube
Platen bush (Left side)
E-ring
Platen
