3.5 Replacement of the LCD Display
1. Refer to section 3.3 to detach the lateral cover.
2. Disconnect the connector to the LCD display.

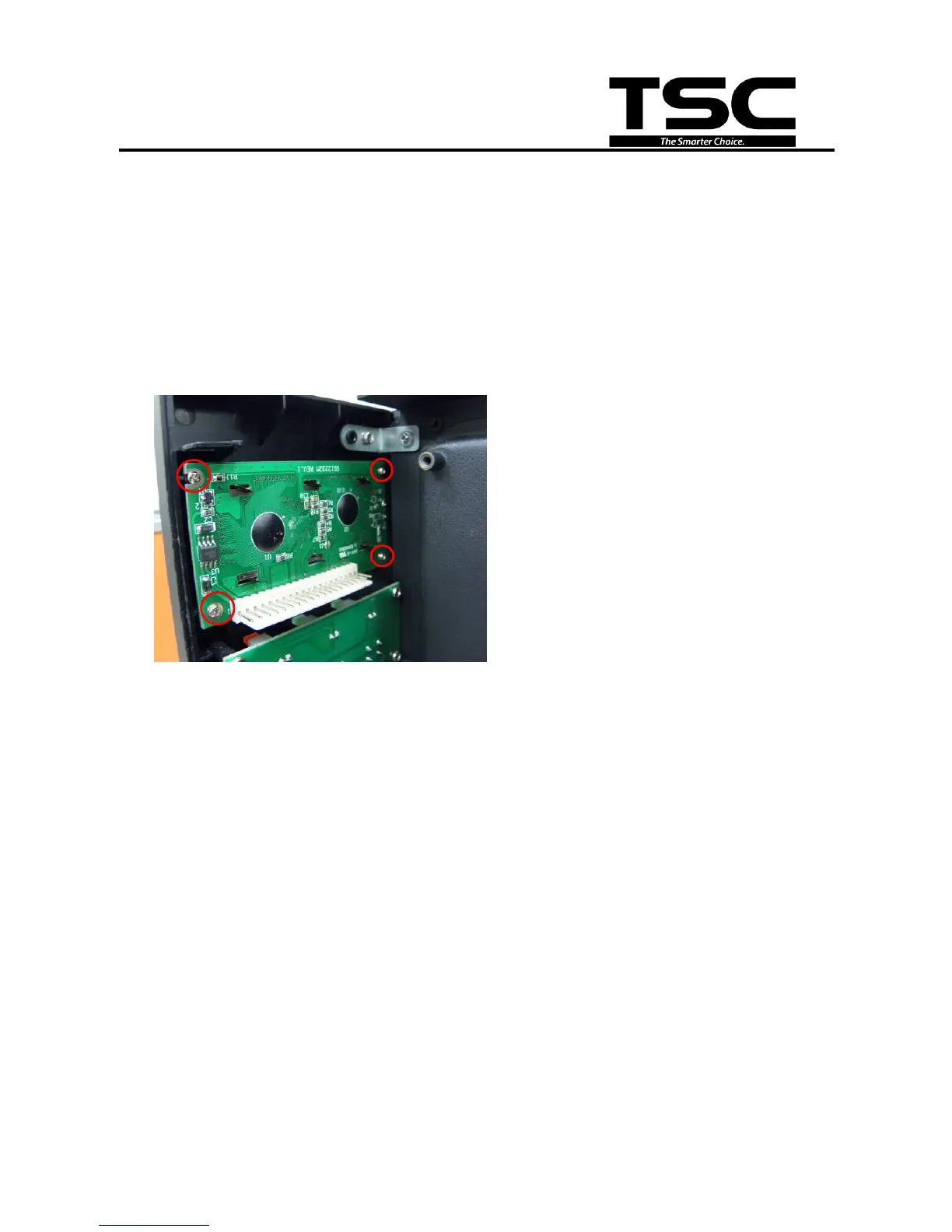

3. Unfasten the 4 fixing screws on the LCD display.
4. Replace with the new LCD display.
5. Assemble the parts in the reverse order of that of disassembling.
