TSC TTP-244M Pro Service Manual

24
TTP-244M Pro/244ME Pro
TTP-342M Pro/342ME Pro
Bar Code Printer Service Manual
3.6 Replacement of the Keypad Board
1. Refer to section 3.3 to detach the lateral cover.
2. Disconnect the connector to the keypad board.

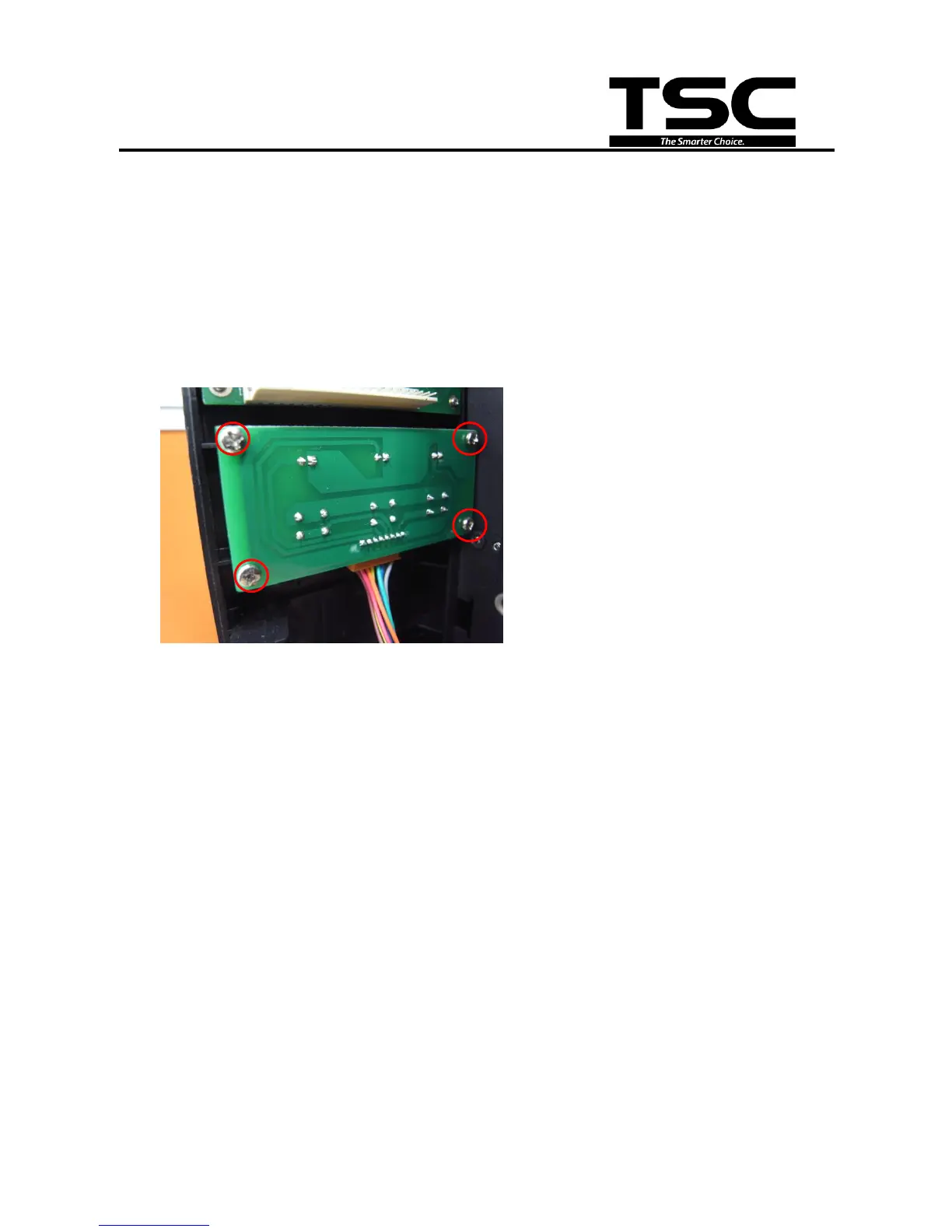

3. Unfasten the 4 fixing screws on the keypad board.
4. Replace with the new keypad board.
5. Assemble the parts in the reverse order of that of disassembling.
