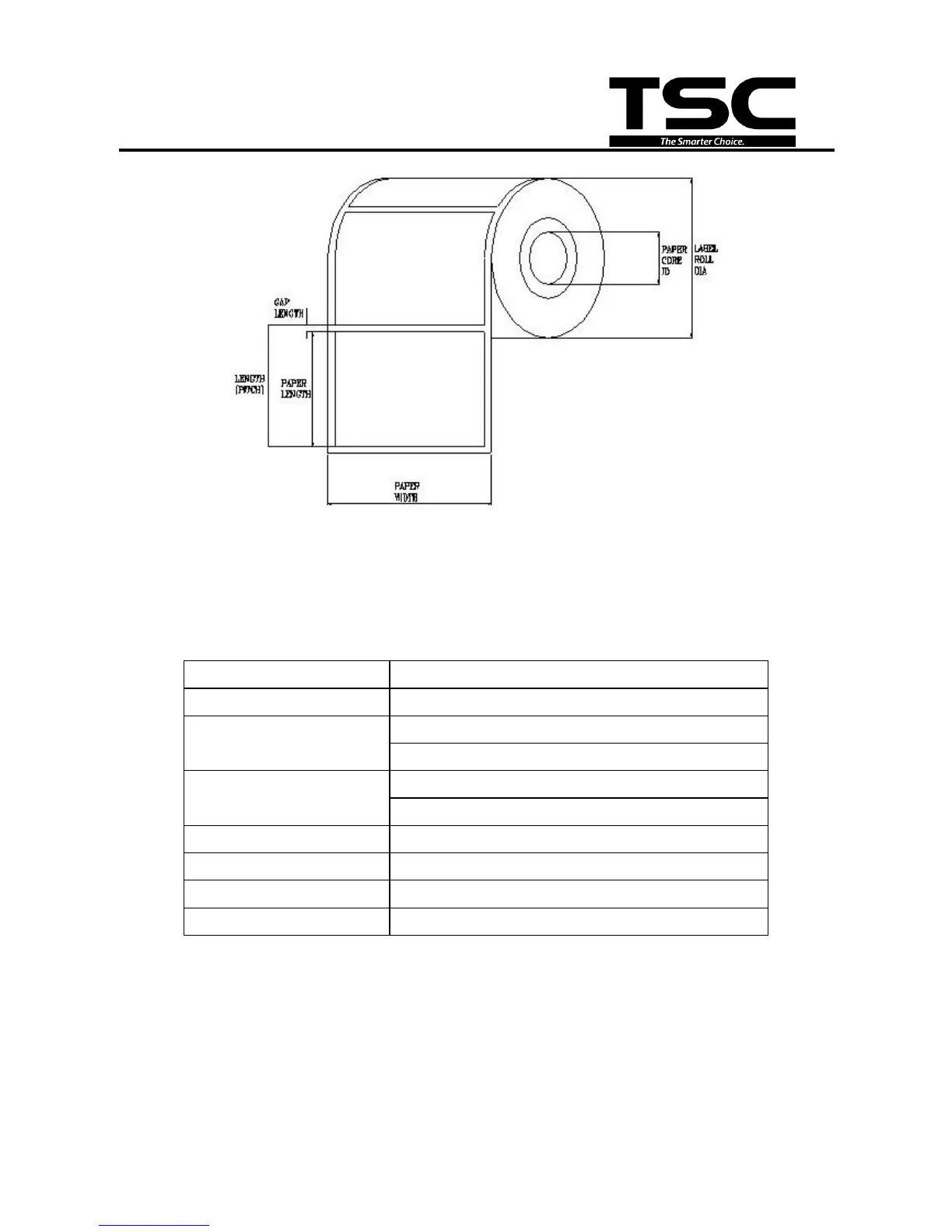

2.3 Ribbon Sizes and Shapes
Item
Specifications
Ribbon shape
Spool type
Ribbon width
Max. 110 mm
Min. 25.4 mm
Ribbon winding width
Max. 110 mm
Min. 25.4 mm
Leader tape
Polyester film, 3355 mm long
End tape
Polyester film (transparent), 2505 mm long
Max. ribbon OD.
67 mm
Winding method
Ink surface wound outside
Note: The Max. length of ribbon depends on its core outside diameter
and thickness.
This formula below defines the correlation between ribbon roll length and
ribbon core diameter:
