2. Remove the screws.
3. Replace the print head.
4. Reassemble the removed parts in the reverse order of removal.
Note:
1. Tidy up the cable so that it does not protrude or interfere with the
ribbon.
2. Do not touch the elements of the print head.
3. Do not disassemble the print head.

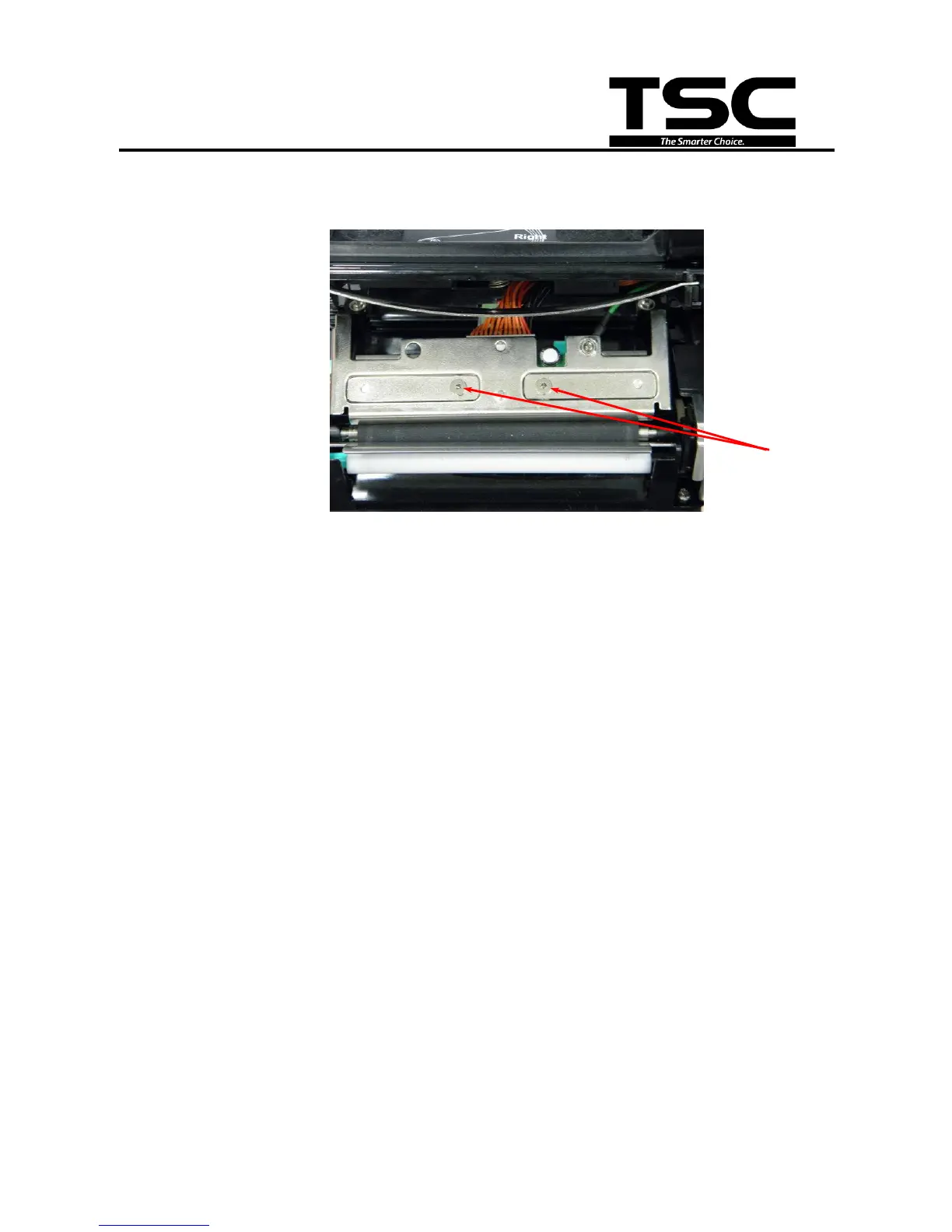

Screws
