TSC TTP-244M Pro Service Manual

34
TTP-244M Pro/244ME Pro
TTP-342M Pro/342ME Pro
Bar Code Printer Service Manual
9. Detach the ground wire on the mainboard.
10. Disconnect all mechanism connectors from mainboard.
11. Take out the mechanism.

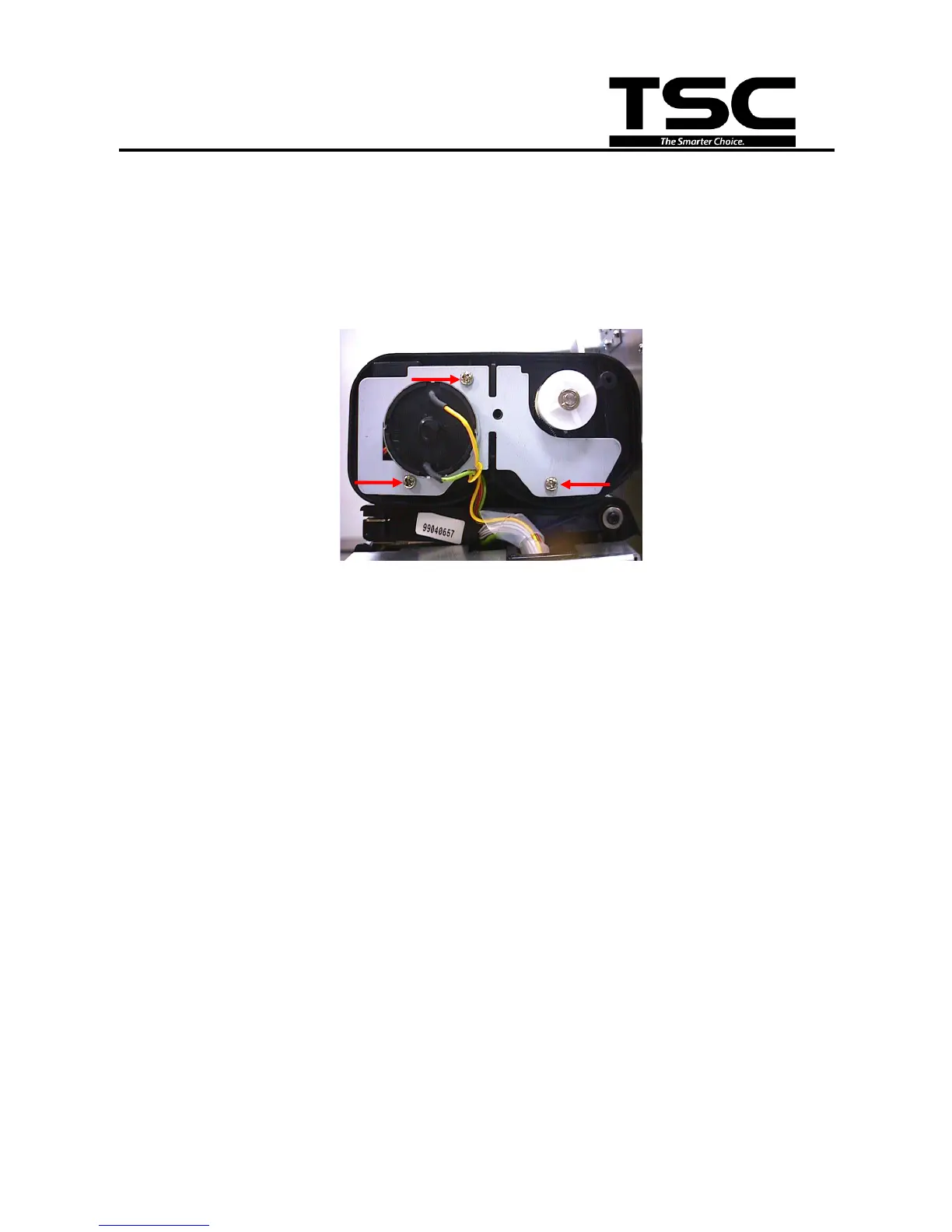

12. Cut off the cable tie. Unfasten the 3 screws on the fixing tab of DC motor.
13. Replace with the new DC motor and connection wires.
Note: The colors of DC motor connection wires are, from left to right, yellow,
green, orange, red, gray.
14. Assemble the detached parts in the reverse order of the steps above.
