3.12. Replacing Feed Button and Feed Button PCB
1. Please refer to 3.1 for disassembling the top cover and top inner cover.
2. Turn the top cover upside down.
3. Screw off 2 screws on feed button PCB and remove feed button PCB.
4. Use a flat head driver to poke up the feed button.
5. Reassemble parts in reverse procedures.

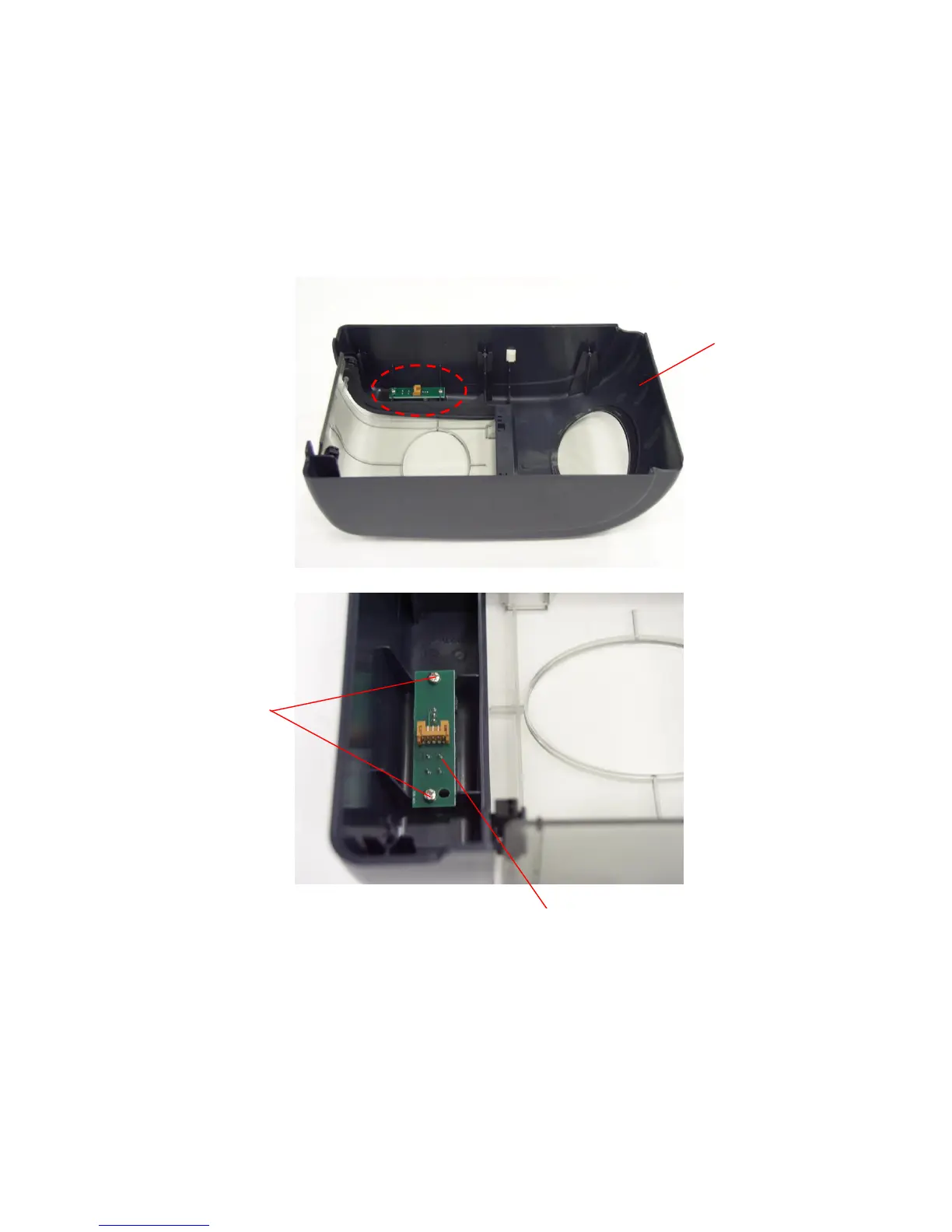

Screws
Top Cover
Feed Button PCB
