TSC TTP-247 Service Manual

41

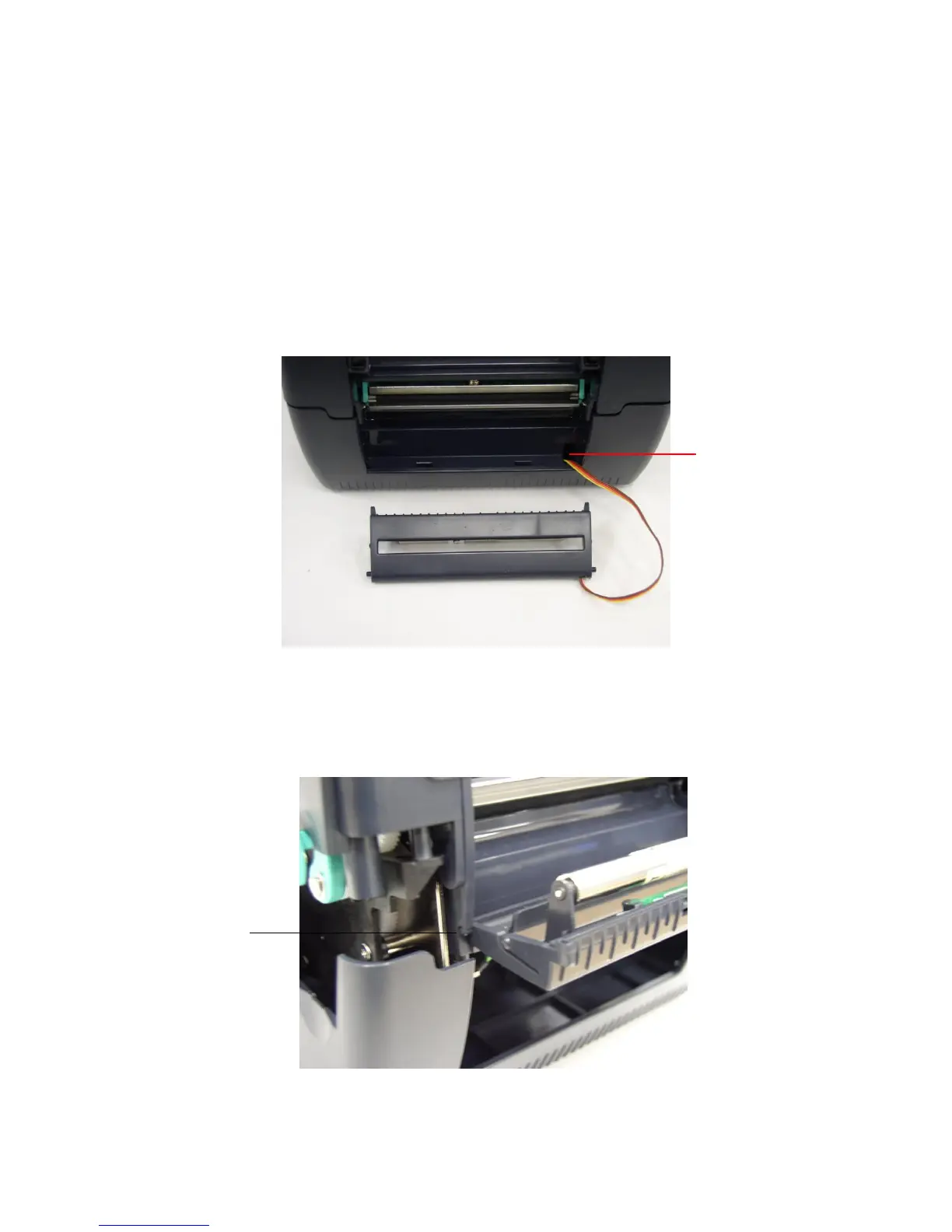

3.14. Install Peel off Module (Option)
1. Open the top cover.
2. Remove two screws for hinge support and one screw for memory card cover in
lower cover.
3. Remove 6 screws on the lower inner cover.
4. Hold the lower cover and lift up the top cover open levers to separate the lower
inner cover and the lower cover. (Please refer to section 3.1 )
5. Connect the harness of peel-off module through the slot of lower inner cover.
6. Lift up the lower inner cover to gently push peel off panel into the two concaves of
lower cover front side.
Note: Must lift up the lower inner cover first, then, the peel-off module could
be installed into the concave of lower inner cover.
Slot
Concave

TSC TTP-247 Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Resolution	203 dpi
Max Print Width	4.09" (104 mm)
Processor	32-bit RISC CPU
Weight	2.5 kg
Max Print Speed	7 ips
Memory	8 MB SDRAM, 4 MB Flash
Interface	USB 2.0, Serial
Ribbon Capacity	300 meters
Label Width	1" (25.4 mm) ~ 4.33" (110 mm)
Label Thickness	0.06 mm ~ 0.19 mm
Power Supply	External Universal Switching Power Supply
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Operating Humidity	25% to 85%, non-condensing
Certifications	CE, FCC, UL, CCC
