TSC TTP-247 Service Manual

50

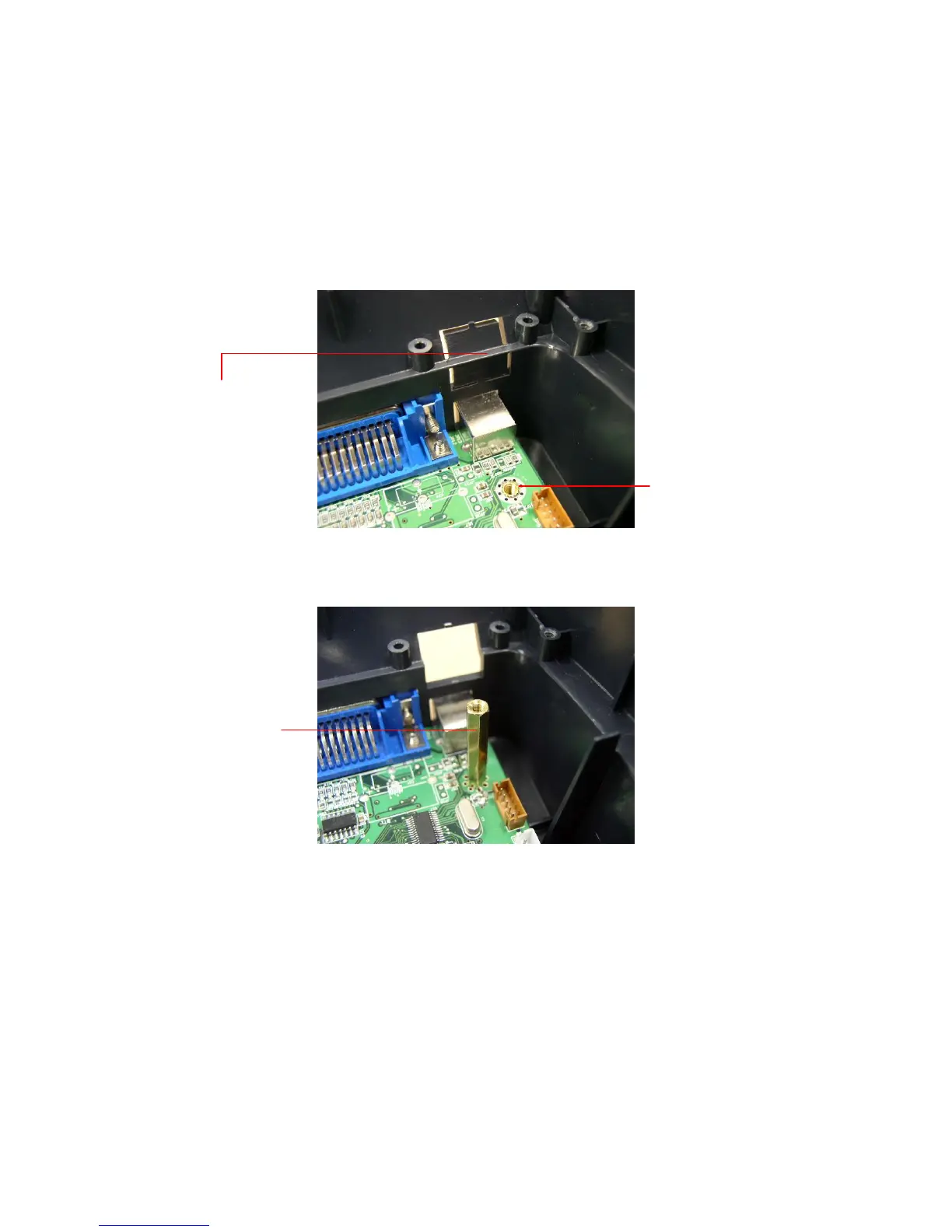

3.18. Internal Ethernet Interface Installation (Option)
1. Break through the plastic partial tab at the rear side of lower cover to get the RJ45
interface opening.
2. Remove the screw from the main board. Fasten the copper pillar.
3. Plug the RJ45 cable connector to the RJ45 daughter board connector. Fasten the
RJ45 connector daughter board upon the lower cover and copper pillar. The ground
wire from the mechanism must be screwed on the daughter board at copper pillar.
RJ45 interface opening
Remove the screw
Copper pillar

TSC TTP-247 Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Resolution	203 dpi
Max Print Width	4.09" (104 mm)
Processor	32-bit RISC CPU
Weight	2.5 kg
Max Print Speed	7 ips
Memory	8 MB SDRAM, 4 MB Flash
Interface	USB 2.0, Serial
Ribbon Capacity	300 meters
Label Width	1" (25.4 mm) ~ 4.33" (110 mm)
Label Thickness	0.06 mm ~ 0.19 mm
Power Supply	External Universal Switching Power Supply
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Operating Humidity	25% to 85%, non-condensing
Certifications	CE, FCC, UL, CCC
