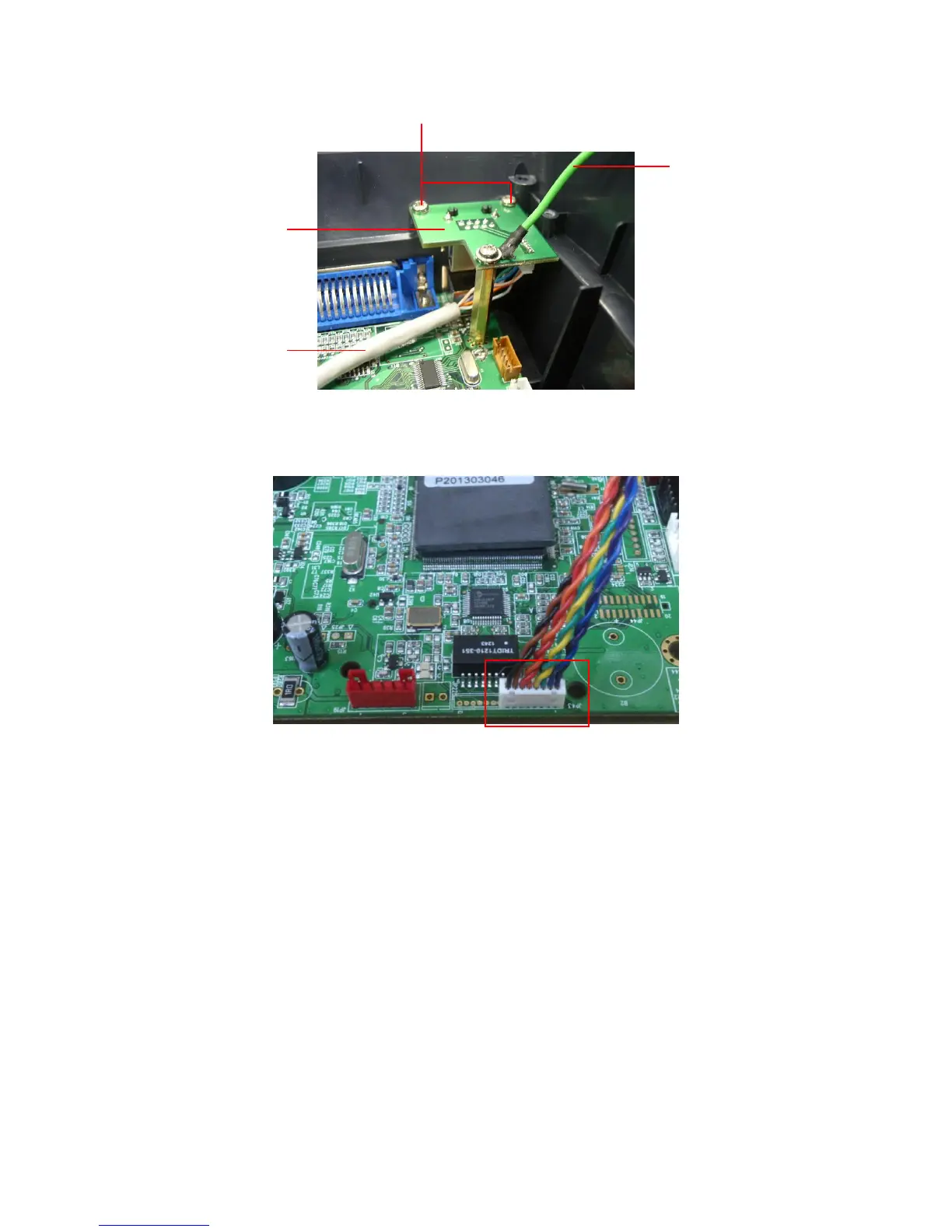

4. Plug the 8 pin RJ45 cable to the main board JP43 connector.
Note: This internal Ethernet interface only supports with the main board that has print
server function on board.
Screws
Ground wire
RJ45 / 8 PIN connector
interface cable interface cable
RJ45 connect
daughter board
