TSC TTP-247 Service Manual

43
3.15. Loading the Label in Peel-off Mode
Note: Both thermal paper and plain paper apply for peel-off function but
neither PVC nor vynle work at peel-off function.
1. Insert a 1” label spindle into a paper roll.

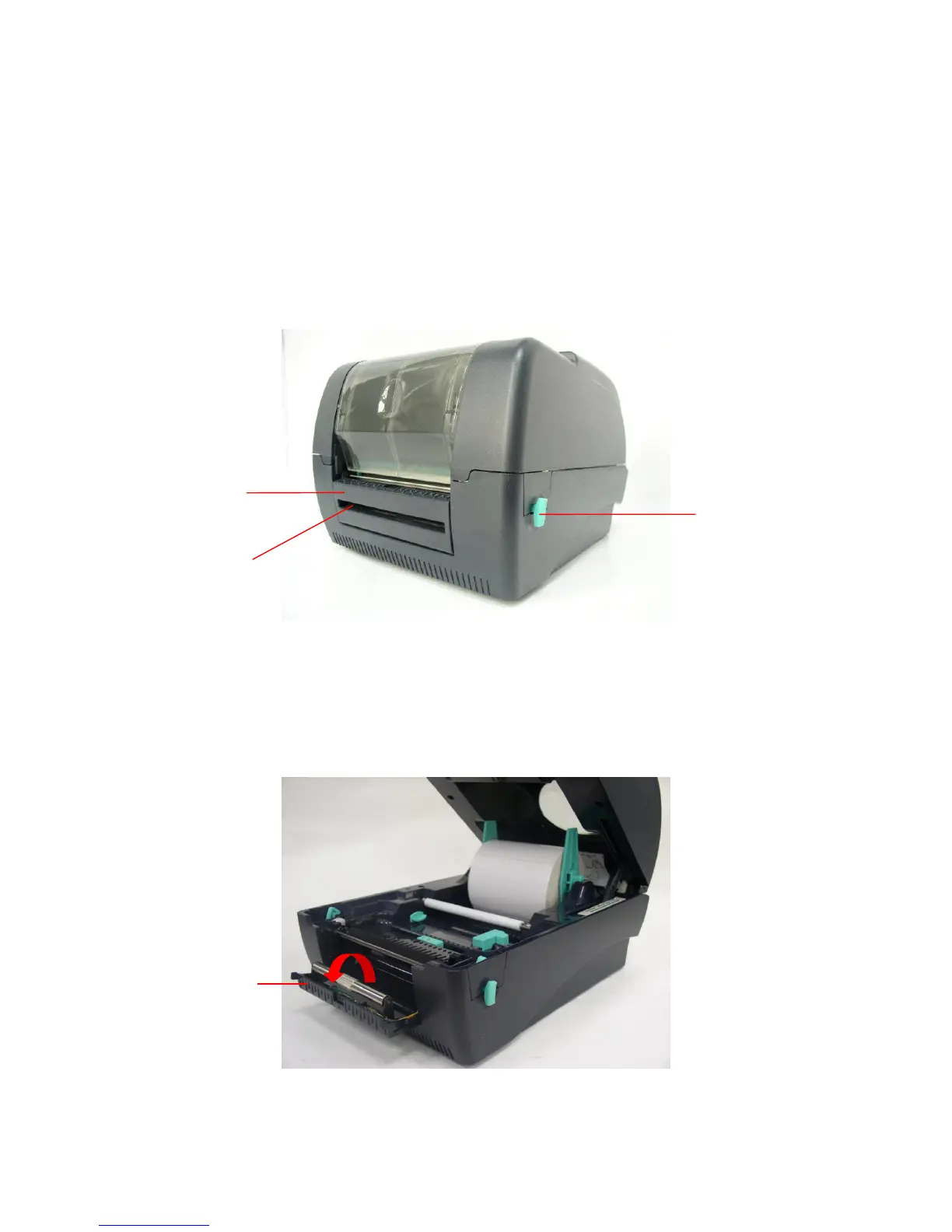

2. Open the printer top cover by pushing forward the top cover open levers. The top
cover support will hold the printer top cover.
3. Install the paper roll on the paper roll mount.
4. Open the peel-off panel by pulling it out.
Peel-off
panel
Top Cover Open Lever
Backing paper
Opening
Peel-off panel

TSC TTP-247 Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Resolution	203 dpi
Max Print Width	4.09" (104 mm)
Processor	32-bit RISC CPU
Weight	2.5 kg
Max Print Speed	7 ips
Memory	8 MB SDRAM, 4 MB Flash
Interface	USB 2.0, Serial
Ribbon Capacity	300 meters
Label Width	1" (25.4 mm) ~ 4.33" (110 mm)
Label Thickness	0.06 mm ~ 0.19 mm
Power Supply	External Universal Switching Power Supply
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Operating Humidity	25% to 85%, non-condensing
Certifications	CE, FCC, UL, CCC
