TSC TTP-247 Service Manual

61
7.2 Printer Function (Calibrate sensor, Ethernet setup, RTC
setup………)
1. Select the PC interface connected with bar code printer.
2. Click the “Function” button to setting.

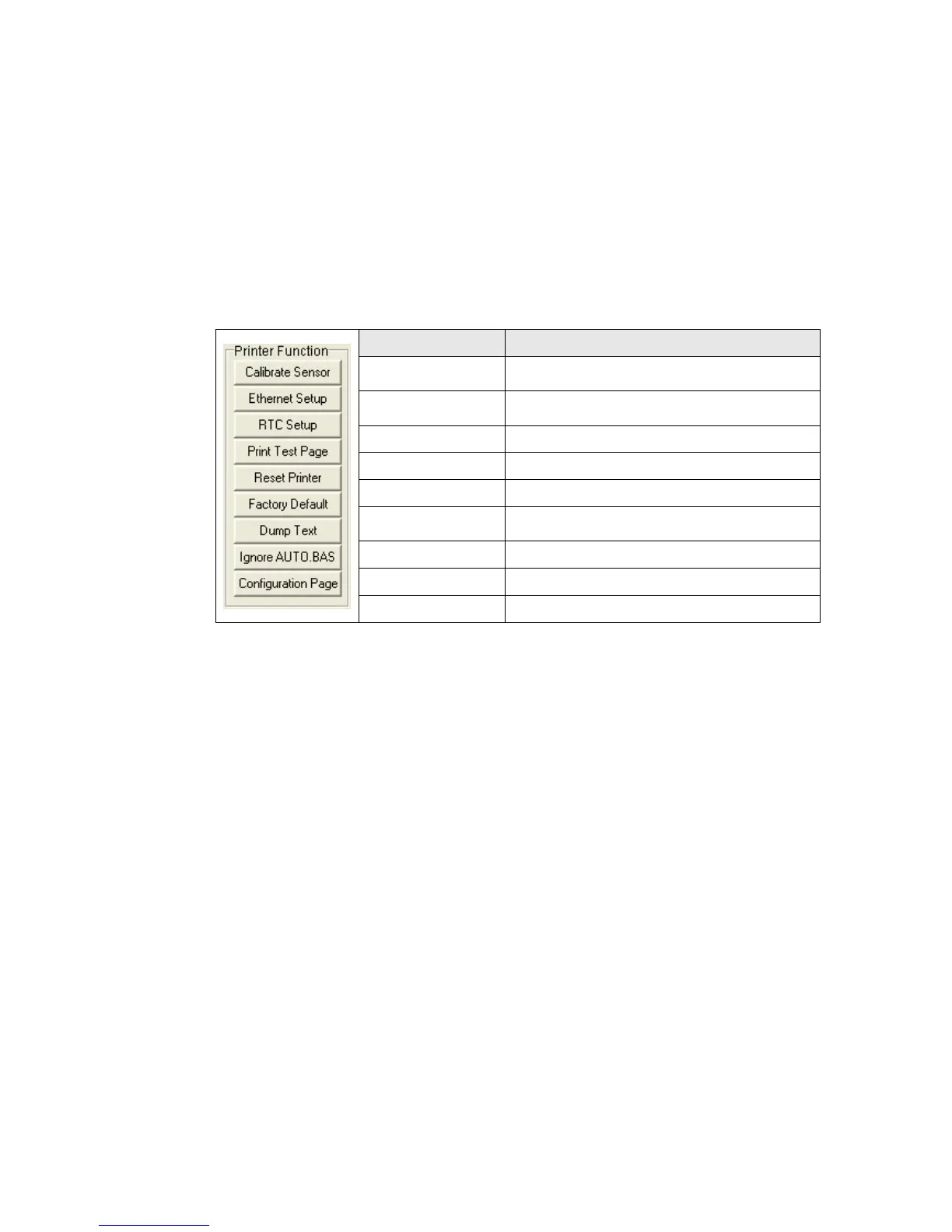

3. The detail functions in the Printer Function Group are listed as below.
Function
Description
Calibrate Sensor
Calibrate the sensor specified in the Printer
Setup group media sensor field
Ethernet Setup
Setup the IP address, subnet mask, gateway
for the on board Ethernet
RTC Time
Synchronize printer Real Time Clock with PC
Print Test Page
Print a test page
Reset Printer
Reboot printer
Factory Default
Initialize the printer and restore the settings to
factory default.
Dump Text
To activate the printer dump mode.
Ignore AUTO.BAS
Ignore the downloaded AUTO.BAS program
Configuration Page
Print printer configuration
Note:
For more information about Diagnostic Tool, please refer to the diagnostic utility quick
start guide in the CD disk \ Utilities directory.

TSC TTP-247 Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Resolution	203 dpi
Max Print Width	4.09" (104 mm)
Processor	32-bit RISC CPU
Weight	2.5 kg
Max Print Speed	7 ips
Memory	8 MB SDRAM, 4 MB Flash
Interface	USB 2.0, Serial
Ribbon Capacity	300 meters
Label Width	1" (25.4 mm) ~ 4.33" (110 mm)
Label Thickness	0.06 mm ~ 0.19 mm
Power Supply	External Universal Switching Power Supply
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Operating Humidity	25% to 85%, non-condensing
Certifications	CE, FCC, UL, CCC
