47

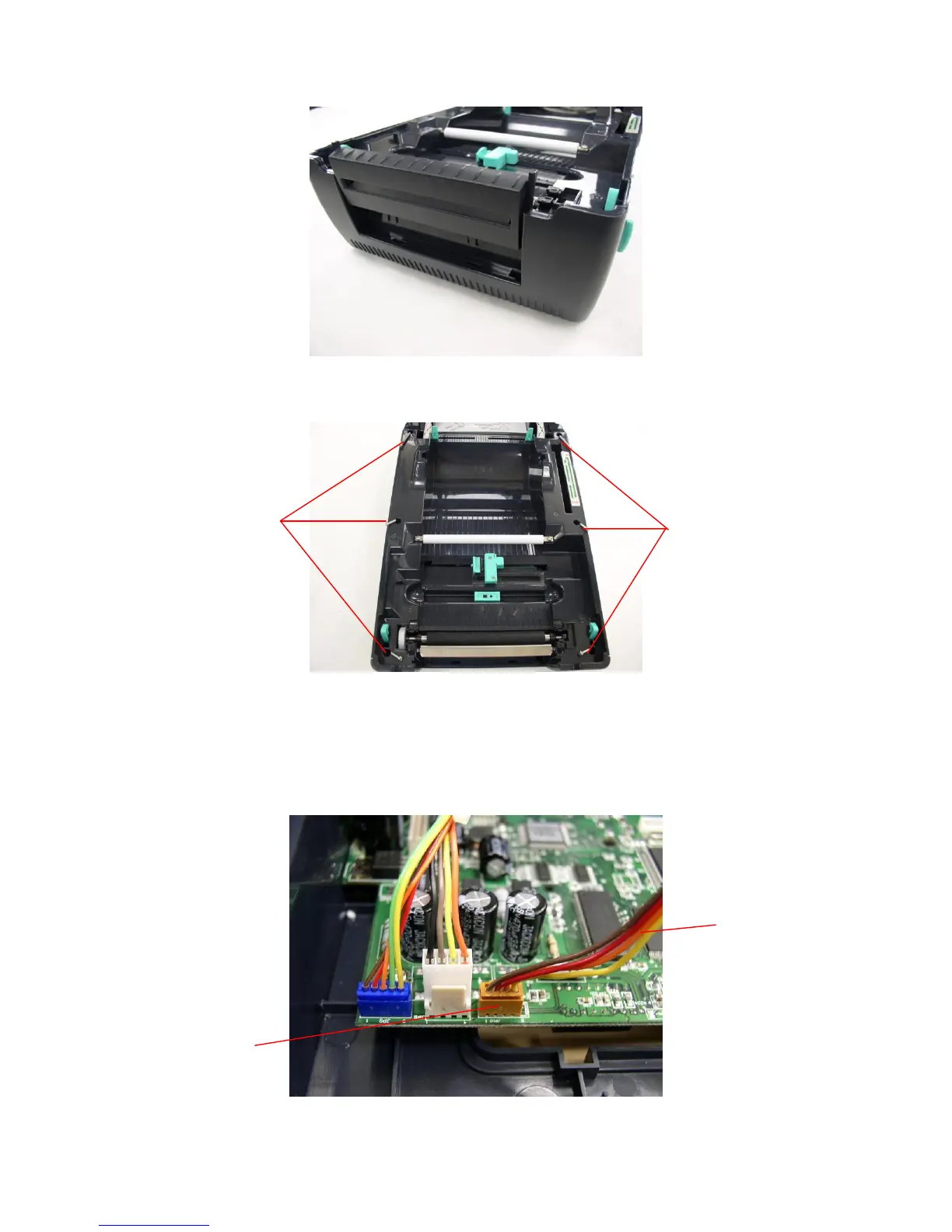

7. Remove the 6 screws in lower inner cover.
8. Lift up the lower inner cover from the Lower Cover.
9. Install the 4 pin connector of the cutter onto JP38 on the main board. Pull the wire
of the 4-pin connector through the slot of lower inner cover front side. Then, put
back the lower inner cover.
Location
JP38
Screws
Screws
Wire of the 4-pin
connector

Other manuals for TSC TTP-247

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the TSC TTP-247 and is the answer not in the manual?

TSC TTP-247 Specifications

General IconGeneral
Print MethodThermal Transfer / Direct Thermal
Resolution203 dpi
Max Print Width4.09" (104 mm)
Processor32-bit RISC CPU
Weight2.5 kg
Max Print Speed7 ips
Memory8 MB SDRAM, 4 MB Flash
InterfaceUSB 2.0, Serial
Ribbon Capacity300 meters
Label Width1" (25.4 mm) ~ 4.33" (110 mm)
Label Thickness0.06 mm ~ 0.19 mm
Power SupplyExternal Universal Switching Power Supply
Operating Temperature5°C to 40°C (41°F to 104°F)
Storage Temperature-4°F to 140°F (-20°C to 60°C)
Operating Humidity25% to 85%, non-condensing
CertificationsCE, FCC, UL, CCC
