TurboChef Double Batch User Manual

A-2
APPENDIX  REPLACING OVEN COMPONENTS
Figure
Reference #
Item Description Item Part Number Fastener Description Fastener Part Number(s)
1 Cover, Top HHD-8254
Screw # 8 X 3/8 Phil. Mod. Truss B 410, SS
Screw, #8 X 1/2 Phil., Truss, Type 17, Serr, SS
101682 (qty 3, back)
101688 (qty 3, front)
2 Filter, Grease
HHD-8423
(qty 1 per cavity)
N/A N/A
3 Jetplate, Bottom (Kit)
HHD-3001
(qty 1 per cavity)
Fast Lead Mounting Clip
Screw, Wing Head, Fast Lead, SS
Fast Lead Screw Retainer
Included with Kit
4 Jetplate, Top (Kit)
HHD-3002
(qty 1 per cavity)
Fast Lead Mounting Clip
Screw, Wing Head, Fast Lead, SS
Fast Lead Screw Retainer
Included with Kit
5 Logo, TurboChef HHC-6336 Nut, Push 1/8 Dia, Tinnerman 101293 (qty 2)
6 Panel, Front HHD-8384 Screw 8-32 X 3/8 PFLH, 100 Deg, SS 102809 (qty 4)
7 Rack, Cooking
HHD-8104-3
HHD-8522 (Stone)
HHD-8490 (Stone,
Front Guard Removed)
(qty 1 per cavity)
N/A N/A
8 Rails, Jetplate Support (Kit)
HHD-3004
(qty 2 per cavity)
N/A N/A
Not Shown Stone, Baking
HHD-8489 (qty 1 per
cavity)
N/A N/A

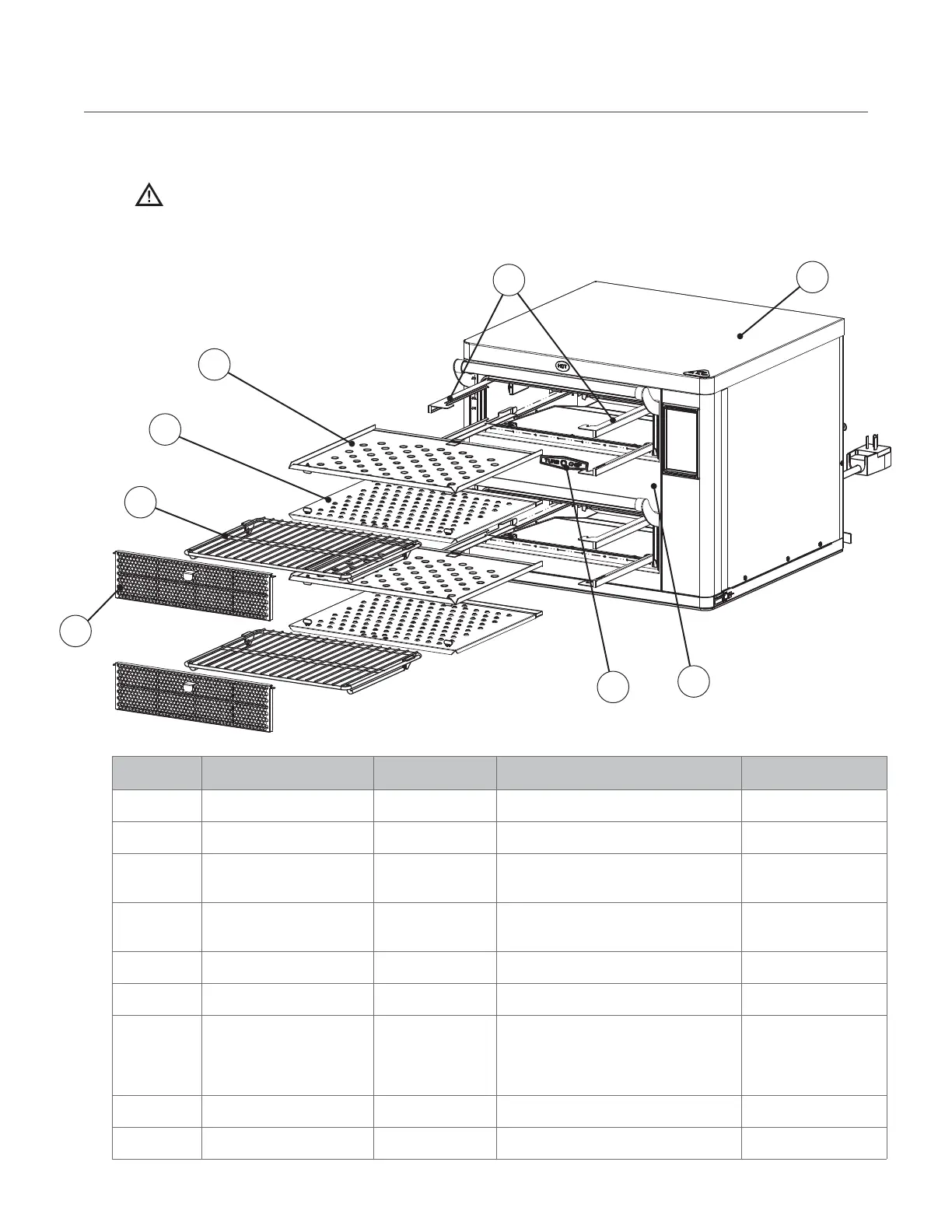

Oven Face and Removable Cavity Parts
WARNING: Before removing any oven part, be sure the oven has completed “cooling down” (see
“Step 10” on page 11) and is removed from the power source.
Some components removed for clarity.
2
3
4
7
8
1
6
5
