TurboChef Double Batch User Manual

A-3
APPENDIX  REPLACING OVEN COMPONENTS

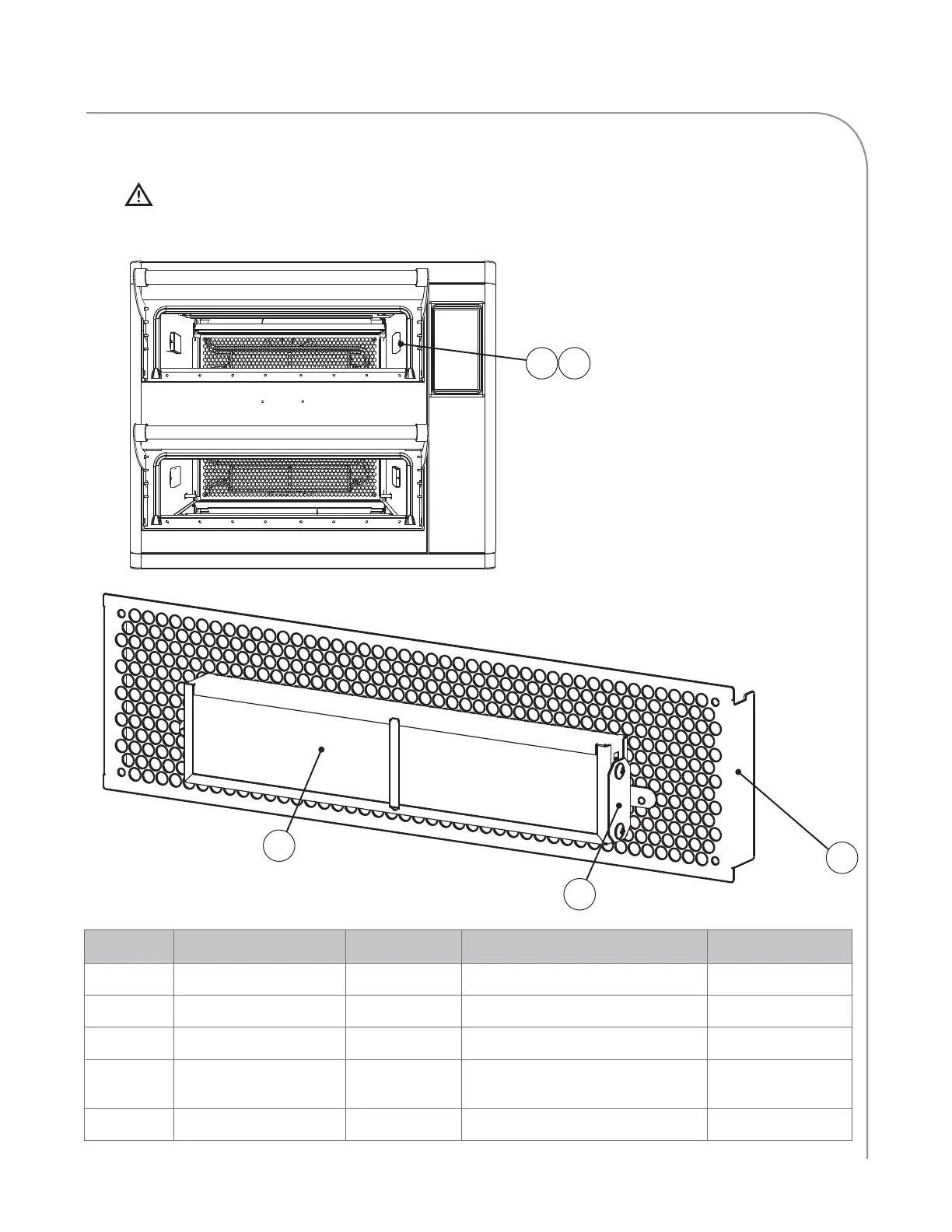

Figure
Reference #
Item Description Item Part Number Fastener Description Fastener Part Number(s)
9 Bulb, Replacement, Xenon 105050 N/A N/A
10 Bracket, Catalytic Converter
ENC-1148
(qty 2 per cavity)
Screw, #8 X 1/2 Phil., Truss, Type 17, Serr, SS 101688 (qty 2)
11 Catalytic Converter
ENC-1147
(qty 1 per cavity)
Screw, #8 X 1/2 Phil., Truss, Type 17, Serr, SS 101688 (qty 4)
12 Diverter, Air, Perforated
HHD-8289
(qty 1 per cavity)
Screw, #8 X 1/2 Phil., Truss, Type 17, Serr, SS 101688 (qty 4)
13
Light Assembly with Bulb, 10W,
12V, G9, 450C
HHD-8503
(qty 2 per cavity)
Screw, Drill Pt, 6-32 x 3/8 PPH, Zinc 101684 (qty 1)
Oven Face and Removable Cavity Parts, Continued
WARNING: Before removing any oven part, be sure the oven has completed “cooling down” (see
“Step 10” on page 11) and is removed from the power source.
Some components removed for clarity.
9
12
10
11
13
