46 THE OVEN DOOR
Ref # Part Description Part Number Hardware Description Hardware #
1 Bracket, Hinge Support, Left HHB-8238 Screw, #8-32 x 3/8, Hex Washer Head 102953 (qty 3)
2 Bracket, Hinge Support, Right HHB-8239 Screw, #8-32 x 3/8, Hex Washer Head 102953 (qty 3)
3 Door, Complete Assembly HHB-3232
Standoff, 5/16 Hex, 1.125L, 10-32 M/F
Hole Plug, Door, 1/2” Black
101924 (qty 4)
101191 (qty 4)
4 Door Handle HHB-8240 Bolt, #1/4-20 x 1.0, Hex, Serr, SS 102945 (qty 4)
5 Hinge, Left 102805
Screw, #8-32 x 3/8, PPHD, Int Sems, SS
Screw, #8-32 x 3/8, Hex Wshr Head
Bracket, Hinge Support, Left
102809 (qty 4)
102953 (qty 3)
HHB-8238
6 Hinge, Right 102804
Screw, #8-32 x 3/8, PPHD, Int Sems, SS
Screw, #8-32 x 3/8, Hex Wshr Head
Bracket, Hinge Support, Right
102809 (qty 4)
102953 (qty 3)
HHB-8239
7 Hole Plug, Door (qty 4) 101191 N/A N/A
8 Plate, Door Switch NGC-1126 Screw, #8-32 x 3/8, PPHD, Int Sems, SS 102921
9
Standoff, #8-32 x 3/8 x 1.0 Lg,
5/16/ F/F
101914 Screw, #8-32 x 1/2, PPHD, Int Sems, SS 102923
10 Switch, Interlock 102012 Screw, #4-40 x 3/4, Sems, PPHD, SS 102904 (qty 2)

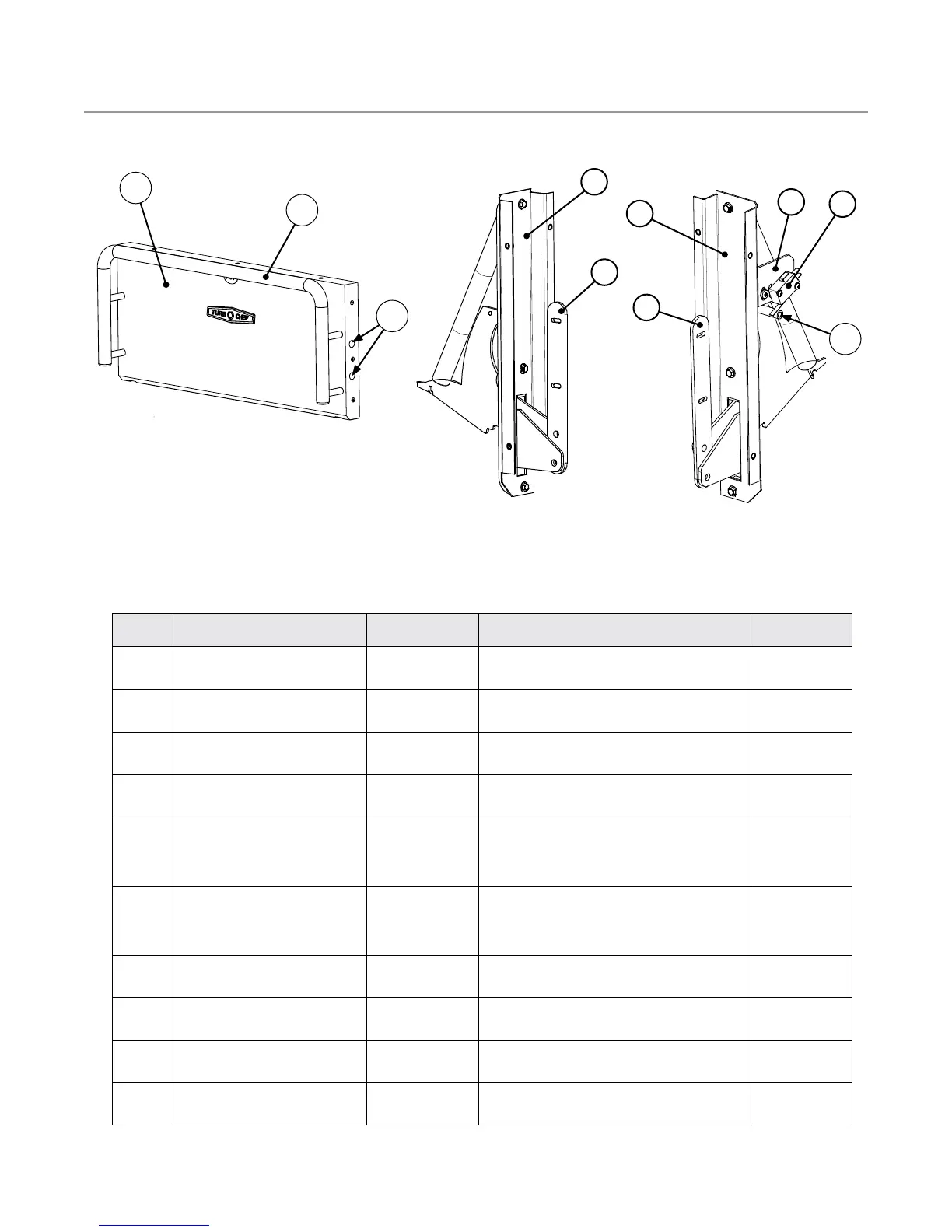

Figure 40: Oven Door
Figure 42: Right Hinge Detail
5
1
10
2
6
8
Figure 41: Left Hinge Detail
3
4
7
9
