THE FILTERING SYSTEM
47
Filtering System Components
The filtering system consists of the following
components:
£
Grease filter
£
Grease filter frame
£
Catalytic converter
Grease Filter
The grease filter is located on the rear cavity wall
and helps remove grease and food particles from
the recirculating airflow. Checking the filter daily
is recommended to ensure optimal oven opera-
tion. See page 9 for cleaning instructions.
Grease Filter Frame
The grease filter frame is designed to pivot for-
ward for easy removal of the grease filter. See
page 9 for removal and cleaning instructions.
Catalytic Converter
The catalytic converter, a VOC type catalyst, is
located behind the rear cook cavity wall and is
responsible for cleaning the recirculating airflow.
The catalyst functions by substantially lowering
the combustion temperature of grease entrained
in the air path to approximately the same tem-
perature of the airflow, thus the grease burns
and breaks down into CO
2
and H
2
O as it passes
through the catalytic converter. The catalyst will
operate most efficiently at temperatures above
475
º
F (246
º
C).
The catalytic converter is self-cleaning. It is not a
component that requires scheduled maintenance.
Additionally, the catalyst material is very sensi-
tive to certain chemical compounds. Irreversible
dam-age can occur if the catalyst is exposed to
cleaning chemicals containing phosphates, NaOH,
silicates, Na and Potassium Salts; therefore, use
only Turbo-Chef
Oven Cleaner when cleaning the
oven.
NOTE: Door does not need to be removed to access
components inside the oven cavity - illustration is for
clarity purposes only.

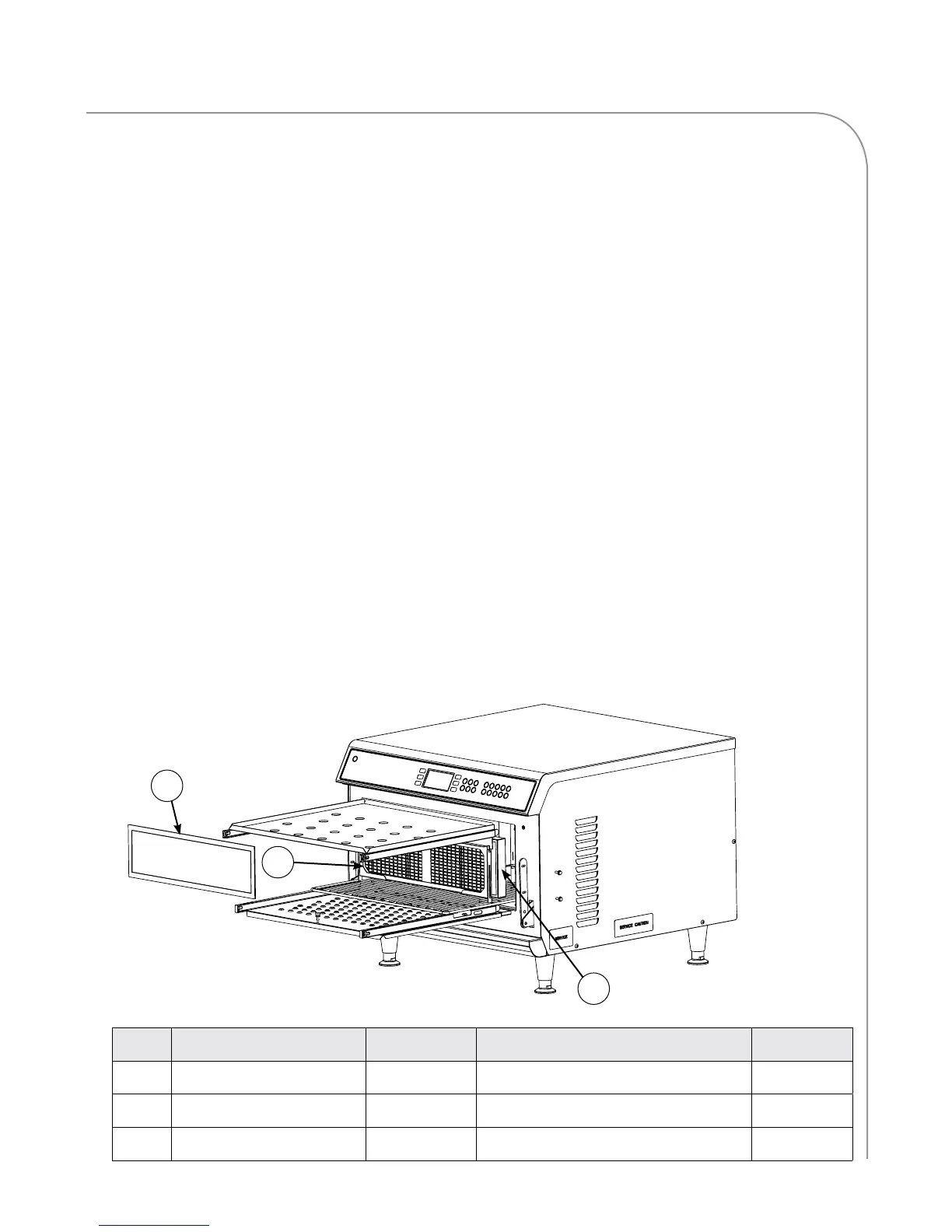

Figure 43: Filtering System Components
Ref # Part Description Part Number Hardware Description Hardware #
1 Filter, Grease HHB-8287 N/A N/A
2 Filter, Bracket HHB-8288 N/A N/A
3 Catalytic Converter HHB-8108 N/A N/A
3
1
2
