48 MISCELLANEOUS COMPONENTS

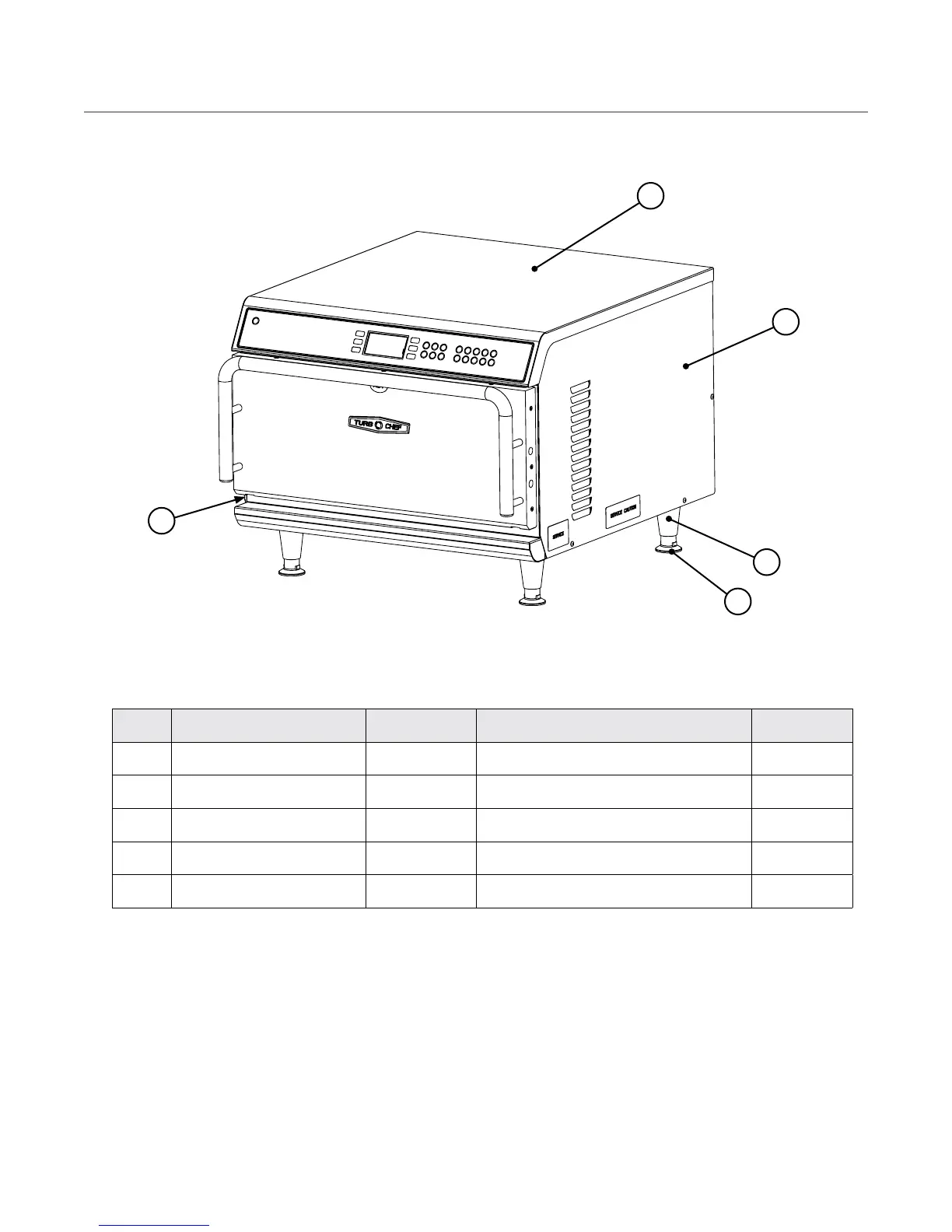

Figure 44: Miscellaneous Components
Ref # Part Description Part Number Hardware Description Hardware #
1 Cover, Left Side HHB-8271 Screw, #8 x 1/2 PTRH, Type 17, Serr, 410 SS 101688 (qty 3)
2 Cover, Right Side HHB-8272 Screw, #8 x 1/2 PTRH, Type 17, Serr, 410 SS 101688 (qty 3)
3 Cover, Top/Controls HHB-8254 Screw, #10-32 x .38 Lg, 100 Deg, PFLHD, SS 101401 (qty 3)
4 Leg, with Pad (qty 4) HHB-3205 N/A N/A
5 Pad, Abrasive (qty 4) NGC-1440 N/A N/A
2
4
5
3
1
