9.14 Replacing the Locking Solenoid
Caution!
Before starting, disconnect the instrument from the power source and
ensure that there is no pressure in the autoclave.
1. Remove the door cover.
2. Disconnect the wires from the connector.
3. Unscrew the tightening nut (cat. No. CMV100-0002 or
CMT201-0005 as appropriate).
4. Remove the pin, the spring and the solenoid.

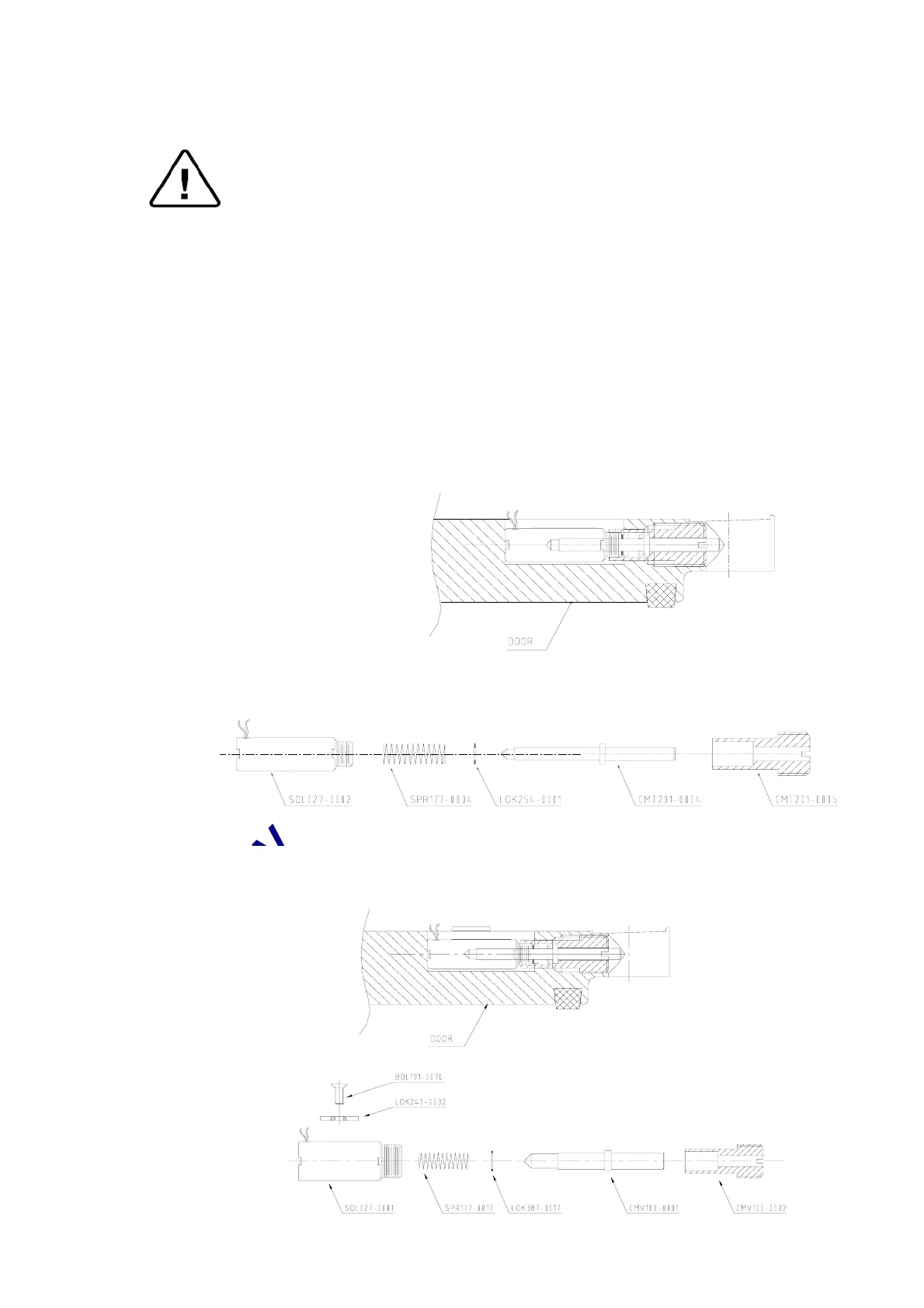

5. Replace the damaged items and reinstall according to drawing
below.
6. Operate the autoclave and verify that the pin is retracted when the
cycle reaches “stand-by” stage.
For models
3140, 3850, 3870
For models
1730, 2340, 2540
