9.19 Fuses and Circuit Breaker Data
AUTOCLAVE TYPE
E EA EK EKA
DESCRIPTION
120V 230V 120V 230V 120V 230V 120V 230V
1730
Circuit breaker (A)
15 10
 
15 10
 
Air pump fuse (A)
       
Water pump fuse (A)
       
2340/2540
Circuit breaker (A)
15 10 15 10

15

15
Air pump fuse (A)
 
3.15 1.25
  
1.25
Water pump fuse (A)
1.25 1.25 1.25 1.25

1.25

1.25
3140/3850/3870
Circuit breaker (A)

15

15
   
Air pump fuse (A)
  
1.25
   
Water pump fuse (A)

1.25

1.25
   

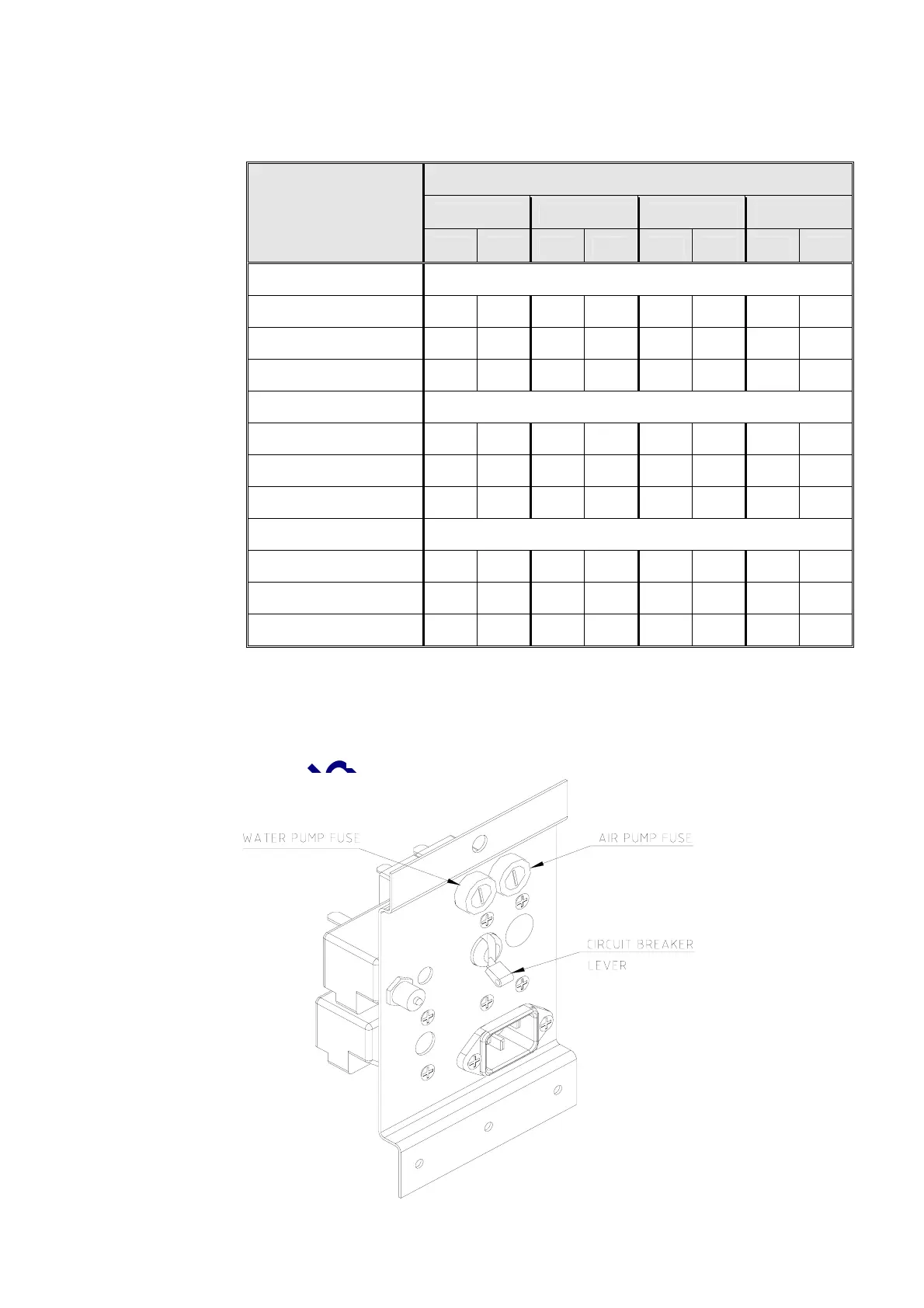

The drawing below refers to models EKA, EA. Models E, EK do not have an
air pump fuse. Model 1730 does not have any fuse.
