9.15.2 DPU30 Printer
Caution!
Before starting, disconnect the instrument from the power
source.
1. Remove the autoclave cover (see para. 9.2 “Dismantling
the Outer Covers of the Autoclave”).

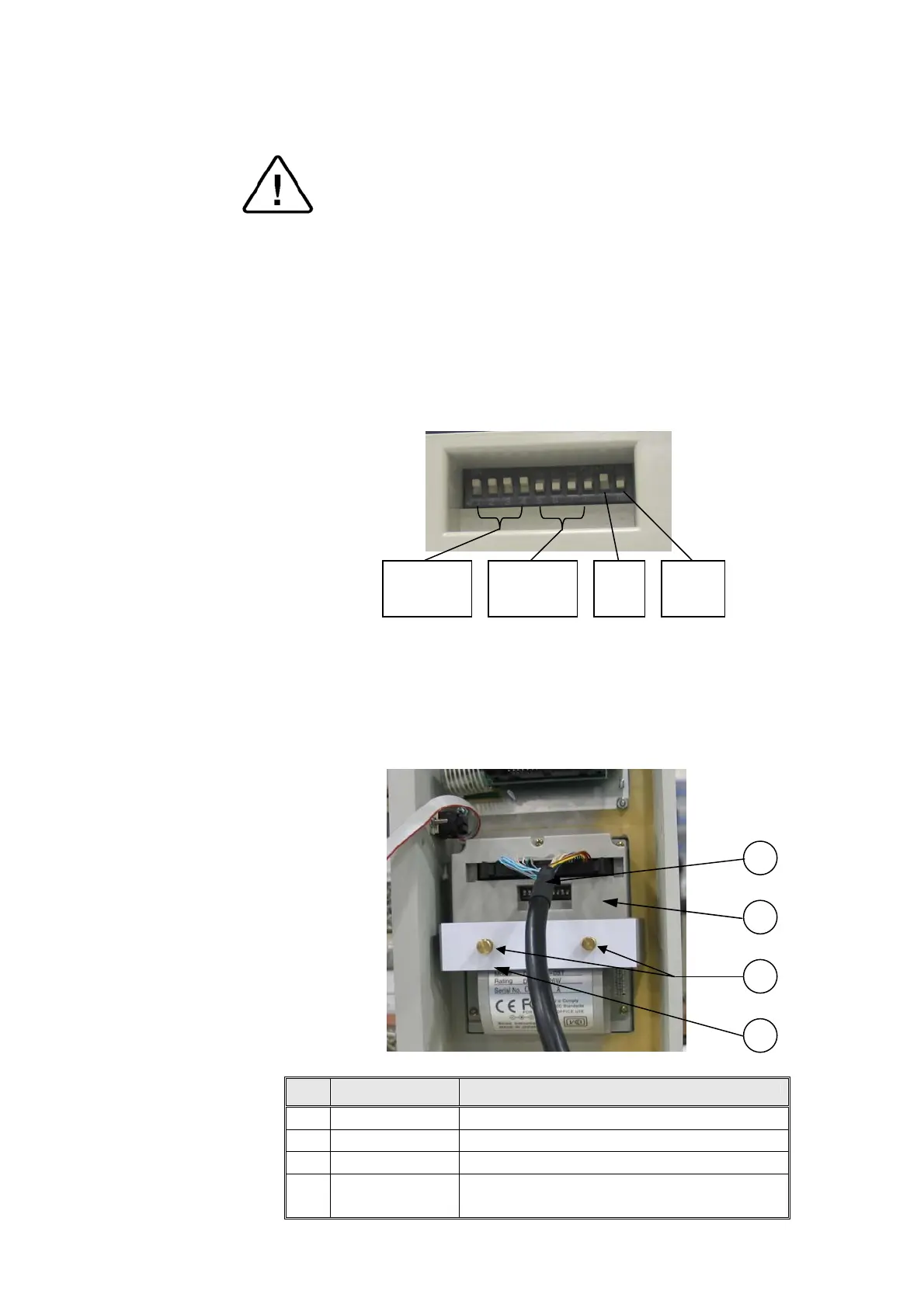

2. Disconnect the connector of the cable (1) connecting the
electronic box to the printer (2).
3. Unscrew the two screws (3) attaching the fastening
bracket (4) to the printer.
4. Remove the printer.
5. Set the dip switches on the new printer, located on the
back side of the printer, as follows:
6. Insert the new printer into its frame.
7. Assemble the fastening bracket to the printer with the two
screws (2) and verify that it is placed firmly.
8. Connect the (1) cable to the printer.
9. Verify connection of power by performing a self-test.
10. Run a cycle and verify that the printer operates correctly.
1
3
2
4
No. Cat. No. Description
1 CTP201-0127 Cable, Printer, DPU-30, 30cm, 34p
2 THE002-0022 Printer, DPU-30, Seiko
3 BOL190-0144 Screw, printer tightening
4
Supplied with
the printer
Fastening bracket
5, 6, 7, 8
down
1, 2, 3, 4,
up
9
up
10
down
