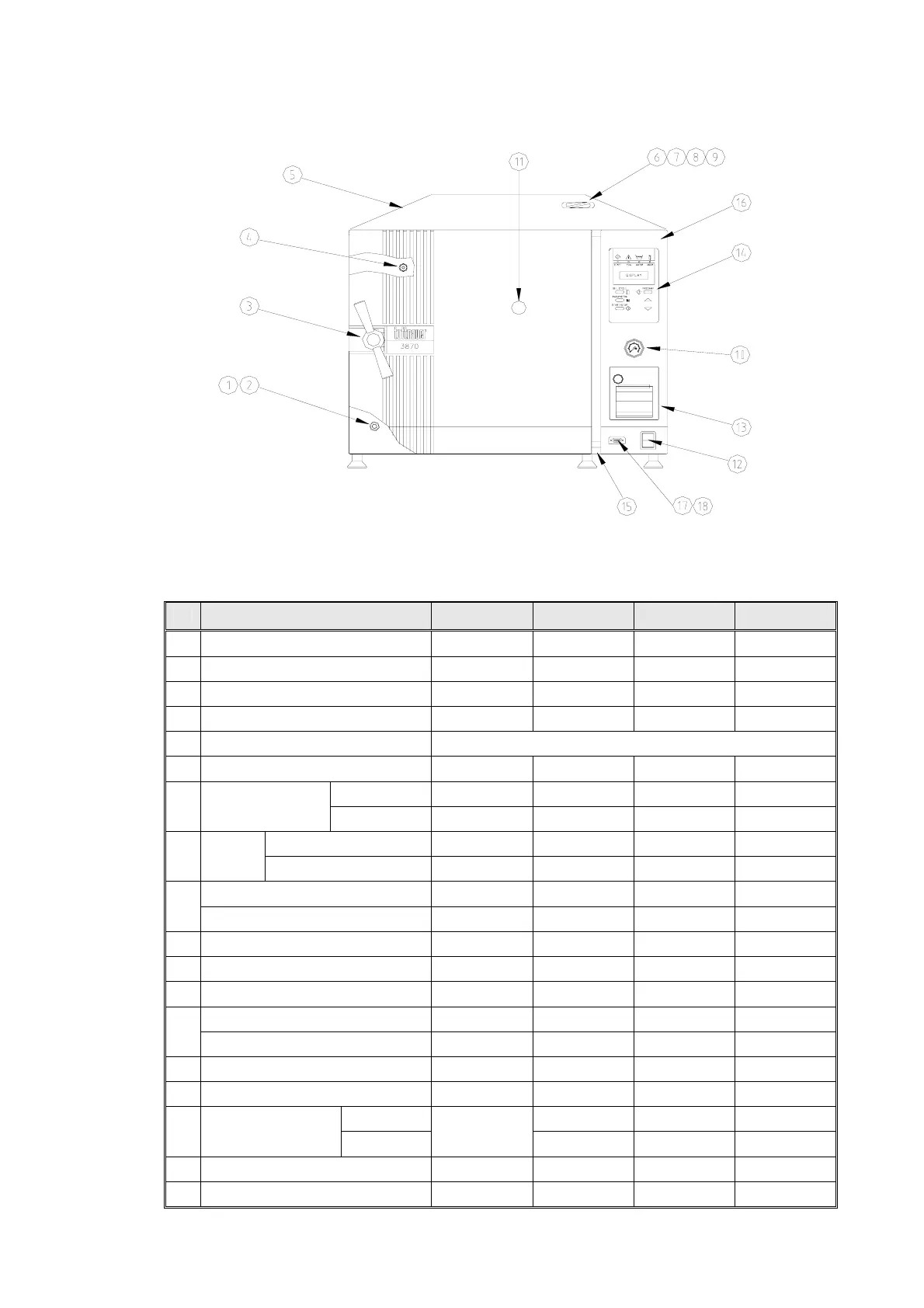

Tuttnauer E Series - Page 79

www.shanghaidelan.com
77
No. Description 1730 2340/2540 3140 3850/3870
1 Reservoir water drain valve
VLV170-0066 VLV170-0066 VLV170-0066 VLV170-0066
2 Ring for drain valve
CMT240-0003 CMT240-0003 CMT240-0003 CMT240-0003
3 Door closing device
LOK240-0001 LOK240-0001 LOK387-0032 LOK387-0032
4 Door switch
ELE036-0009 ELE036-0009 ELE036-0009 ELE036-0009
5 Autoclave cover
See “Outer cabinet assembly”
6 Water reservoir cover
POL067-0004 POL067-0004 POL067-0004 POL067-0004
E, EA
CMT173-0029 CMT254-0011 CMT314-0005 CMT387-0026
7
Water reservoir
– assembly
EK, EKA
CMT173-0030 CMT240-0047
 
CE marked
SVL029-0028 SVL029-0028 SVL029-0028 SVL029-0028
8
Safety
valve
ASME approved
SVL029-0004 SVL029-0004 SVL029-0004 SVL029-0004
Air relief valve, EK & EKA
CMT100-0003 CMT100-0003
 
9
Air relief valve, E & EA
CMT100-0006 CMT100-0006 CMT100-0006 CMT100-0006
10 Pressure gauge

GAU029-0009 GAU029-0009 GAU029-0009
11 Validation port cover

POL065-0006 POL065-0006 POL065-0006
12 Main switch
ELE035-0012 ELE035-0012 ELE035-0012 ELE035-0012
Printer - if installed

THE002-0005 THE002-0022 THE002-0022
13
Cover - if w/o printer

POL067-0002 POL067-0007 POL067-0007
14 Front panel key board
CTP201-0061 CTP201-0061 CTP201-0061 CTP201-0061
15 Completion to panel
POL063-0004 POL063-0002 POL063-0005 POL063-0003
DPU-20
POL062-0002
 
16 Panel base
DPU-30
POL062-0001

POL062-0013 POL062-0003
17 Flat cable ANL-T2 – RS232

CTP201-0084 CTP201-0084 CTP201-0084
18 RS232 port cover

POL067-0003 POL067-0003 POL067-0003
Models 3140/3850/38
70
FRONT VIEW (Continue)
