Chapter 3. Specification

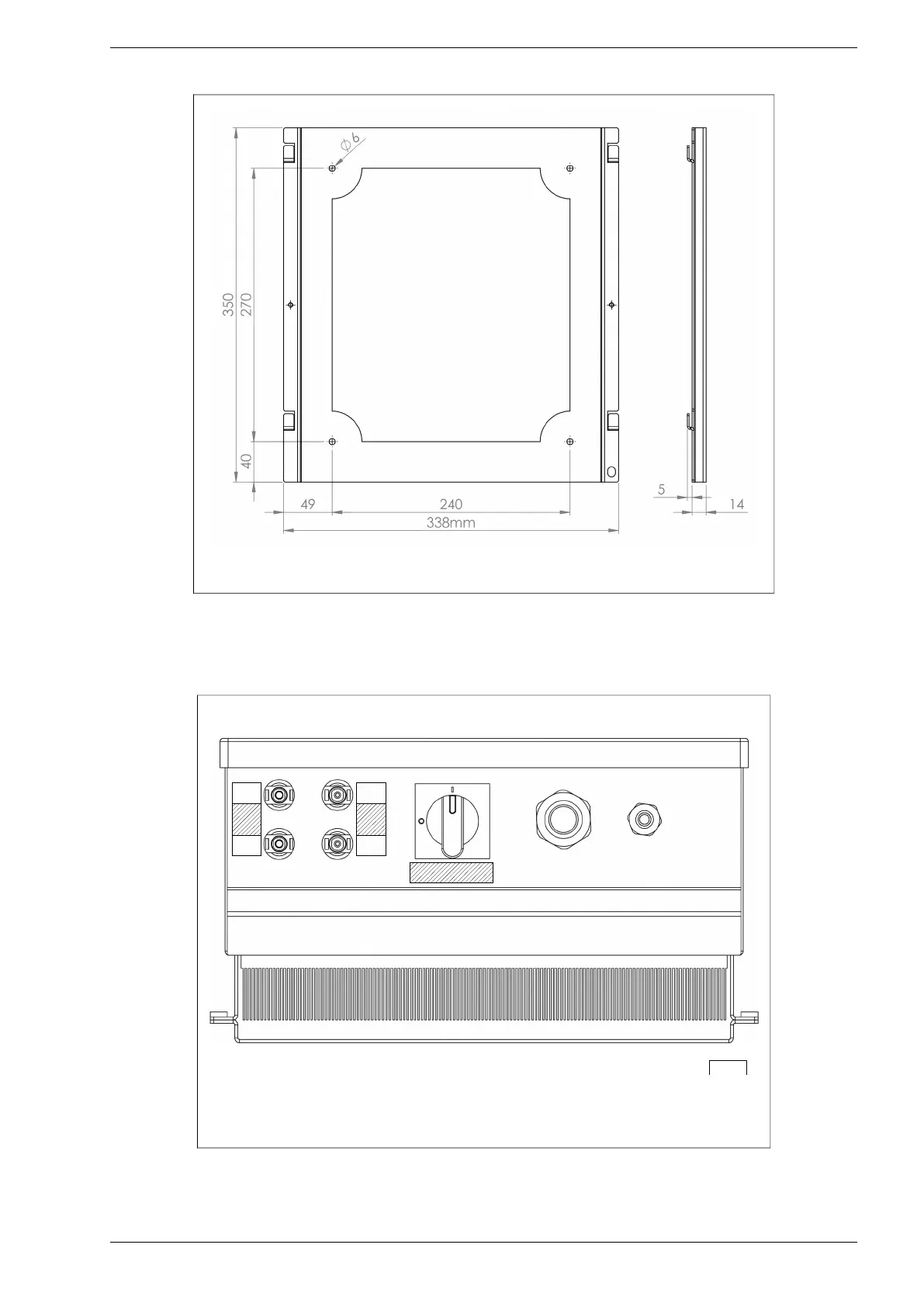

Fig. 3.5. Mechanical dimensions of the mounting frame
Fig. 3.6. Inverter view from the connectors side
Note: PS100-WT - no PV1, PV2 connectors and a PV switch;
PS100-H – no PV2 connector.
PS100 – User manual 13
PV switch
PV SWITCH
ps100-20-1
IN1 +
PV1
IN1 -
IN2 +
PV2
IN2 -
IN2 +
IN2 -
