Chapter 3. Specification
3.2.4. PS100-WT+BC/5.5kW, PS100-PV+BC/5.5kW, PS100-H+BC/3kW, PS100-H+BC/5.5kW

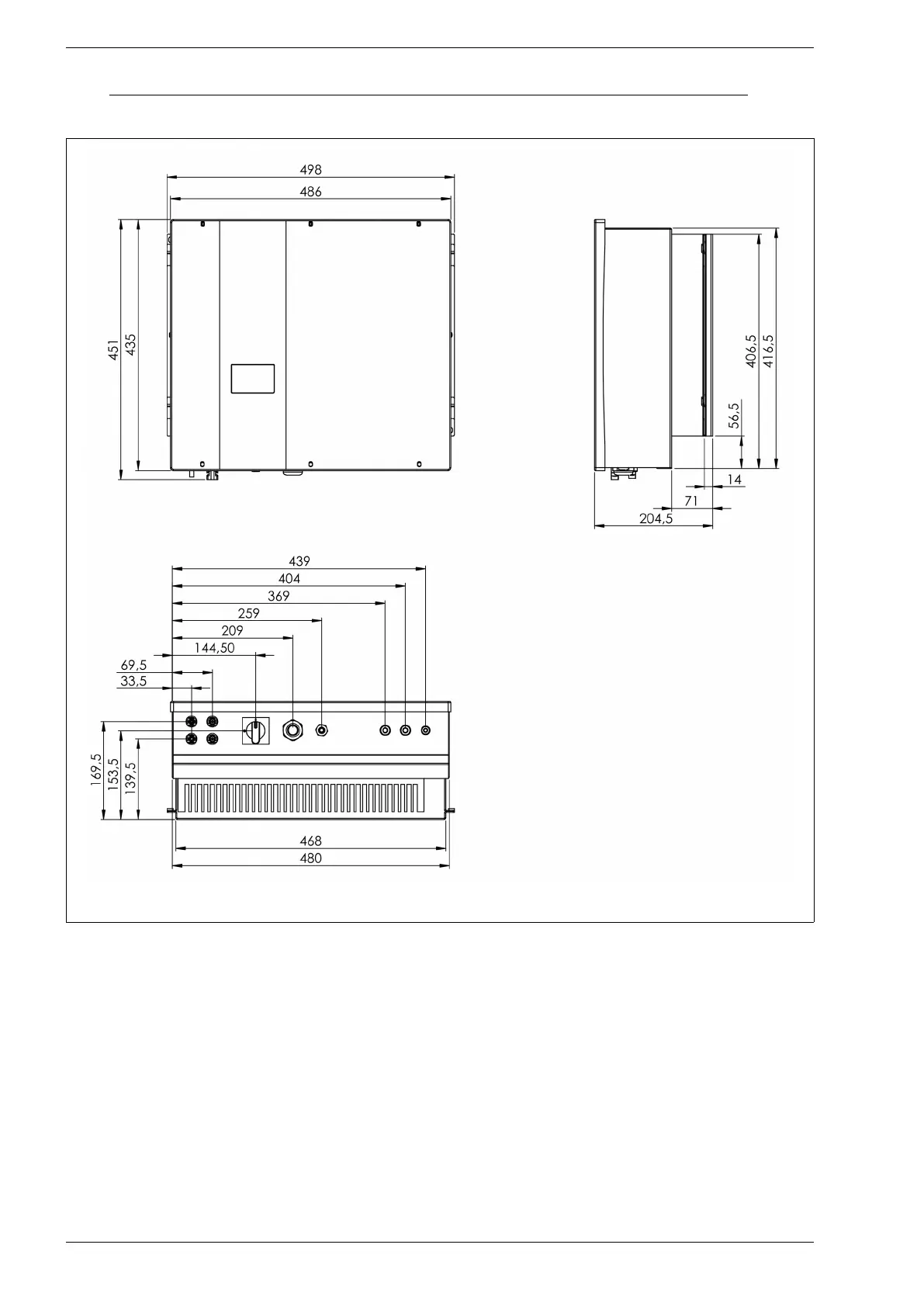

Fig. 3.10. Mechanical dimensions of the inverter
Weight of the inverter with mounting frame: 21 kg.
16 PS100 – User manual
