Chapter 3. Specification

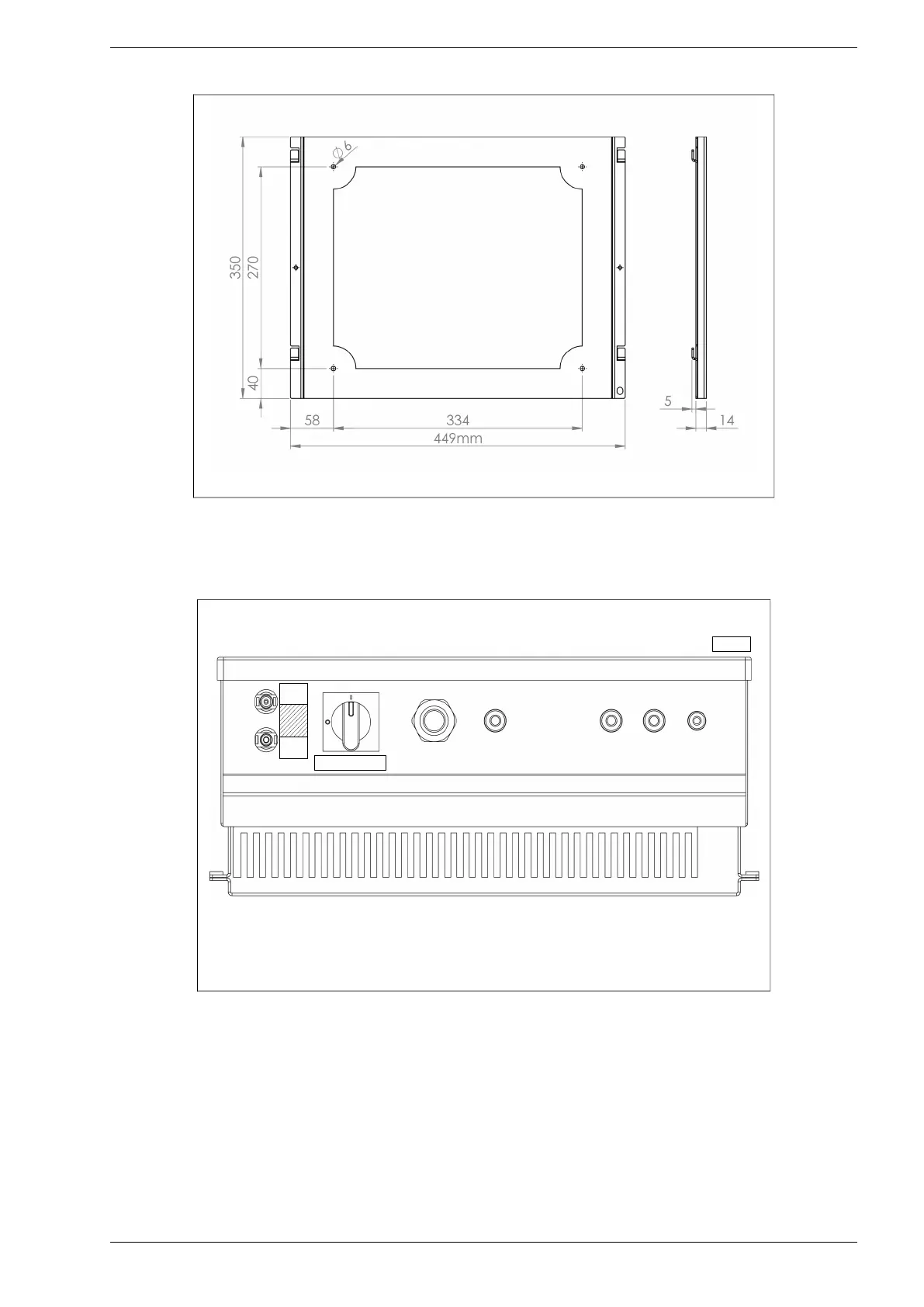

Fig. 3.8. Mechanical dimensions of the mounting frame
Fig. 3.9. Inverter view from the connectors side
Note: PSW100-WT+BC - no PV connectors and a PV switch.
PS100 – User manual 15
PV SWITCH
IN +
PV
IN -
ps100-22-1
