TWERD Power Electronics PS100-WT - Mechanical Dimensions and Weight; PS100-Wt;1 Kw, PS100-Wt;3 Kw, PS100-Pv;1 Kw, PS100-Pv;3 Kw

Chapter 3. Specification
3.2. Mechanical dimensions and weight
3.2.1. PS100-WT/1kW, PS100-WT/3kW, PS100-PV/1kW, PS100-PV/3kW

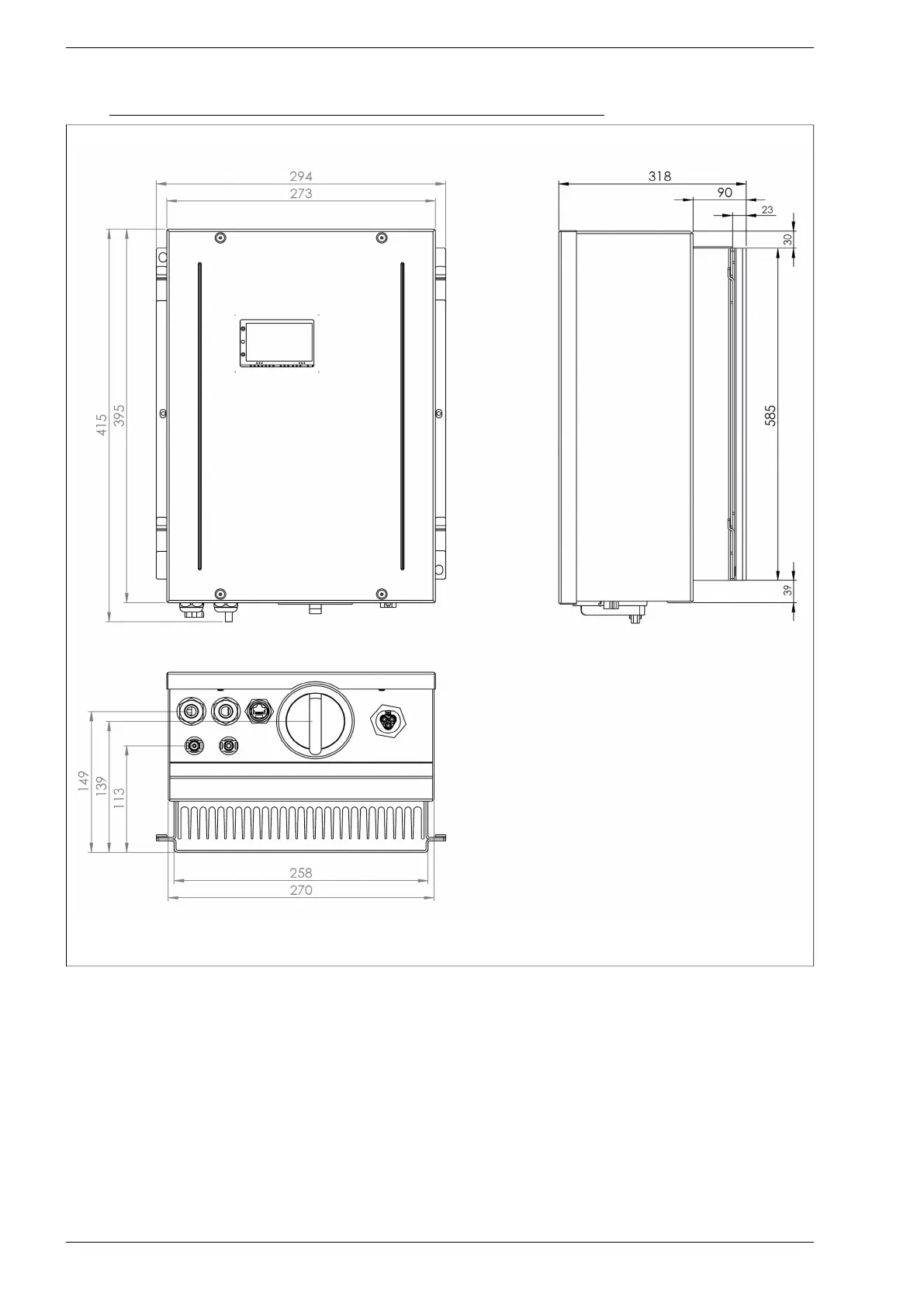

Fig. 3.1. Mechanical dimensions of the inverter
Weight of the inverter with mounting frame: 14 kg.
10 PS100 – User manual
