Chapter 4. Preparing for installation
Tightening torque
typ. 4+1 Nm
ps100-27-1en

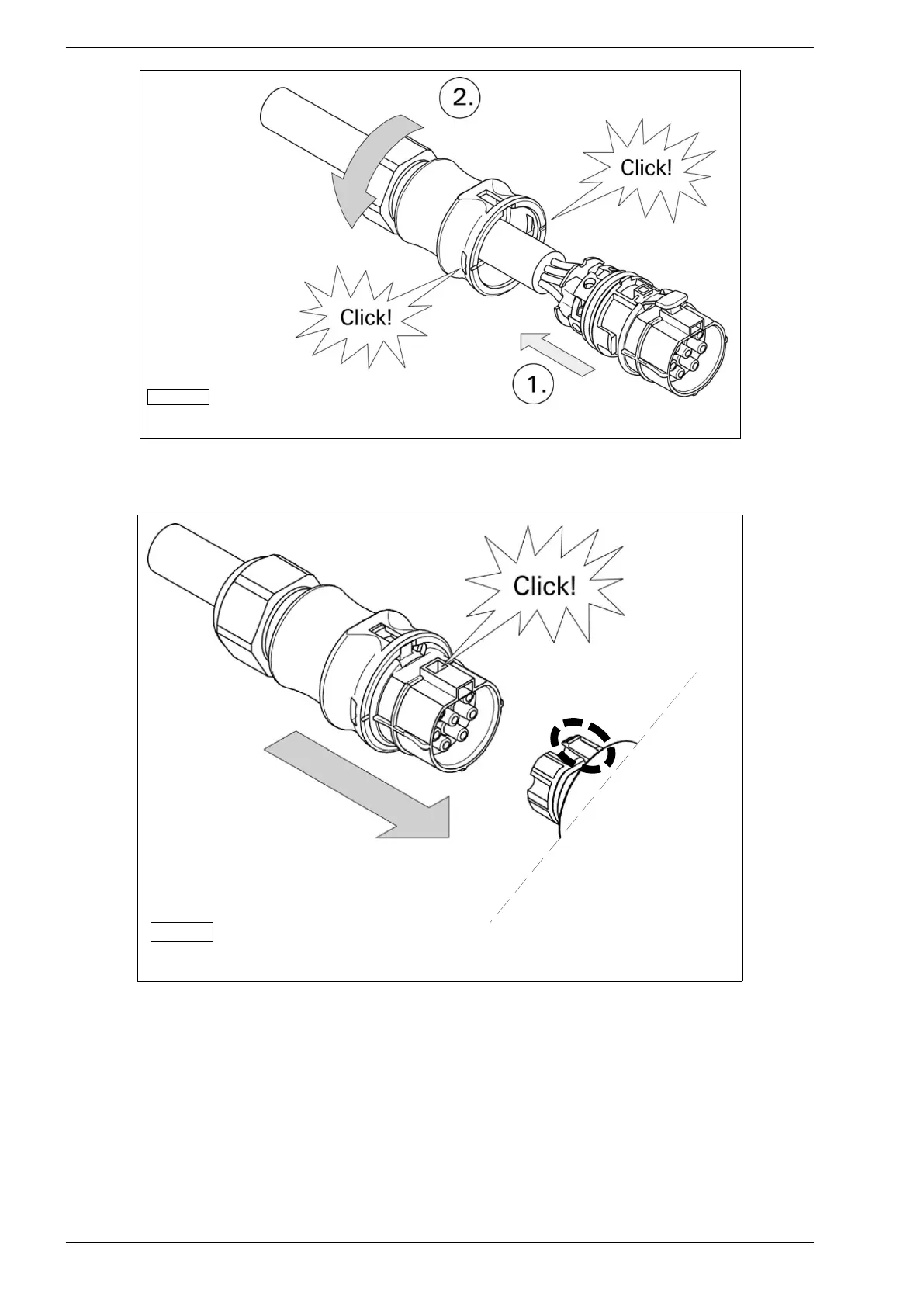

Fig. 4.3. Closing the connector
!
ps100-28-1
Fig. 4.4. Connecting the connector to the inverter
Attention: Fig. 4.3 and 4.4 show connectors for a 3-phase network. However, the principle of mounting
connectors for the network 1-phase is the same.
