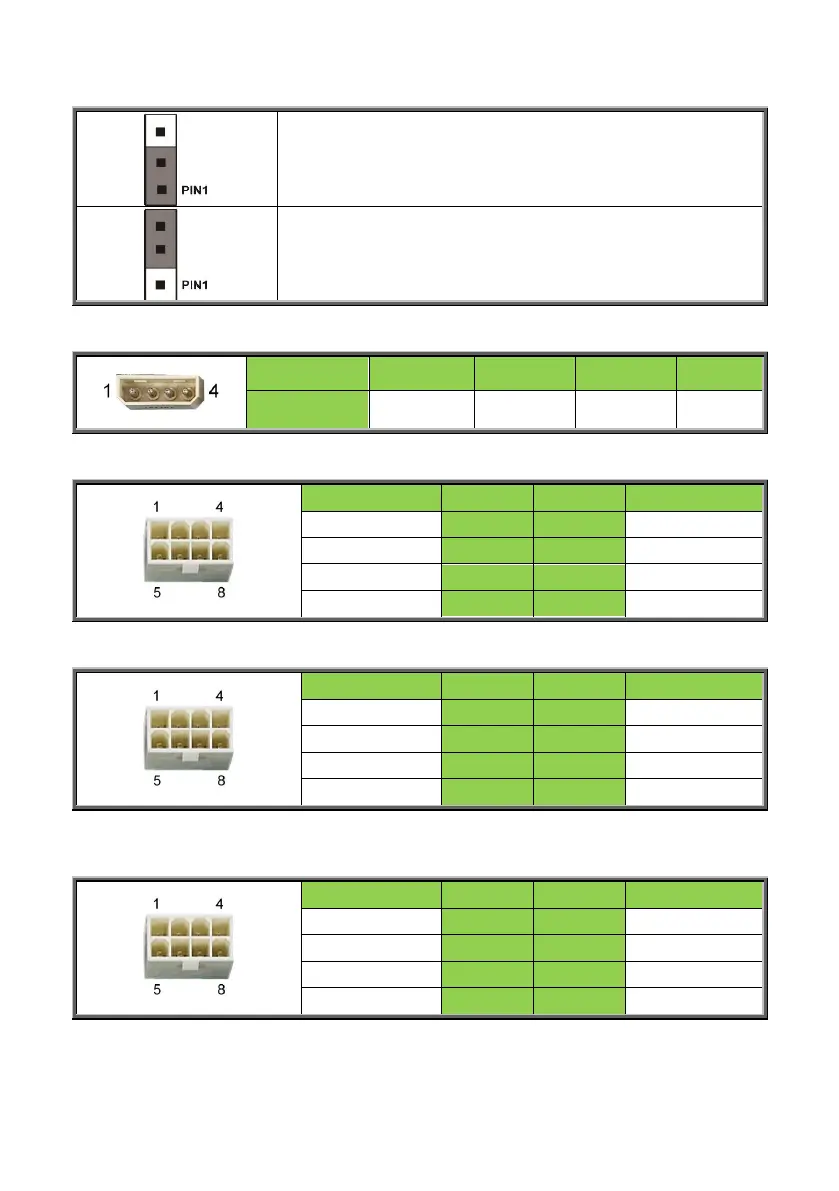

3PHD2: ME Recovery Mode Jumper
Pin 1-2 Closed: Normal (Default)
Pin 2-3 Closed: ME Recovery Mode
D4P_PW1 / D4P_PW2 / D4P_PW3: 4-pin Power Connector to HDD BP
Pin
1
2
3
4
Signal
P12V_IN
GND
GND
VCC5
PE_PW7: 8-pin Power Connector to HDD BP
Signal
Pin
Pin
Signal
GND
1
5
P12V_IN
GND
2
6
P12V_IN
GND
3
7
P12V_IN
GND
4
8
P12V_IN
PE_PW6/PE_PW8/PE_PW9: 8-pin Power Connector to PCIE Board
Signal
Pin
Pin
Signal
GND
1
5
P12V_IN
GND
2
6
P12V_IN
GND
3
7
P12V_IN
GND
4
8
P12V_IN
PE_PW4 / PE_PW5 / PE_PW11 / PE_PW12 / PE_PW13 / PE_PW14 / PE_PW15 /
PE_PW16 / PE_PW17 / PE_PW18: 8-pin Power Connector to GPU Card
Signal
Pin
Pin
Signal
GND
1
5
P12V_IN
GND
2
6
P12V_IN
GND
3
7
P12V_IN
GND
4
8
P12V_IN
NOTE: The 8-pin GPU power connector can support up to 20A.
