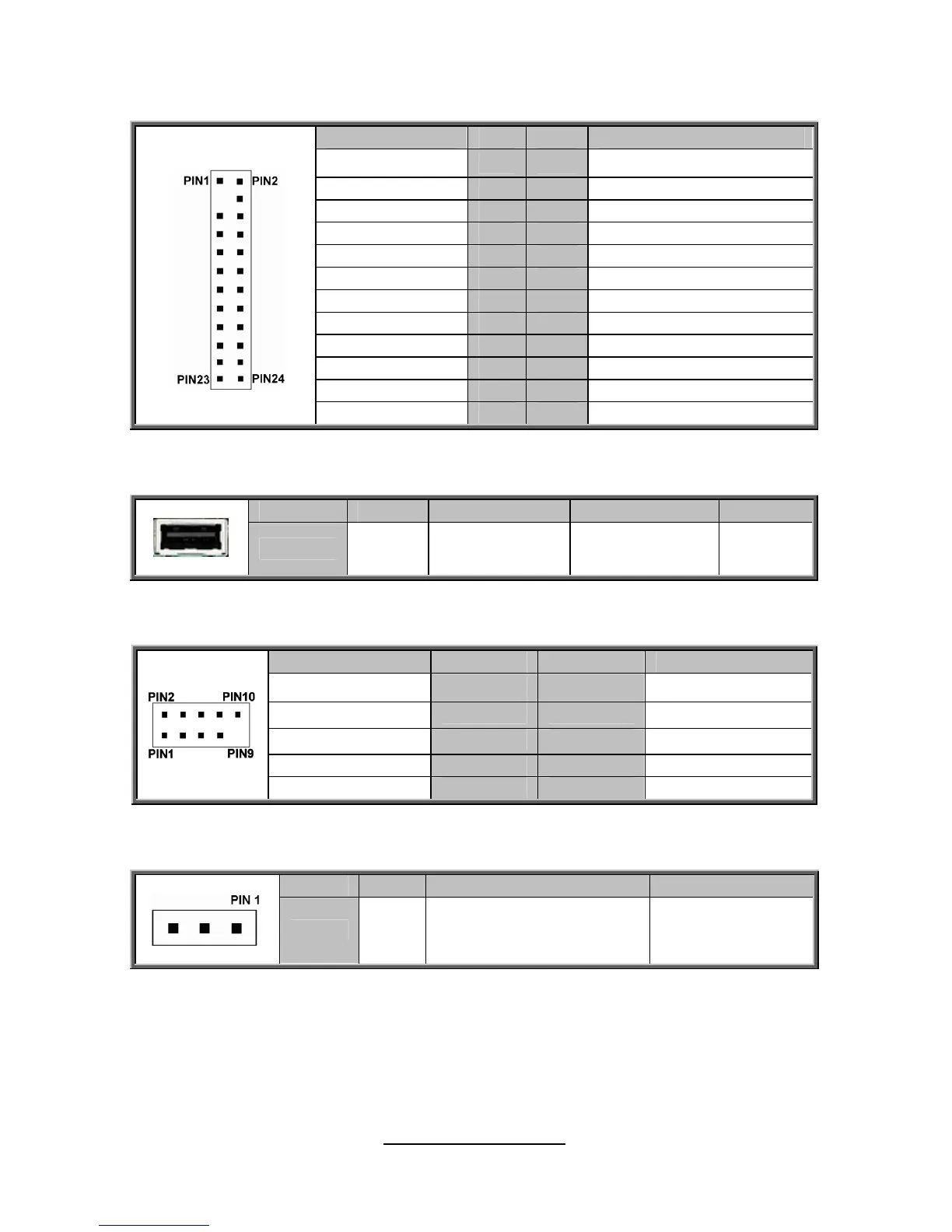

FPIO_1: Front Panel Header
Signal Pin Pin Signal
PWRLED+
1 2
FP Power (3.3V)
KEY
3 4
ID_LED+
PWRLED-(GND)
5 6
ID_LED-(GND)
HD_LED+
7 8
Fault LED1-
HD_LED-
9 10
Fault LED2-
Power Switch+
11 12
LAN1_ACTIVE_LED+
GND
13 14
LAN1_ACTIVE_LED-
Reset Switch+
15 16
SMB_DATA
GND
17 18
SMB_CLK
ID Switch+
19 20
INTRUSION#
GND
21 22
LAN2_ACTIVE_LED+
NMI Switch#
23 24
LAN2_ACTIVE_LED-
A_USB1:
Vertical TYPE-A USB From PCH
Pin 1 2 3 4
Signal
+5V USB DATA2- USB DATA2+ GND
USB1: Front USB Header
Signal Pin Pin Signal
USB 5V Power
1 2
USB 5V Power
USB DATA1-
3 4
USB DATA2-
USBDATA1+
5 6
USB DATA2+
GND
7 8
GND
KEY
9 10
NC
KEY1: PCH DYNAMIC SKUING KEY For Upgrade ROM Module
Pin 1 2 3
Signal
GND FM_SAS_SW_RAID_KEY GND
