2.9 - Attaching Drive Cables
Attaching Serial ATA Cables
S7050 is equipped with 6 Serial ATA (SATA) channels. Connections for the
drives are very simple. There is no need to set Master/Slave jumpers on SATA
drives. If you are in need of SATA/SAS cables or power adapters please contact
your place of purchase.

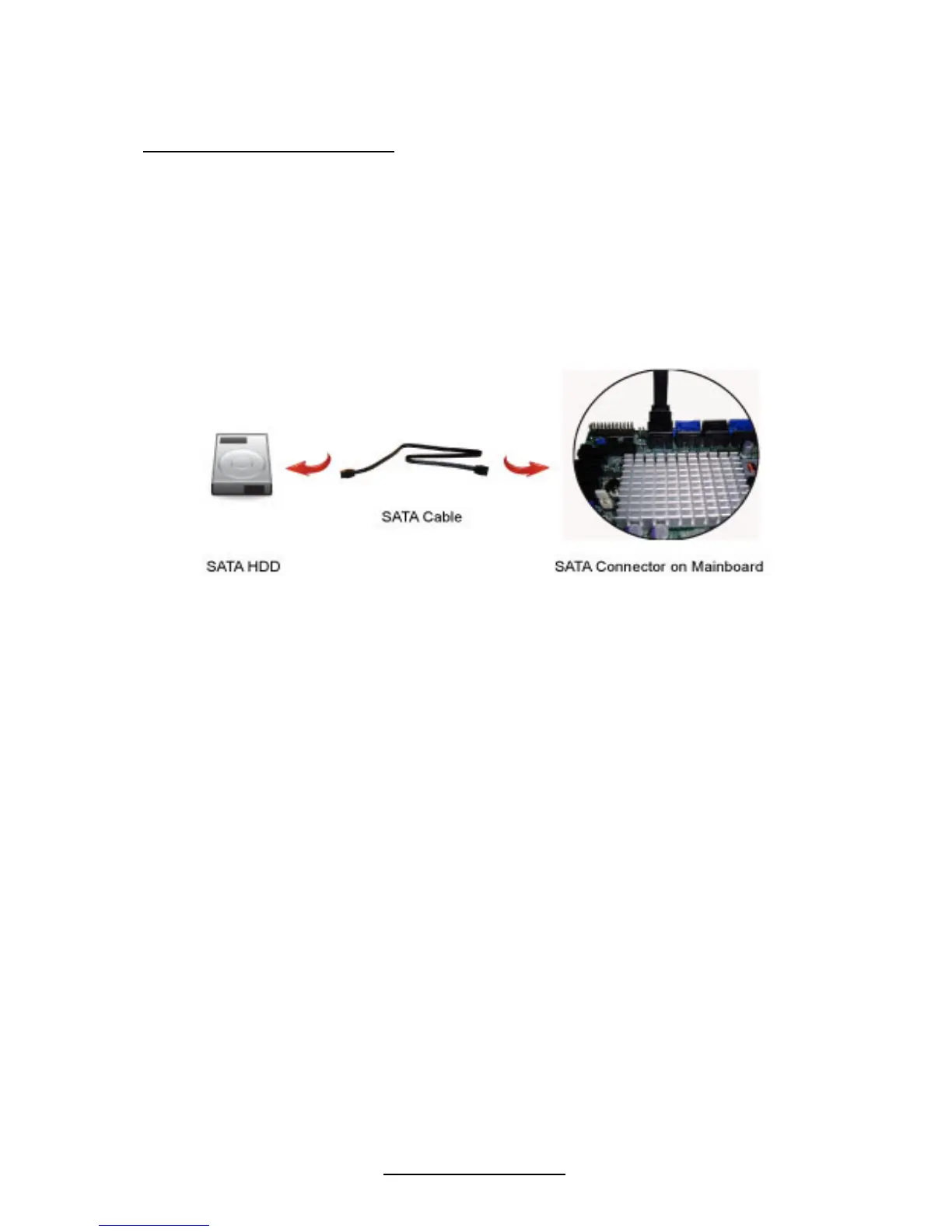

The following pictures illustrate how to connect an SATA drive
