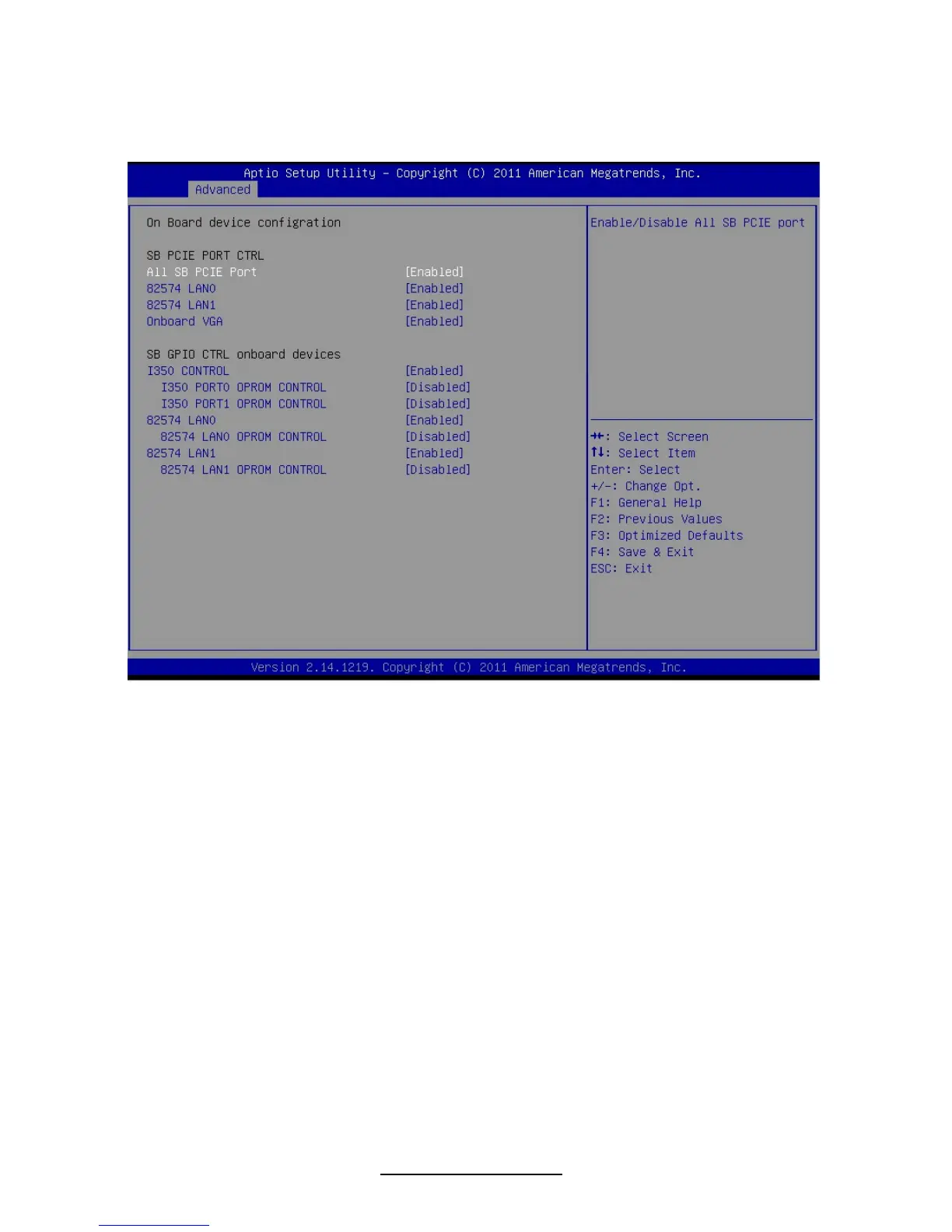

3.6.4 Onboard Device Configuration
All SB PCIE Port
Enable/Disable All SB PCIE port
[Disabled]/[Enabled]
Default is [Enabled]
82574 LAN0
Enable/Disable 82574 LAN0 PCIE port
[Disabled]/[Enabled]
Default is [Enabled]
82574 LAN1
Enable/Disable 82574 LAN1 PCIE port
[Disabled]/[Enabled]
Default is [Enabled]
Onboard VGA
Enabled/Disabled the VGA in the Chipset.
[Enabled]/[Disabled]
Default is [Enabled]
