TYAN S7050 - 2 PHD_1: INTRUDER Header; 2 PHD_2: Powerville LED Pin Header; 2 PHD_3: Powerville LED Pin Header; 2 PHD_4: ID LED Pin Header

http://www.TYAN.com
31

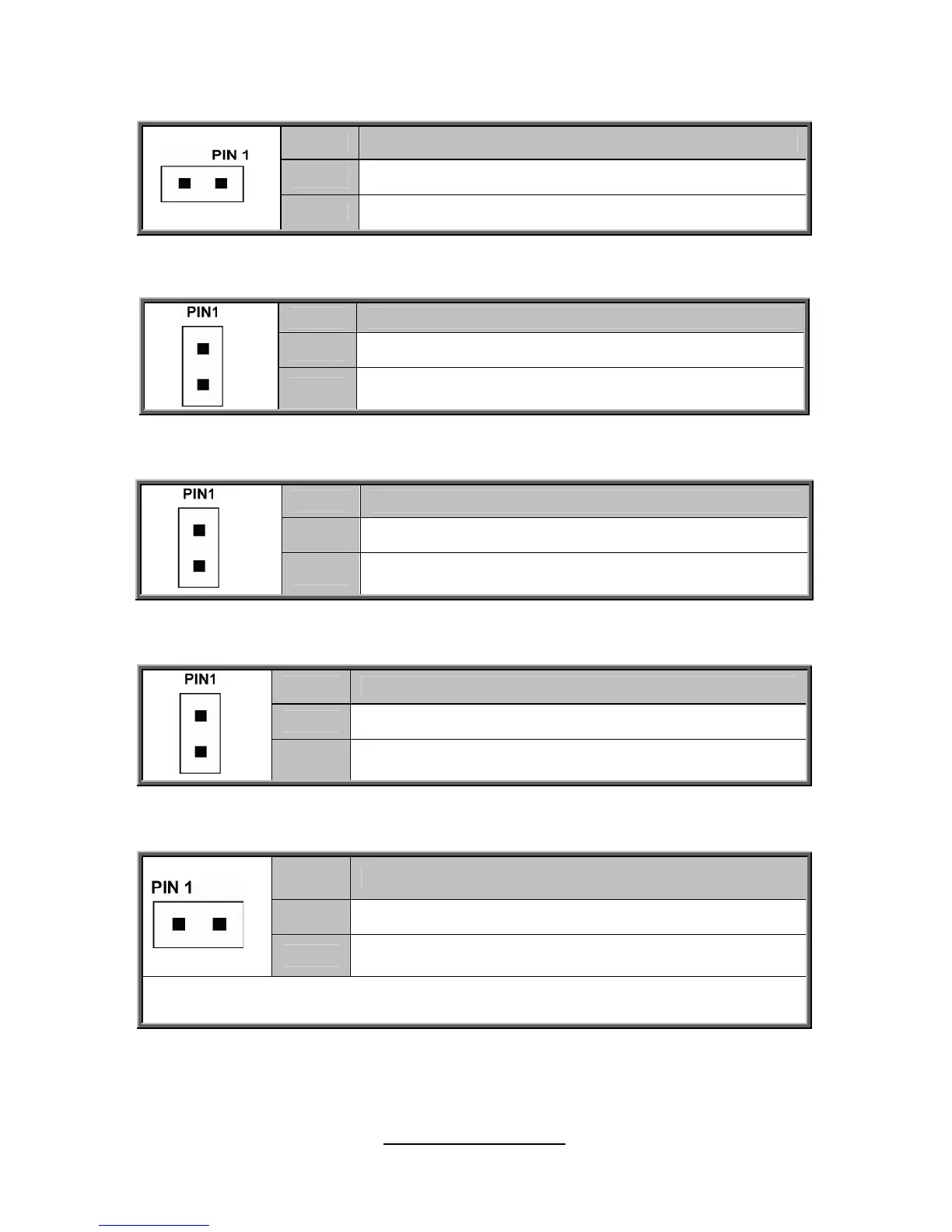

2PHD_1: INTRUDER Header
Pin Signal
1
PCH_INTRUDER_N
2
GND
2PHD_2: Powerville LED Pin Header
Pin Signal
1
HD_LAN0_ACT_N
2
PV_LAN0_LINKUP_N
2PHD_3: Powerville LED Pin Header
Pin Signal
1
HD_LAN1_ACT_N
2
PV_LAN1_LINKUP_N
2PHD_4: ID LED Pin Header
Pin Signal
1
FP_IDLED_BTN_N
2
GND
2PHD_5: BMC RST Header
Pin Signal
1
BMC_RST#
2
GND
NOTE： Open (Default)
Use this header to RESET BMC
