2.7 - Tips on Installing Motherboard in Chassis
Before installing your motherboard, make sure your chassis has the necessary
motherboard support studs installed. These studs are usually metal and are
gold in color. Usually, the chassis manufacturer will pre-install the support
studs.
Screw holes
If you are unsure of stud placement, simply lay the motherboard inside the
chassis and align the screw holes of the motherboard to the studs inside the
case.

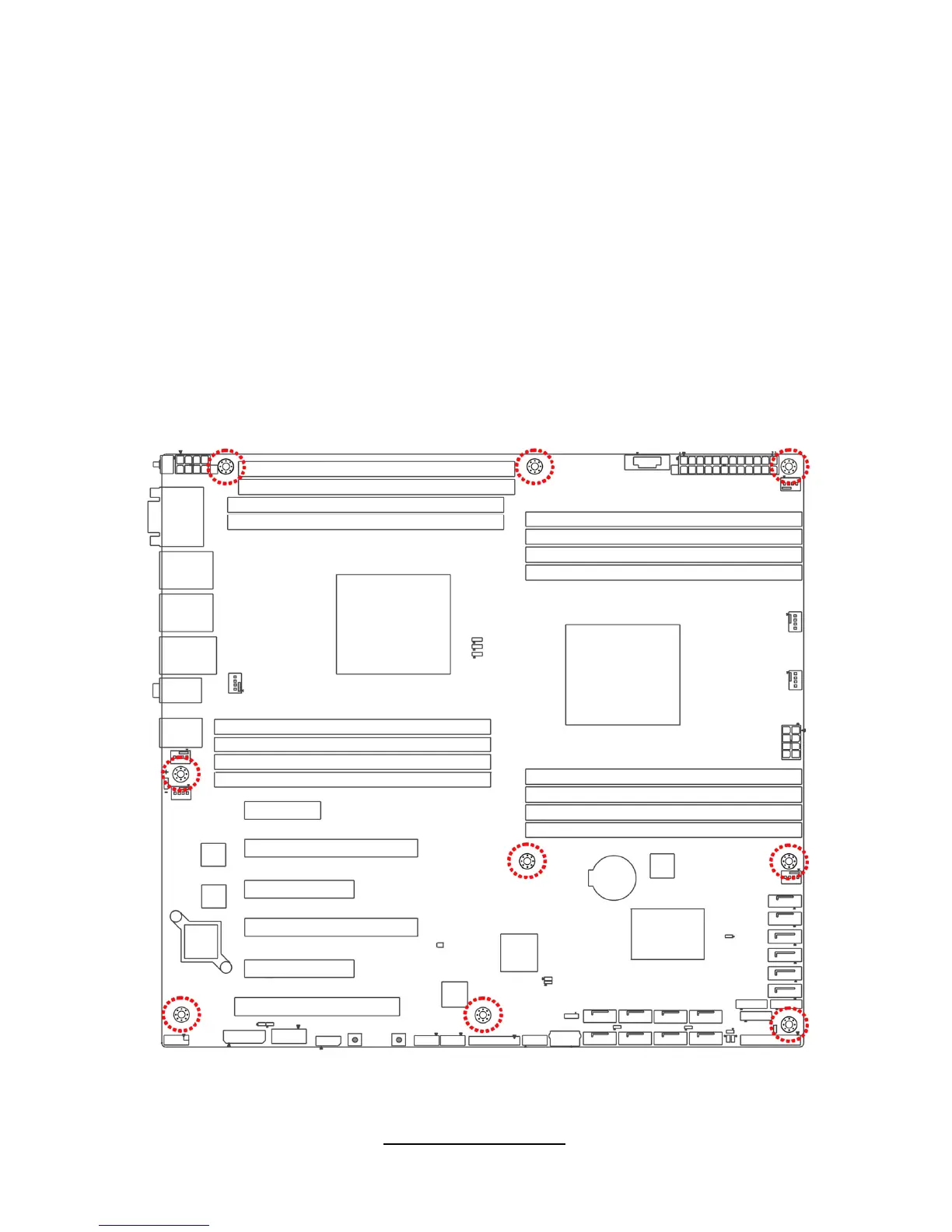

Place 9 screws into the holes indicated by circles to secure the mother board to
the chassis.
CAUTION：DO NOT overtighten the screws! Doing so can damage the
motherboard.
