4.5 Using the Operation Config Option
The Operation Config screen displays general information on the device’s active
operational capabilities.
To view operation configuration information:
1. Click Modem from the main menu.

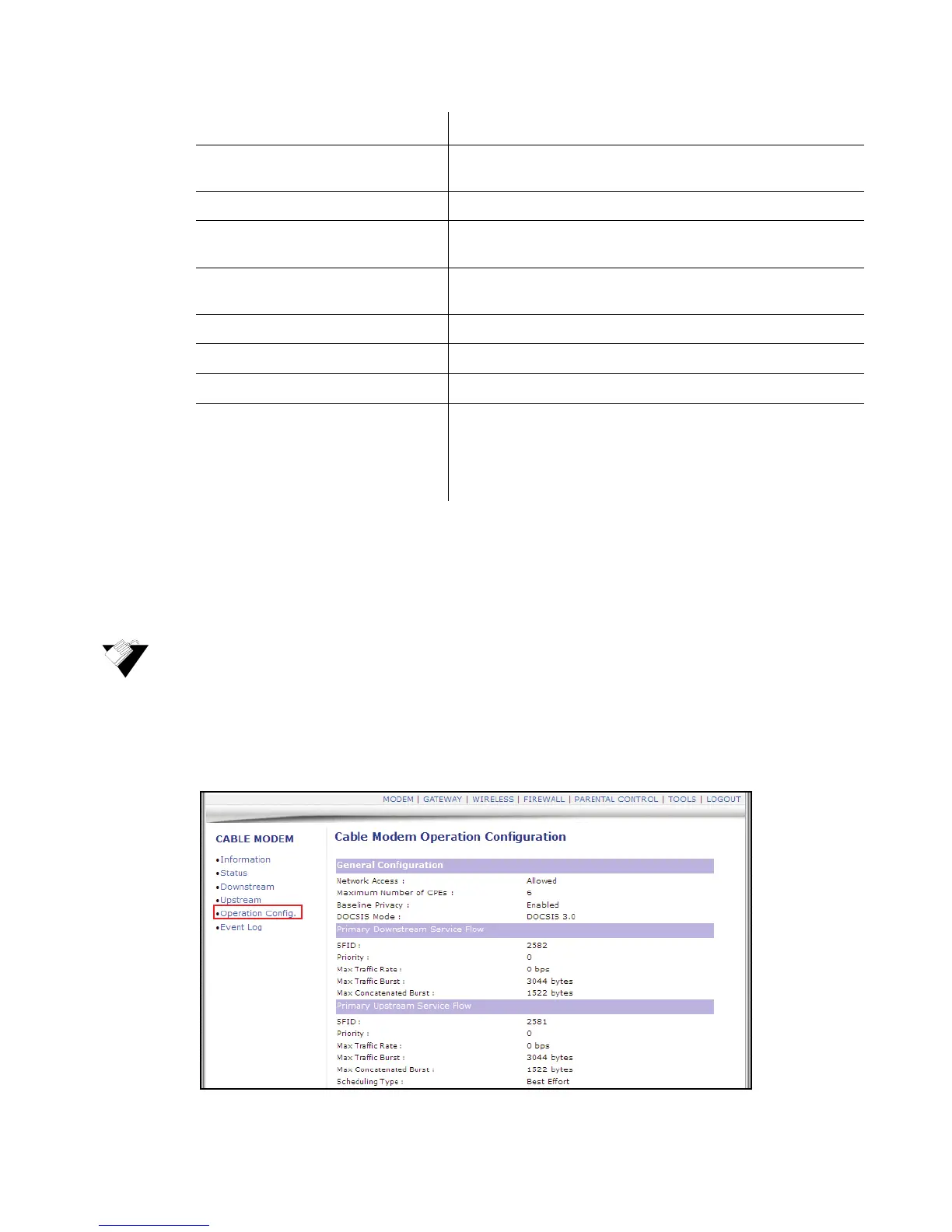

2. Click Operation Config from the left side menu. Field descriptions are listed below
the following screen example.
Modulation Displays the current cable modem upstream modulation type
(QPSK/ QAM8 /QAM16/ QAM32/ QAM64/ QAM128/ QAM256).
Symbol Rate (Ksym/sec) Displays the symbol rate.
Upstream Mini-Slot Size Displays the current cable modem upstream mini-slot size in
Timebase Ticks of 6.25.
Power Level (dBmV) Displays the current cable modem upstream transmit power in
decibel millivolts.
T-1 Indicates a valid UCD was not received.
T-2 Indicates a ranging maintenance broadcast was not received.
T-3 Displays range response (RNG-RSP) time expiration.
T-4 Displays range (RNG) time expiration.
Double-digit T3 and T4 values could indicate a bonding,
provisioning, or other such issue that results in a continual
reboot.
