1.2.2.4. Control Box Networking

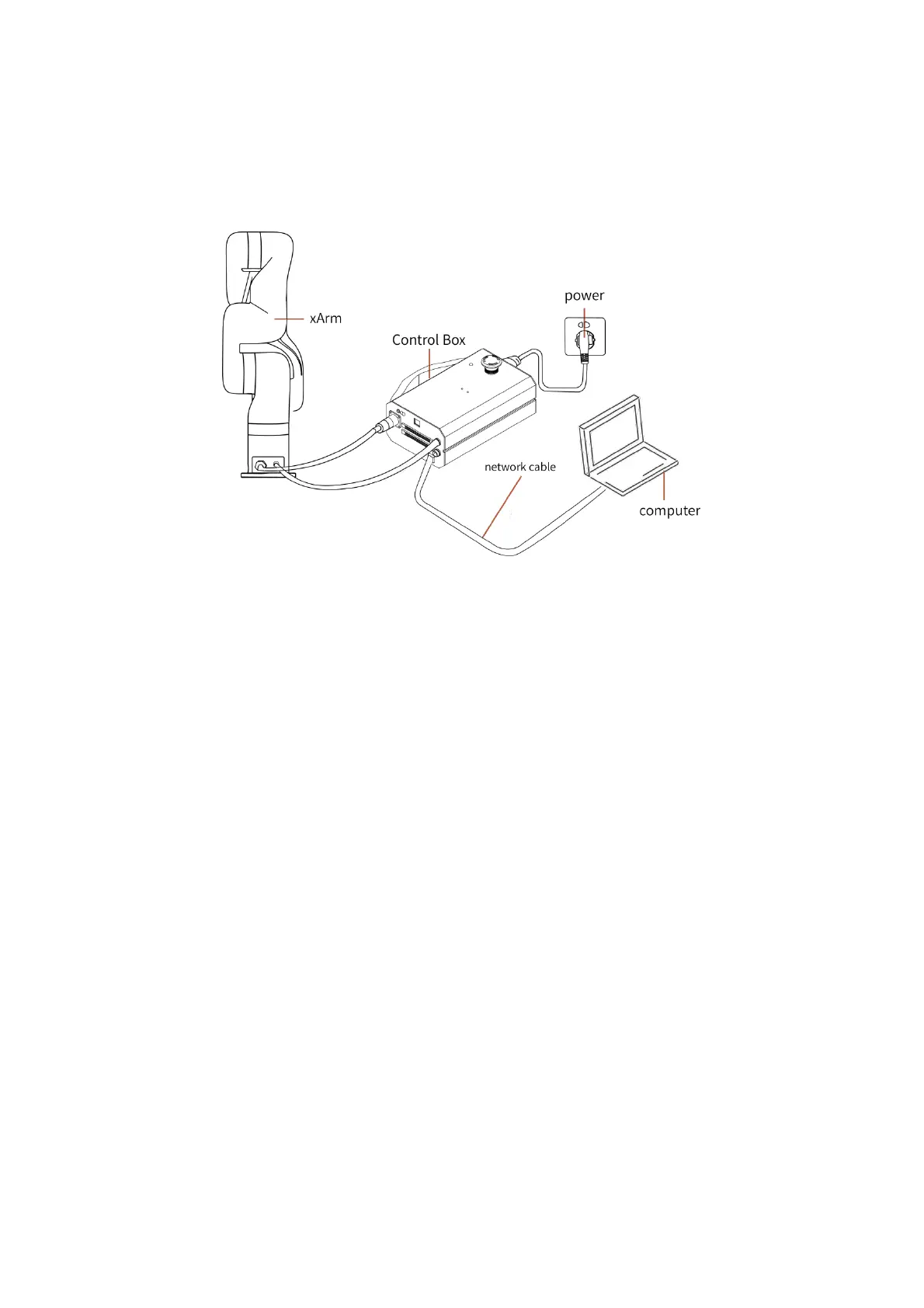

Plug the Network Cable into the interface marked LAN on the Control Box, and plug
the other end of the Network Cable into the computer.
1.2.2.5. End-effector Installation
The End-effector flange has fourteen M6 threaded holes and one Ф5 positioning hole,
where the end-effector of two different sizes can be mounted. If the effector does not
have a positioning hole, the orientation of the end-effector must be documented in a
file format, to avoid errors and unexpected results when re-installing the end-effector.
The end-effector flange referenced the DIN ISO 9409-1-A50/A63 standard.
