UNI-T UTD1025CL User Manual

UTD1000L User Manual
47

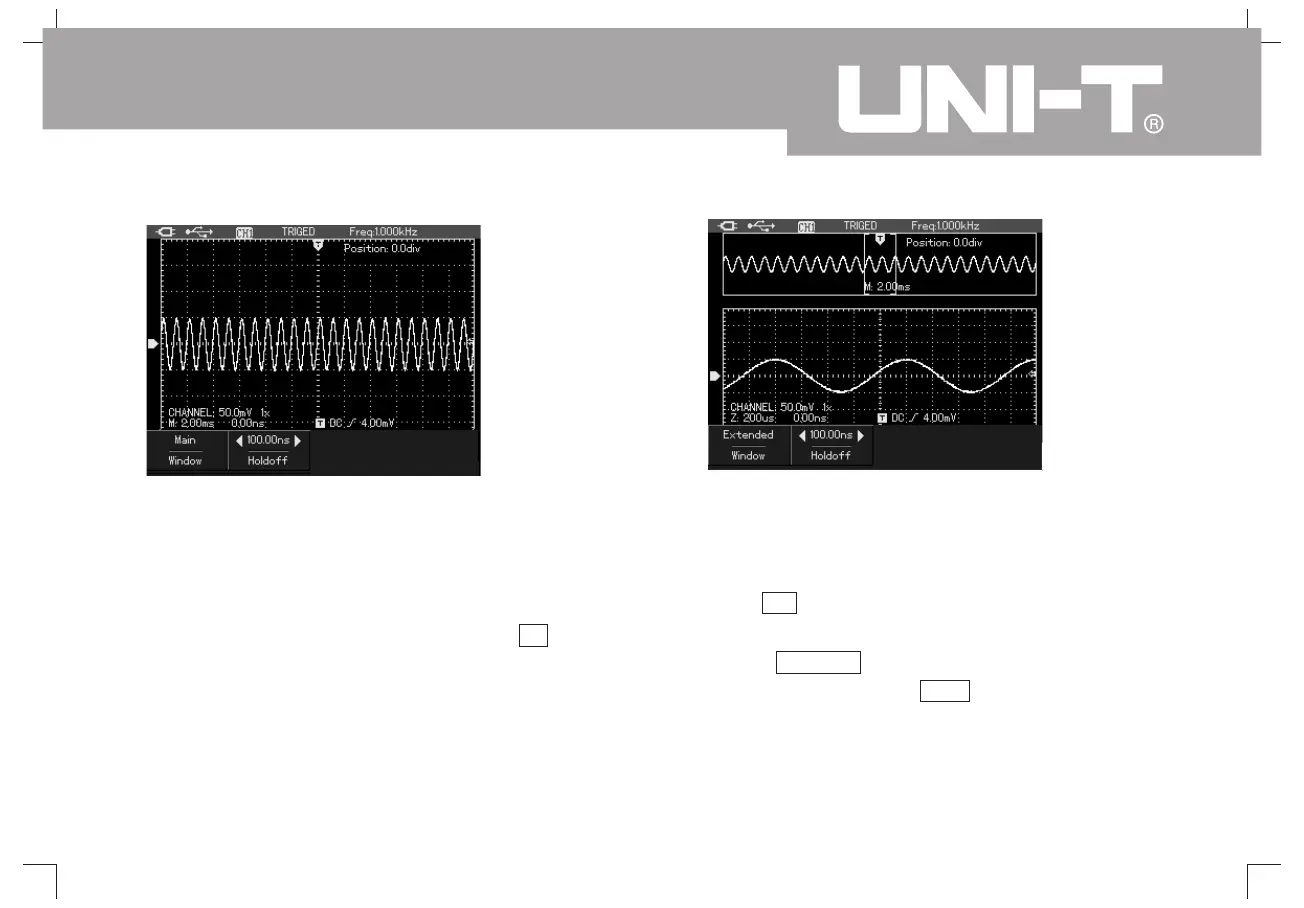

Picture 6-4 Horizontal Setting Menu
There are two function options in the horizontal
setting menu: window extension and trigger
holdoff.
In the horizontal setting menu, press key F1 to
open window extension function to amplify a sector
of waveform, checking the picture details. Window
extension setting shall not be slower than the main
time base setting.
Picture 6-5 Screen Display after Window Extension
Two display sector in the window extension
function as shown in the above picture The upper
part displays the original waveform after pressing
the key OK to hide menu the sector could be
used to shift horizontal extension part left right by
adjusting right left key and increase or reduce the
selectionareabythekeys~ns
The lower half part is the waveform after horizontal
extension of the selected original sector. It is
noteworthy that resolution of the extension time
Window Extension Function
,.
,
,
/
/
.
base
