UNI-T UTD1025CL User Manual
5
of 1
of 1 rating
101 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
UTD1000L
User
Manual

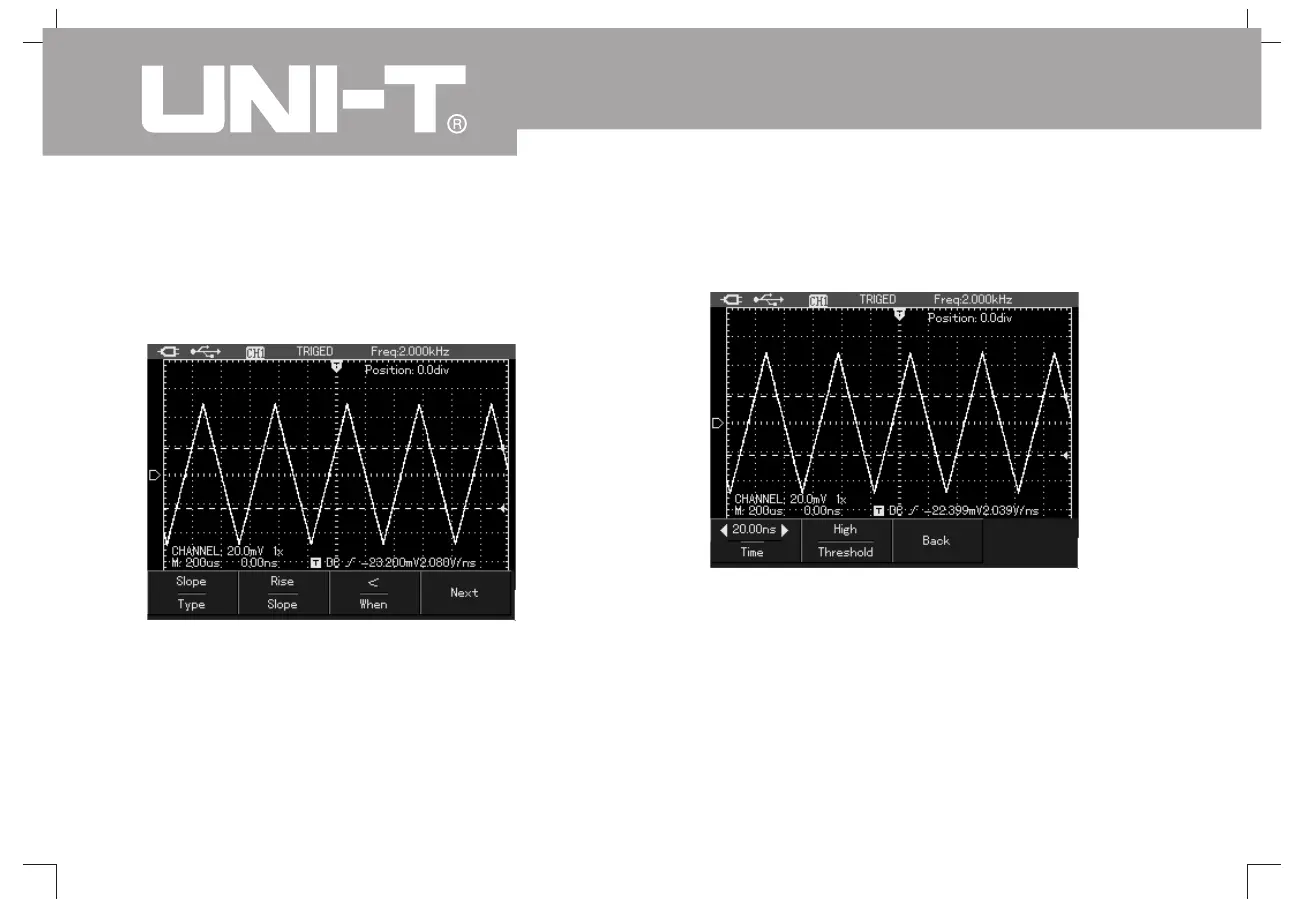

54
Slope
T
rigger
Select
slope
trigger
,
and
produce
trigger
when
signal
rising
or
falling
velocity
meets
set
value
conditions.
6-12
the
First
Page
of
T
rigger-Slope
T
rigger
6-13
the
Second
Page
of
T
rigger-Slope
T
rigger
59
61
Table of Contents
Table of Contents
2
Chapteri Safety Information
7
General Safety Overview
8
Chapte II Brief Instroduction of the UTD1025CL Portable Digital Storage Oscilloscope
10
UTD1025CL Oscilloscope Components
11
Features of UTD1025CL Oscilloscope
11
Chapter III Oscilloscope Connection
12
How to Conduct General Check
12
Check if any Damage Resulted by Transportation
12
Check Accessory
12
Check the Complete Apparatus
13
Oscilloscope Connection
13
Compensation Signal Output Connection of the Apparatus
14
Oscilloscope Panels and Keys
14
Connect Appatatus to the Electricity Power
18
Interface Instruction
18
Chapter IV Primary Application of Oscilloscope
18
Reset Oscilloscope
20
Operation Methods for Function Menu
20
Menu Hiding
21
Oscilloscope Switch-In Probe Compensation Signal
21
Probe Compensation
22
Munual Set Vertical System Horizontal System and Trigger Level
23
Horizontal System
24
Trigger Level
24
Automatic Setting of Waveform Display
25
Stop/Restore Data Collection
27
Trigger Frequency Count Setting
27
Screen Brightness Adjustment
28
Store Bitmap
29
Online Help
29
Set Single Trigger
29
Check Oscilloscope Status
30
Check Oscilloscope System Information
31
Automatic Parameter Measurement
31
Customization Parameter Measurement
32
Smooth Waveform by Average Treatment
33
Display Spike Pulse by the Peak Value Test Function
34
Use Persistence to Show Waveform
34
Select AC Coupling
35
Reverse Polarity of the Displayed Waveform
35
Automatic Setting for Small Signal with DC Bias
36
Chapterv Use Multimeter
38
Connect Apparatus
38
Interface Indication Instruction
38
Multimeter Measurement
39
Measure Resistance Value
39
Measure Diode
40
Continuity Test
40
Measure Capacitance
41
Measure DC Voltage
42
Measure AC Voltage
42
Measure DC Current
43
Measure AC Current
45
Hold Measurement Value
47
Relative Measurement
47
Select Automatic/Manual Range Adjustment
48
Chapter VI Details about Using Oscilloscope
49
Vertical System Setting
49
Horizontal Sysmem Setting
52
Trigger System Setting
55
Collection Mode Setting
63
Display Set
64
Parameter Measurement Setting
66
Storage and Record
71
Record Function
71
Storage Function
74
Callback Function
75
Cursor Measurement
77
Interface Set
79
Auxiliary Function Set
80
Mathematic Operation Function
81
Automatic Set
84
Chapter VII Troubleshooting
85
Chater VIII Service and Support
87
Product Program Upgradation
87
Preparations before Upgradation
87
Program Upgradation Conditions
87
Program Upgradation
87
Chapter IX Appendix
90
Appendix A Performance Index
90
Appendix B Maintenance and Cleaning
98
