Note for coiners versions:
- The machine must be configured in self mode (bridges JP1 et CN7 )
- The pins 2 and 3 of connector CN5 of the interface card keyboard Ref.45325 must be bridged.
For the cash computer system, see the specific document.
(16) ADJUSTMENT TURNTABLE
BRAKING SYSTEM “ ABS “
Principle:
The revolving speed of the turntable is measured during the phase just before its stop. According
to the speed measured, it will be applied automatically a corresponding delay to the braking
phase. If the turntable is fairly free (low friction, none running infusion), the speed is high and so
the braking is immediate. If the turntable revolves with a friction applied (during the infusion of
one piston for example), the speed is lower and so we apply a corresponding delay (a few
milliseconds) to the braking phase, so that the turntable does not stop too early.
Possibility to change the factory setting:
If the factory setting is not correct and you see that the turntable does not stop at the right
position, you can act on this setting by changing the value of the parameter ABS located in a new
menu called TURNTABLE SETTING.
The parameter ABS is usually factory adjusted : ABS = 00
- If in spite of the new electronic braking system, you see the turntable stops over the correct
position, you can reduce gradually the ABS value to (-100) maximum. If the turntable stops
before the correct position, you can increase in the same way the ABS value to (+100) till the
positioning is correct.
Note that the value (-100) neutralises the braking automatic control and apply an instantaneous
braking without taking into account the speed of the turntable, as on the previous software
versions.
C – 11

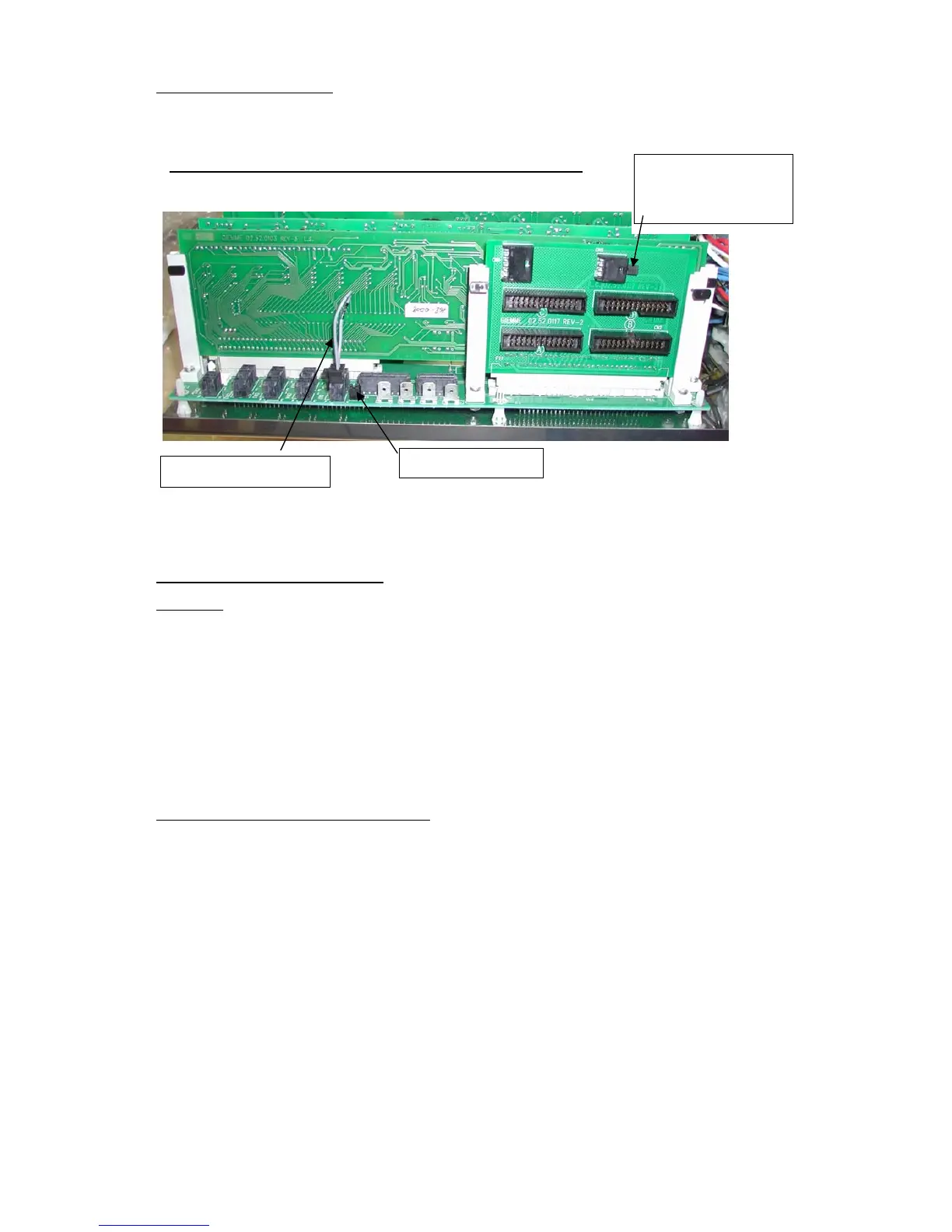

CN-7 (réf : FR 8036)
JP1 (réf :CN 694)
BRIDGE ON CN5
(réf :CN 694)
