26
OPERATING CONTROLS AND FUNCTIONS

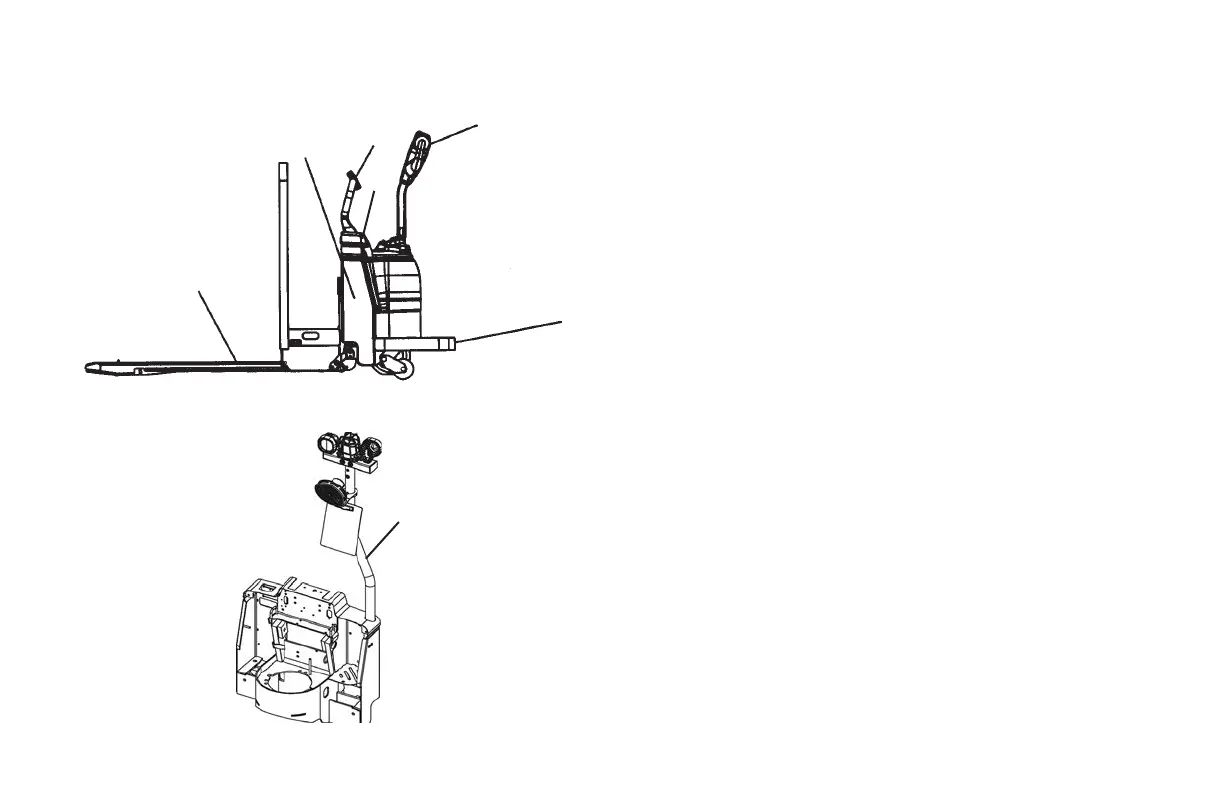

MAIN COMPONENTS
A. Steerhead and Tiller Assembly: This assembly controls the
steering and speed.
B. High Speed Handle - 2W2 Only: Primarily used for a hand
hold for the operator to grasp while operating the unit from the
operator's platform.
C. Ignition Switch and Meter Panel: Location of ignition switch,
standard MDI and optional multi-function LCD display.
D. Operator's Platform - 2W2 Only: Provides a stable platform for
the operator to operate the unit in rider mode.
E. Load Carrying Mechanism: Used to carry rated loads not
people. Includes backrest, forks and load wheels.
F. Power Head Frame: Houses the transmission, motor and
electronics.
G. Accessory Pole Option - 2W2 Only: Used to attach accessory
work options.
G
A
B
C
F
D
E
