- 45 -
a
d
c
b
7.5 Installing the Outdoor Unit
• Make sure to leave sufficient space around the unit. See figure 7-4 for minimum
required distance between the unit and nearby walls.
• Install the unit in a location with convenient access for service and maintenance
purposes.
• Protect the unit from any heat source.
• Prevent from any dust or strong wind installation sites.
• Position the unit in such a way to minimize motor noise which reaches the user and
neighbors.
• The unit must be installed at least 5 cm. above a solid surface.
• Make sure that the unit is level.
• Fasten the unit legs to the base. Place the rubber absorbtion cushions (supplied) under
the unit's legs to prevent vibrations.
• For all models, hanging installation is allowed. Install only on special properly
designed platform or concrete slab.
• A drainage tube can be connected to the outdoor unit to remove condensation formed
during heating mode operation.

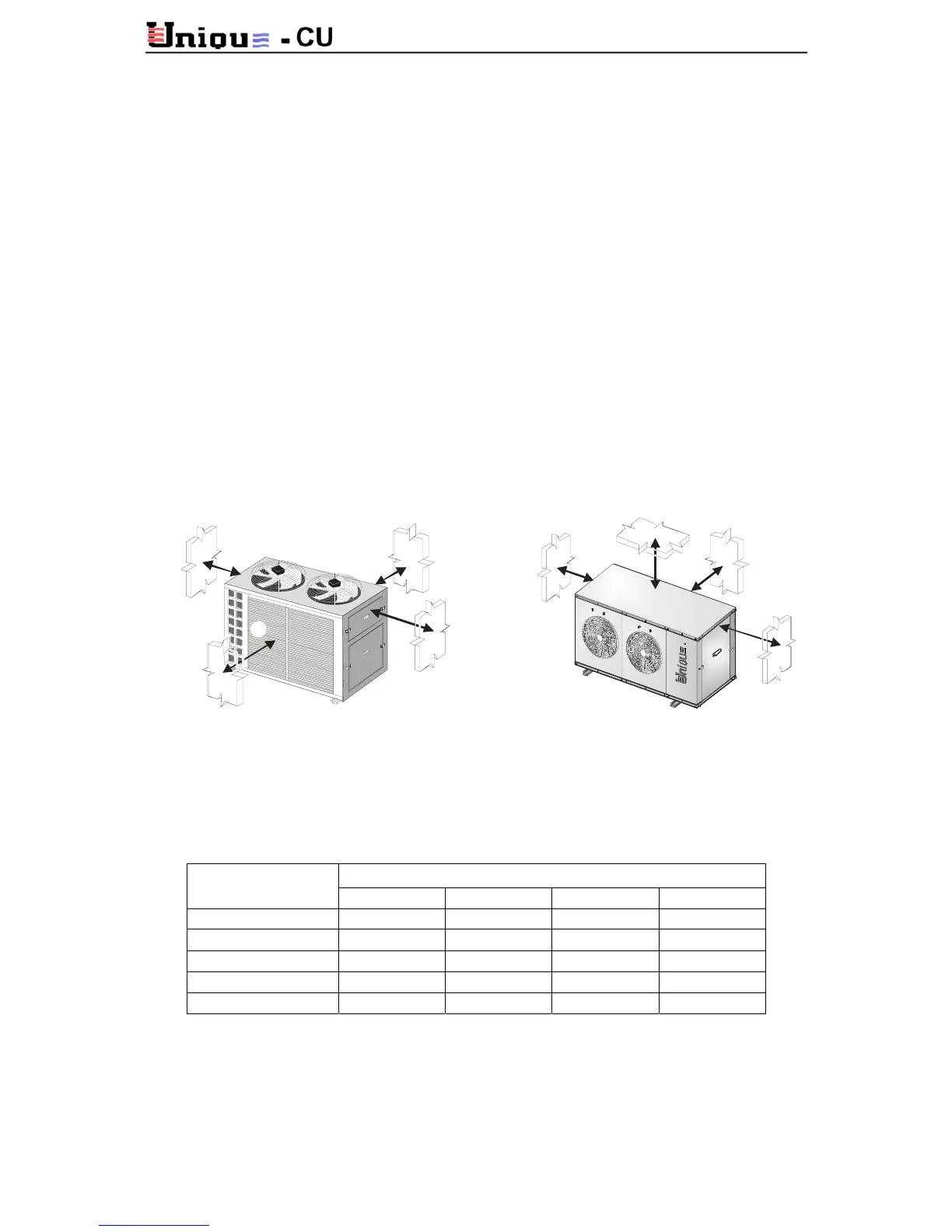

Fig. 7-4
Minimum Distance
Model
a mm b mm c mm d mm
CU150-CU350 500 500 250 500
CU400-CU450 500 500 250 500
CU480-CU500 500 500 250 600
CU600-CU800 500 800 300 700
CU1000-CU1400 700 800 500 700
a
d
b
c
