Unique CU Series - Wiring the Outdoor Unit

- 56 -
N
L
1
L
2
L
3
T
2
T
2
C
R
V
F
1

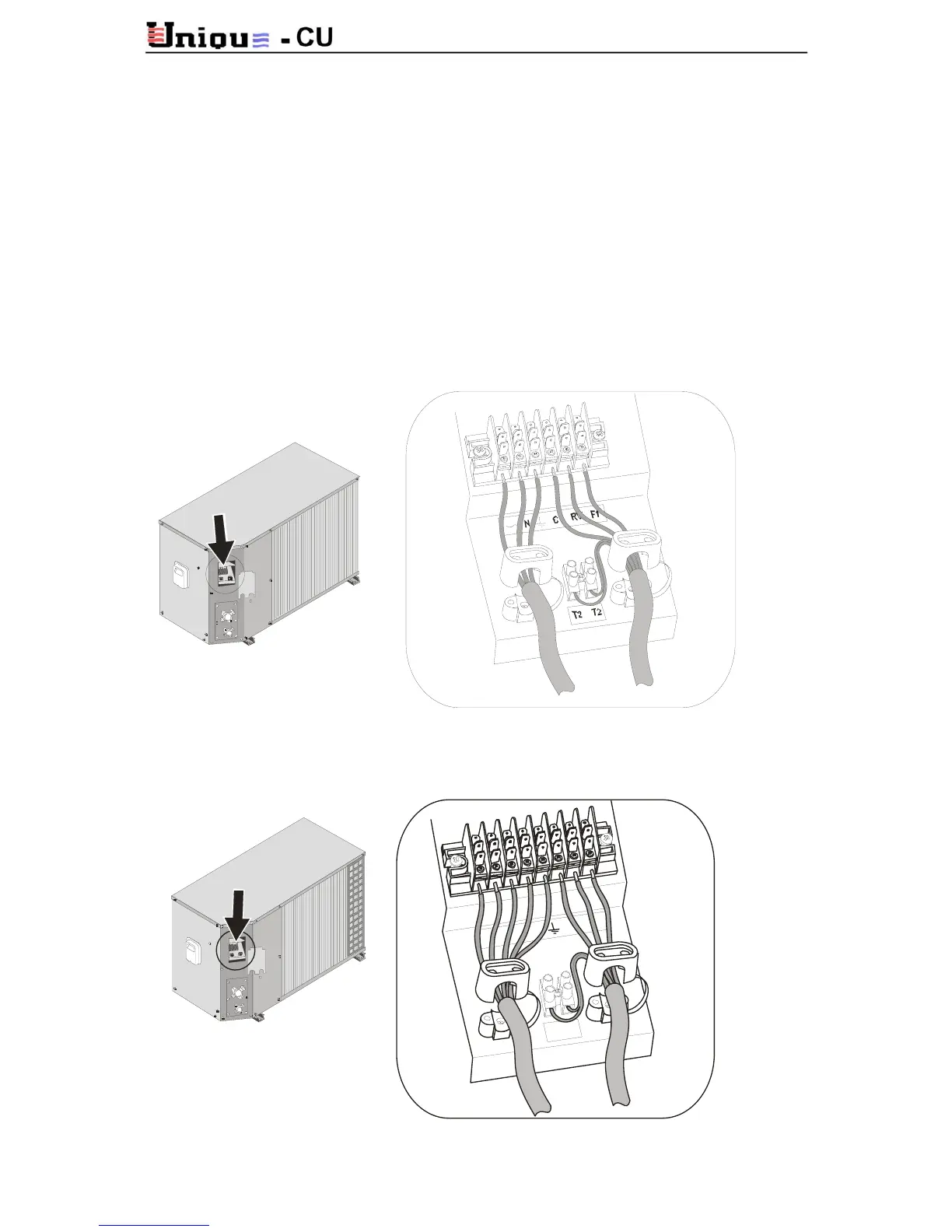

8.5 Wiring the Outdoor Unit
• Locate the terminal box cover according to the following figures.
• Remove the outdoor unit side cover.
• Connect the wires to the terminals, in accordance with the color coding and the
suitable wiring diagrams.
• Connect the outdoor sensor cable, making sure the connector is properly inserted.
• Secure the inter-unit electrical cable to the outdoor unit using the clamps.
• Make sure that all screws and wires are properly fastened. Loose wires or connections
can cause damage and present a fire hazard!
• Reassemble the side cover.
8.5.1 Outdoor Unit Terminal Box CUC-150…400-1
8.5.2 Outdoor Unit Terminal Box CUC-150…500-3
