Uponor Smatrix Base Slave Module M-140
The slave module adds six channels and actuator
outputs to an existing Uponor Smatrix Base controller.
Main characteristics:
• Easy plug in installation on existing controller, no
additional wiring needed.
• Register up to six extra thermostats to the system.
• Connect up to six extra actuators (24 V).
• Electronic control of actuators.
• Valve exercise.
NOTE!
Only one slave module extension is supported
per controller.

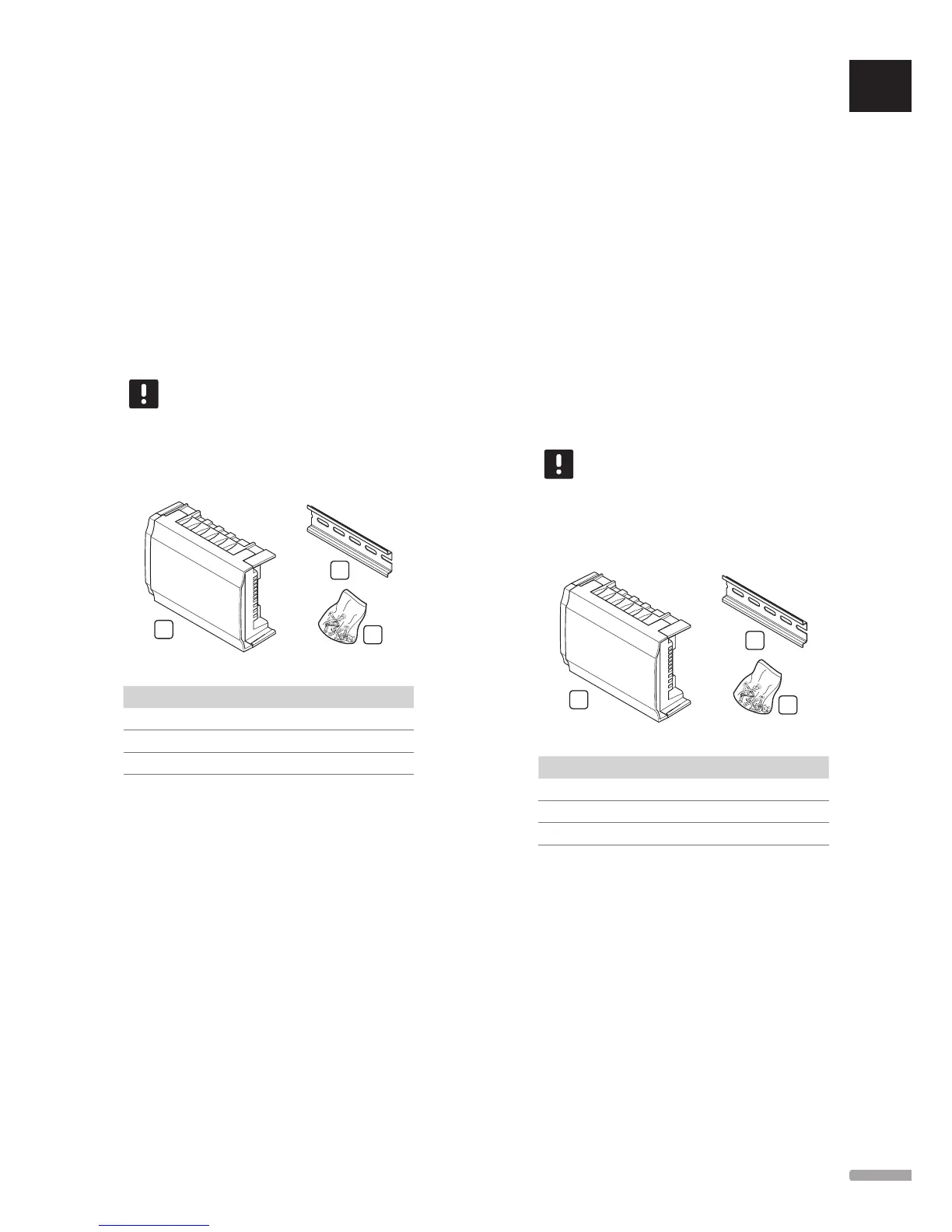

Components of the slave module:
The illustration below shows the slave module and its
components.
A
B
C
Item Description
A Uponor Smatrix Base Slave Module M-140
B DIN rail
C Mounting material
star mo dule
Uponor Smatrix Base Star Module M-141
The star module enables thermostats to be installed in
a centralized star topology instead of the standard bus
topology.
Main characteristics:
• Install the wiring from the thermostats in a
centralized star topology (instead of a bus topology)
which opens up for flexible wiring approaches.
• Requires an Uponor Smatrix Base controller.
• Adds 8 extra bus connectors to the system.
• Only thermostat input signals is allowed.
• Can be attached directly to the controller or slave
module or by using a communication cable utilising
one connector in each unit.
NOTE!
Only one star module extension is supported
per controller.
Components of the star module:
The illustration below shows the star module and its
components.
A
B
C
Item Description
A Uponor Smatrix Base Star Module M-141
B DIN rail
C Mounting material
